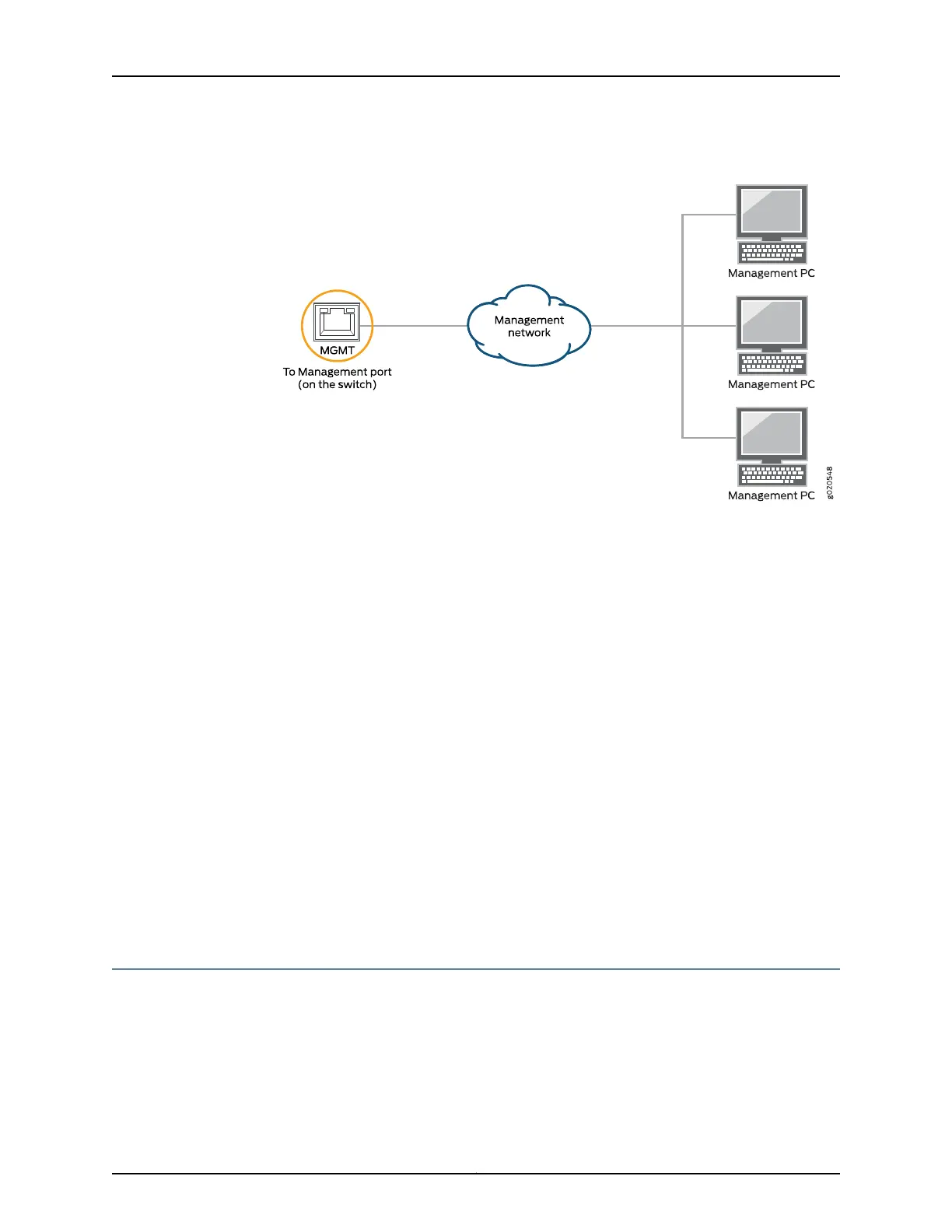

Figure 51: Connecting a Switch to a Network for Out-of-Band Management
Related
Documentation
Connecting a Switch to a Management Console on page 129
Management Port Connector Pinout Information for an EX2200 Switch on page 25
Management Port Connector Pinout Information for an EX3200 Switch
Management Port Connector Pinout Information for an EX3300 Switch
Management Port Connector Pinout Information for an EX4200 Switch
Management Port Connector Pinout Information for an EX4300 Switch
Management Port Connector Pinout Information for an EX4500 Switch
Management Port Connector Pinout Information for an EX4550 Switch
Management Port Connector Pinout Information for an EX6200 Switch
Management Port Connector Pinout Information for an EX8200 Switch
Management Port Connector Pinout Information for an XRE200 External Routing Engine
Cables Connecting the EX6200 Switch to Management Devices
Cables Connecting the EX8200 Switch to Management Devices
Management Port Connector Pinout Information for an OCX1100 Switch
Connecting a Switch to a Management Console
This topic applies to multiple hardware devices in the EX Series product family, which
includes EX Series switches and the XRE200 External Routing Engine.
This topic also applies to OCX1100 switches.
You can configure and manage these devices by using a dedicated console. Every device
has a console port with an RJ-45 connector. Use the console port to connect the device
129Copyright © 2015, Juniper Networks, Inc.
Chapter 10: Connecting the Switch
