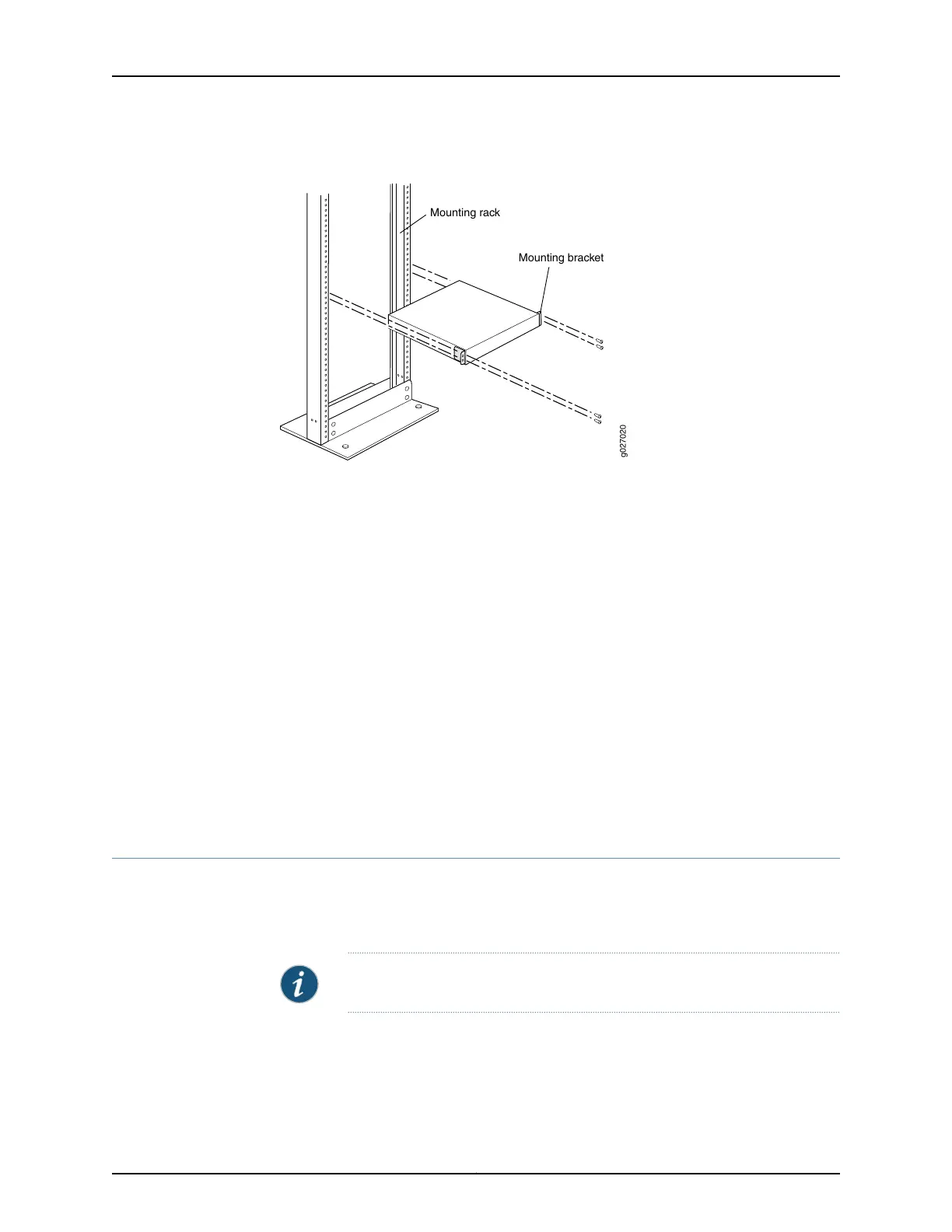

Figure 29: Mounting the Switch on Two Posts of a Rack
g027020
Mounting rack
Mounting bracket
8. Have a second person secure the switch to the rack by using the appropriate screws.
Tighten the screws.
9. Ensure that the switch chassis is level by verifying that all screws on one side of the
rack are aligned with the screws on the other side.
Related
Documentation
Mounting an EX2200 Switch on Four Posts of a Rack or Cabinet on page 98•
• Connecting Earth Ground to an EX Series Switch on page 117
• Connecting AC Power to an EX2200 Switch on page 123
• Connecting DC Power to an EX2200 Switch on page 125
• Connecting and Configuring an EX Series Switch (CLI Procedure) on page 139
• Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 142
• Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 102
• Rack-Mounting and Cabinet-Mounting Warnings on page 184
Mounting an EX2200 Switch on Four Posts of a Rack or Cabinet
You can mount an EX2200 switch except an EX2200-C switch model on four posts of
a 19-in. rack or cabinet by using the separately orderable four-post rack-mount kit. (The
remainder of this topic uses “rack” to mean “rack or cabinet.”)
NOTE: EX2200-C switches cannot be mounted on all four posts of a rack.
Copyright © 2015, Juniper Networks, Inc.98
Complete Hardware Guide for EX2200 Ethernet Switches
