Console port
Protective earthing terminal
ESD point
Air exhaust
Serial number ID label
AC power cord inlet or DC power terminals
Figure 5 on page 8 shows the rear panel of an EX2200 switch with an AC power supply.
All EX2200 switches except the EX2200-C switch model have three exhaust openings
on the rear panel. The two exhaust openings on the left have fans behind them and are
open. The exhaust opening on the right is open on Power over Ethernet (PoE) models
and closed on non-PoE models. On PoE models, this opening exhausts the air from the
fan at the air intake for the power supply on the side panel.
The power cord retainer clips extend out of the chassis by 3 in.

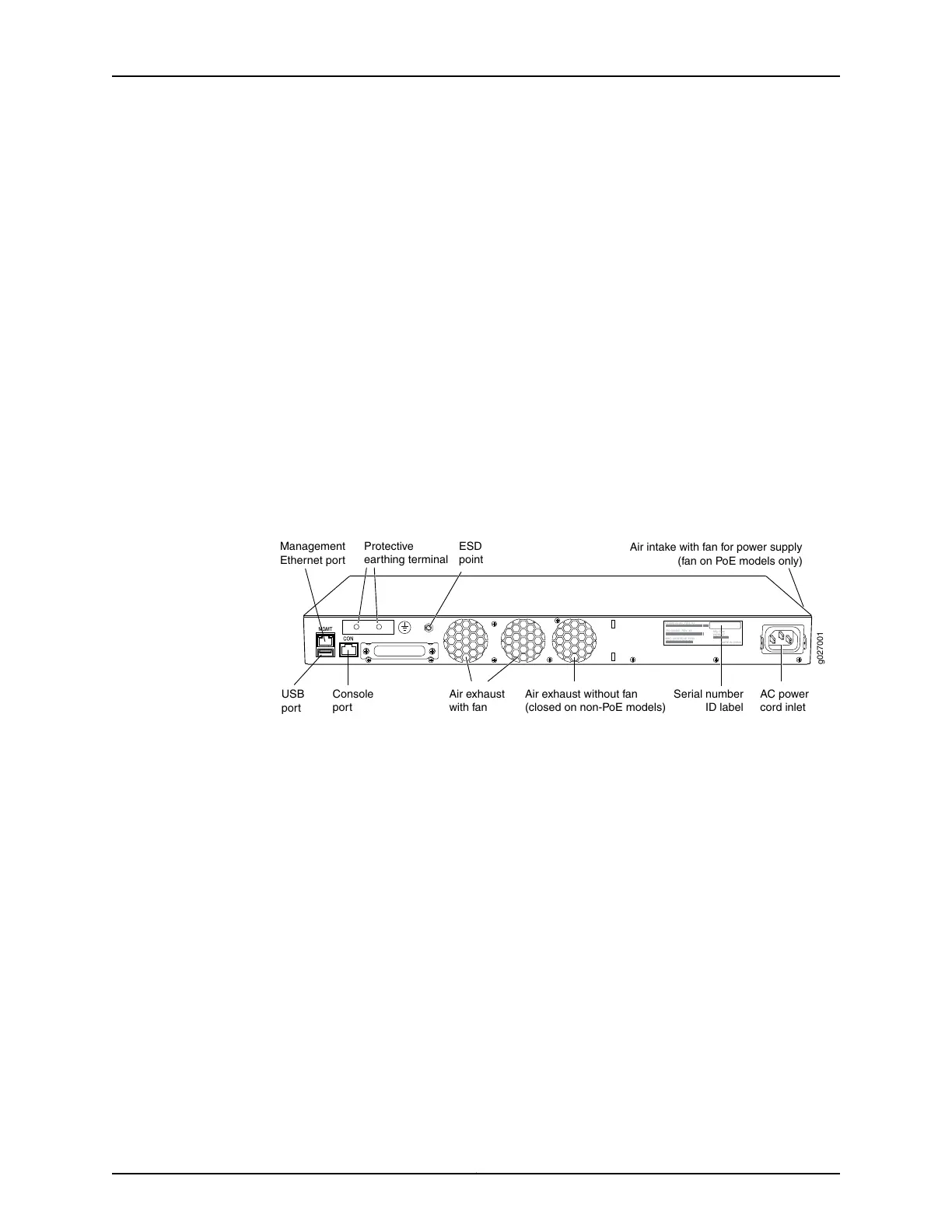

Figure 5: Rear Panel of an EX2200 Switch with AC Power Supply
g027001
USB
port
Management
Ethernet port
Console
port
Protective
earthing terminal
Air exhaust without fan
(closed on non-PoE models)
Air exhaust
with fan
AC power
cord inlet
ESD
point
EX2200-24-4G REV: X1
750-026464 REV: X3
MAC: 00:23:9C:oE:19:00
Mfg. Date
20090227
MADE IN CHINA
Serial number
ID label
Air intake with fan for power supply
(fan on PoE models only)
The rear panel of an EX2200-C switch consists of the following components:
Protective earthing terminal
ESD point
Serial number ID label
AC power cord inlet
Heatsink-only in PoE+ models
Figure 6 on page 9 shows the rear panel of an EX2200-C-12P switch with heatsink.
EX2200-C switches being fanless models have no exhaust openings. The switch has
vents on the top and on both the sides of the chassis. The PoE+ models have heatsink
installed in the rear panel to dissipate the heat, while non-PoE models have no heatsink.
Copyright © 2015, Juniper Networks, Inc.8
Complete Hardware Guide for EX2200 Ethernet Switches
