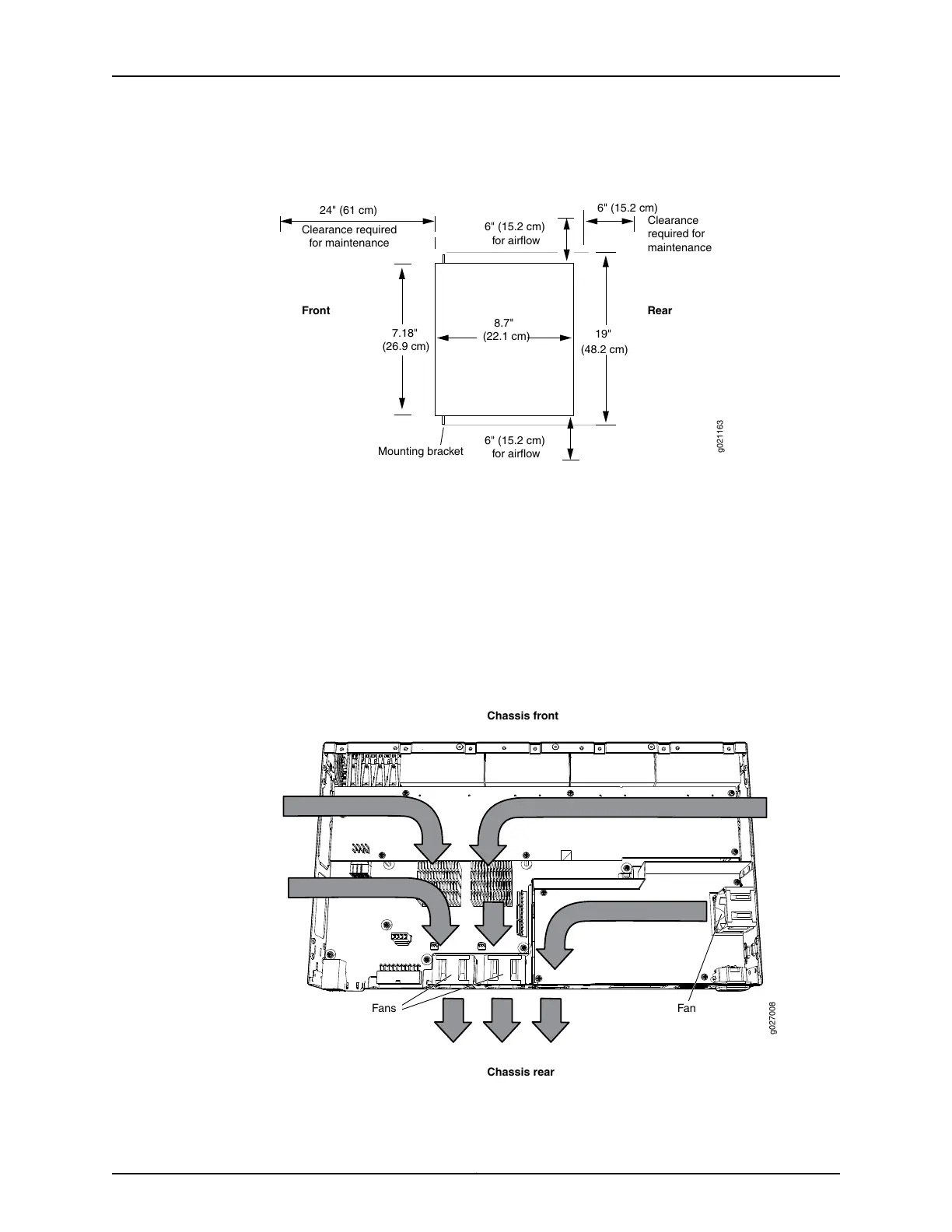

Figure 17: Clearance Requirements for Airflow and Hardware Maintenance
for EX2200-C Switch Models
g021163
Mounting bracket
6" (15.2 cm)
for airflow
RearFront
7.18"
(26.9 cm)
8.7"
(22.1 cm)
Clearance
required for
maintenance
Clearance required
for maintenance
24" (61 cm)
6" (15.2 cm)
6" (15.2 cm)
for airflow
19"
(48.2 cm)
The power cord retainer clips extend out of the rear of the chassis by 3 in.
•
Allow at least 6 in. (15.2 cm) of clearance on the side between devices that have fans
or blowers installed. Allow 2.8 in. (7 cm) between the side of the chassis and any
non-heat-producing surface such as a wall. For the coolingsystem to function properly,
the airflow around the chassis must be unrestricted.
Figure 18 on page 75 shows the airflow in PoE models of EX2200 switches, except for
EX2200-C models. Figure 19 on page 76 shows the airflow non-PoE models of EX2200
switches, except for EX2200-C models.
Figure 18: Airflow Through PoE Models of EX2200 Switches Except
EX2200-C Switch Models
g027008
Chassis rear
Chassis front
Fans Fan
75Copyright © 2015, Juniper Networks, Inc.
Chapter 5: Mounting and Clearance Requirements

Juniper EX2200 Specifications

General

Throughput	77 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Number of VLANs	1024
Networking standards	-
Switch type	Managed
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Stackable	No
Product color	Black
Power consumption (typical)	100 W
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	254 mm
Width	441 mm
Height	43 mm
Weight	3600 g
