Juniper EX2200 - Figure 41: Mounting an EX2200-C Switch Using Magnet Mount

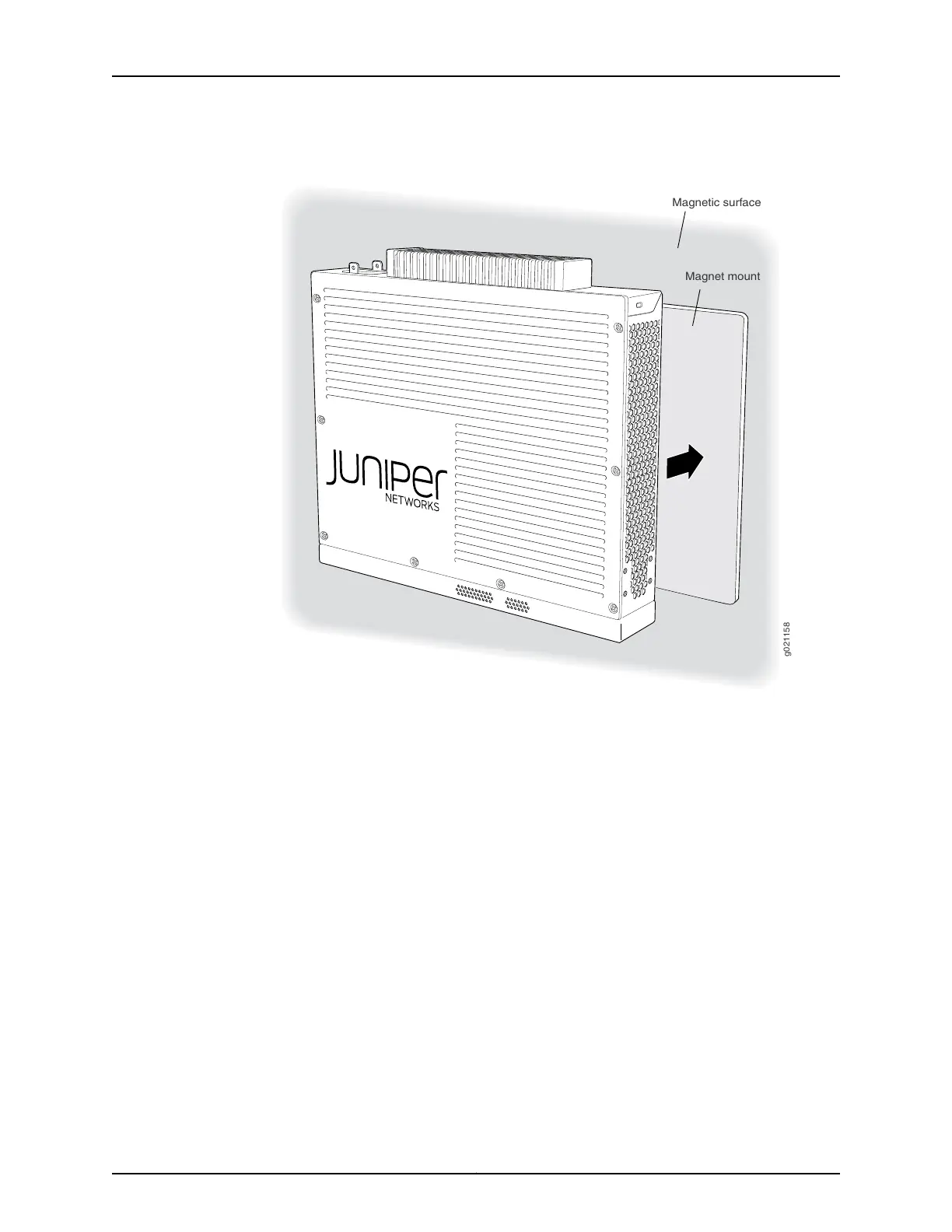

Figure 41: Mounting an EX2200-C Switch Using Magnet Mount
g021158
Magnet mount
Magnetic surface
3. (Optional) Attach the cable guard to protect cable connections:
a. Use the 3 truss-head screws toattach the cable guard to the bottom of the chassis.
b. Use the thumbscrews to tighten or loosen the guard to allow you to insert cables.
See Figure 42 on page 112.
