Ensure that you have an Ethernet cable with an RJ-45 connector available. One such
cable is provided with the device. Figure 50 on page 128 shows the RJ-45 connector of
the Ethernet cable supplied with the device.

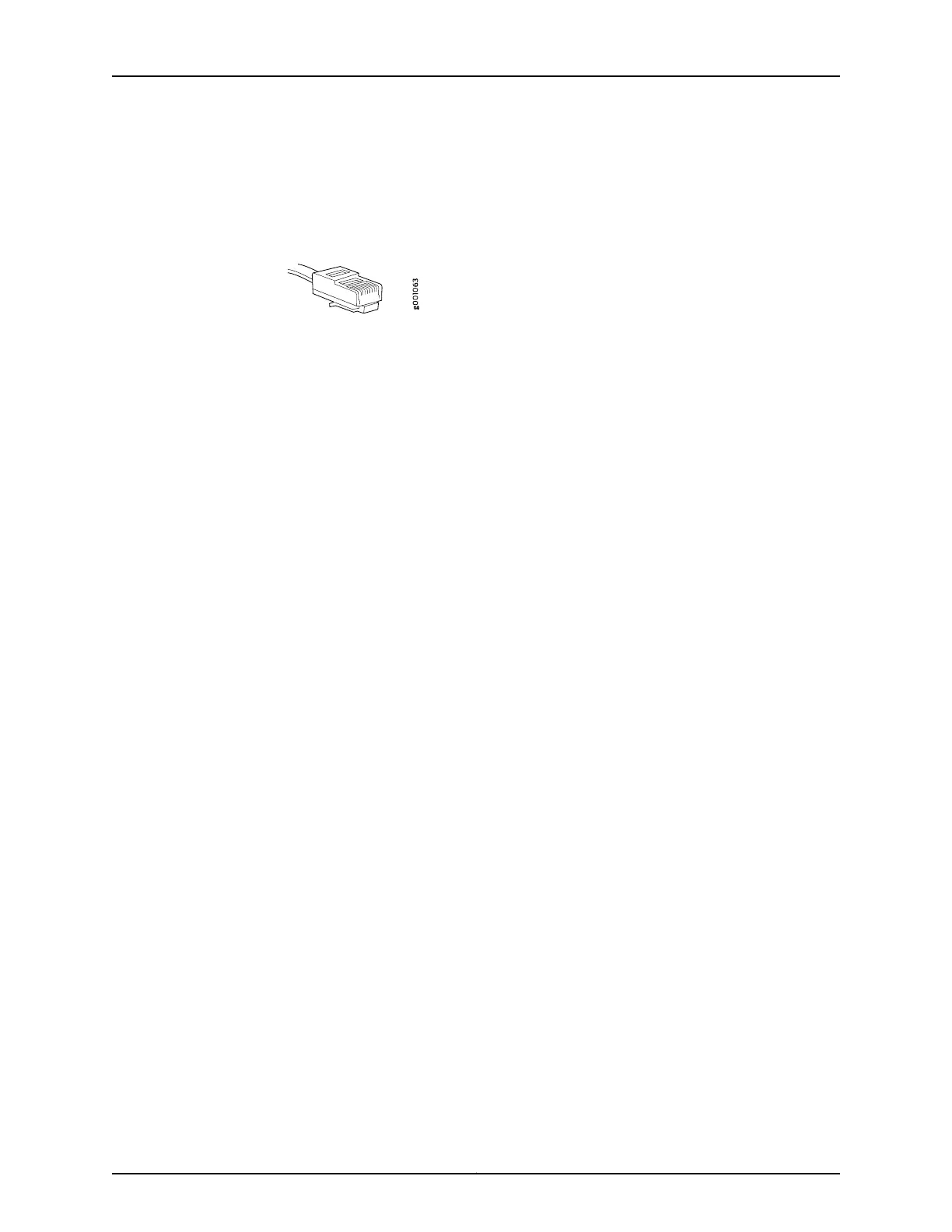

Figure 50: Ethernet Cable Connector
To connect a device to a network for out-of-band management (see Figure 51 on page129):
1. Connect one end of the Ethernet cable to the management port (labeled MGMT or
ETHERNET) on the device.
For the location of the MGMT or ETHERNET port on different devices:
•
See “EX2200 Switches Hardware Overview” on page 3.
•
See Rear Panel of an EX3200 Switch.
•
See Rear Panel of an EX3300 Switch.
•
See Rear Panel of an EX4200 Switch.
•
See EX4300 Switches Hardware Overview
•
See Front Panel of an EX4500 Switch.
•
See EX4550 Switches Hardware Overview
•
See Switch Fabric and Routing Engine (SRE) Module in an EX6200 Switch.
•
See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch.
•
See Routing Engine (RE) Module in an EX8216 Switch.
•
See Front Panel of an XRE200 External Routing Engine.
•
See OCX1100 Switches Hardware Overview.
2. Connect the other end of the Ethernet cable to the management device.
Copyright © 2015, Juniper Networks, Inc.128
Complete Hardware Guide for EX2200 Ethernet Switches
