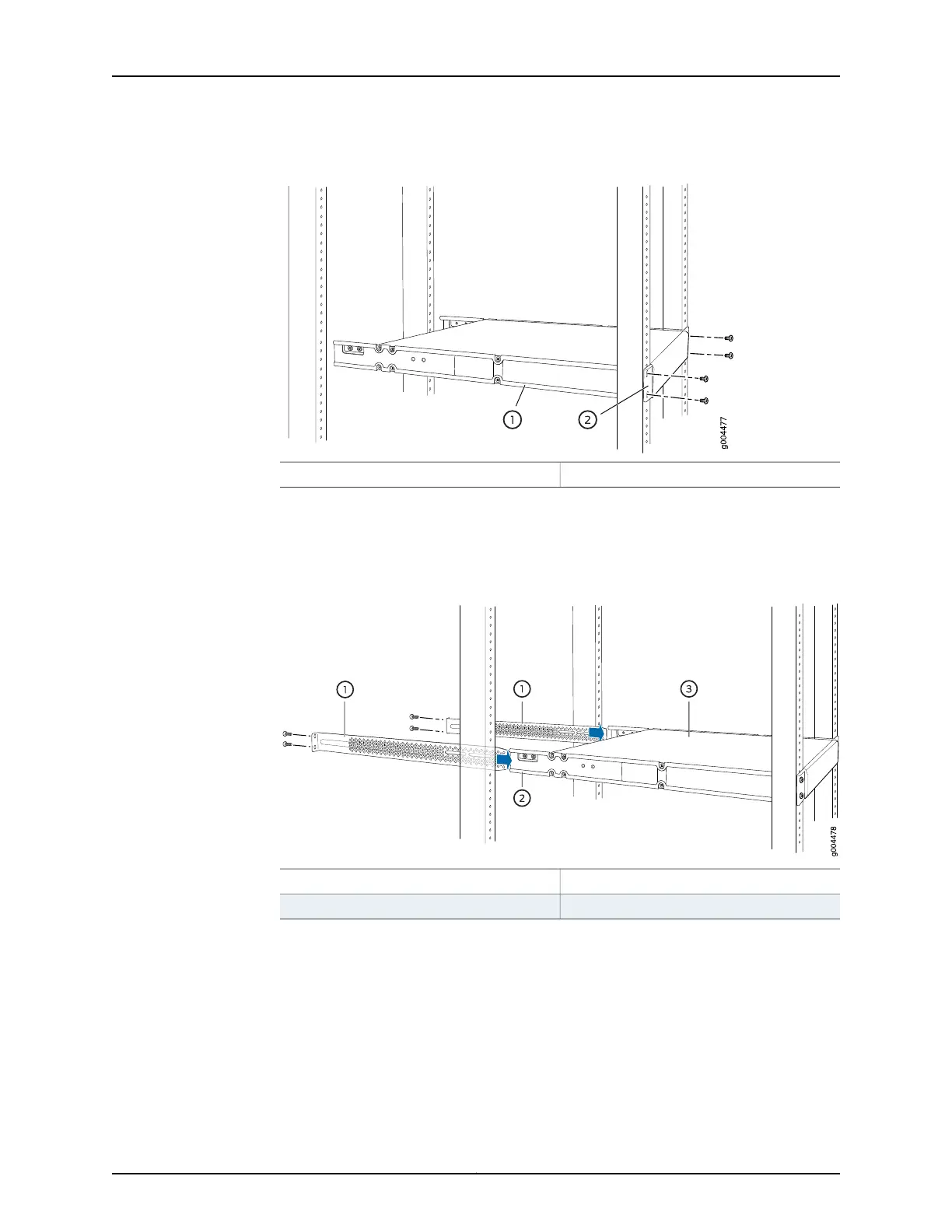

Figure 32: Mounting the Switch to the Front Posts of a Rack
2—1— Front-mounting bracketSide mounting-rail
8. Have a second person secure the front of the switch to the rack by using the appropriate
screws for your rack.
9. Slide the rearmounting-blades into the side mounting-rails. SeeFigure 33 on page 101.
Figure 33: Sliding the Rear Mounting-Blades into the Side Mounting-Rail
3—1— SwitchRear mounting-blades
2—Side mounting-rail
10. Attach the rear mounting-blades to the rear post by using the appropriate screws for
your rack. Tighten the screws.
11. Ensure that the switch chassis is level by verifying that all the screws on the front of
the rack are aligned with the screws at the back of the rack.
Related
Documentation
Mounting an EX2200 Switch on Two Posts of a Rack or Cabinet on page 95
Connecting Earth Ground to an EX Series Switch on page 117
101Copyright © 2015, Juniper Networks, Inc.
