Juniper EX4300 Series

• Leave at least 24 in. (61 cm) clearance in front of and behind the switch for service personnel to
remove and install hardware components. See Figure 49 on page 139, Figure 50 on page 139, and
Figure 51 on page 140.

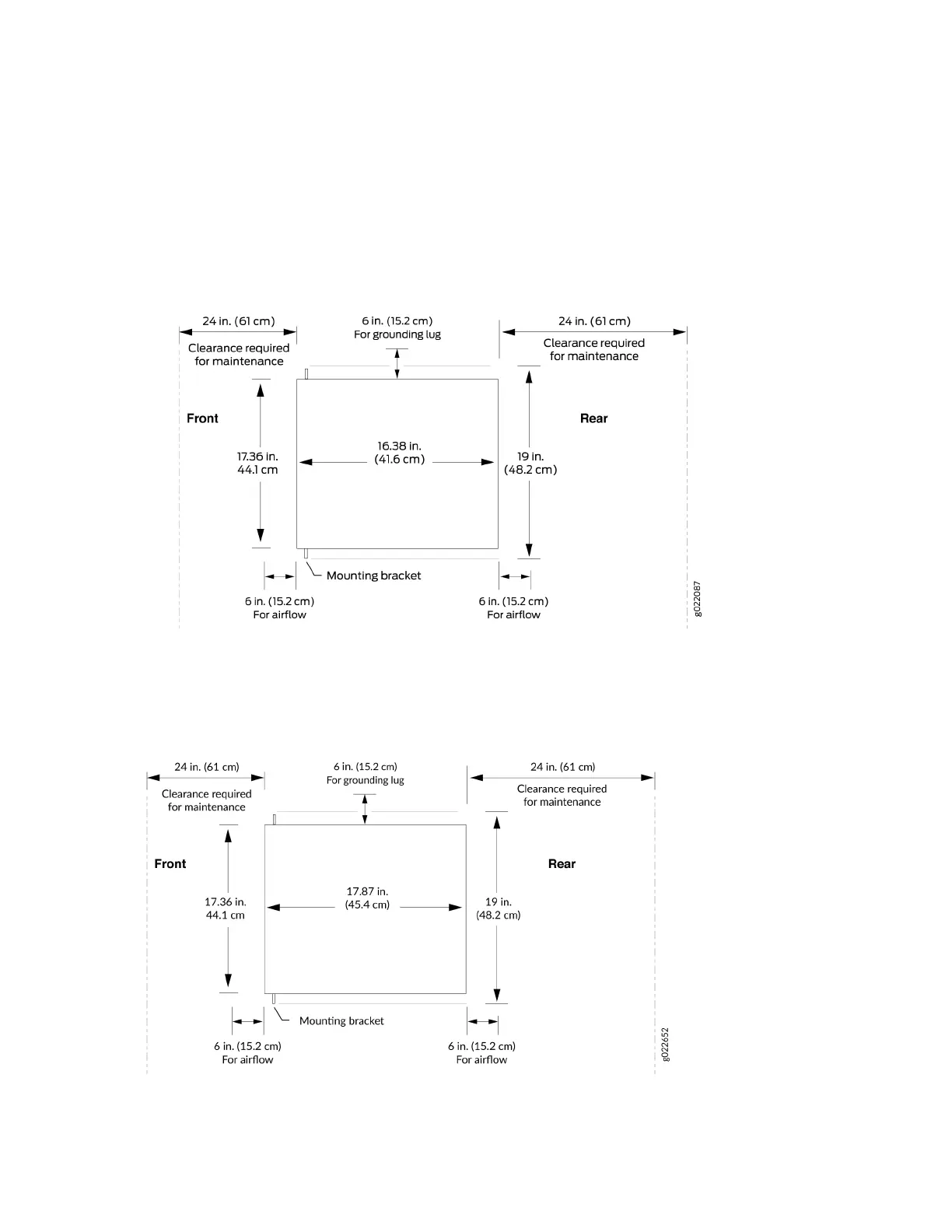

Figure 49: Clearance Requirements for Airow and Hardware Maintenance for an EX4300 Switches
Except EX4300-32F and EX4300-48MP Switches
Figure 50: Clearance Requirements for Airow and Hardware Maintenance for EX4300-32F Switches
139
