The switch supports the 4-port 1-Gigabit Ethernet/10-Gigabit Ethernet SFP+ uplink module
(model number: EX-UM-4SFPP-MR) from Junos OS Release 18.2R1 onwards. Starng in
Junos OS Release 19.1R1, you can install SFP transceivers in the uplink module. In Junos OS
Release 18.2R1 through Junos OS Release 18.4R1, the uplink module supported only SFP+
transceivers.
Figure 5 on page 10 shows the front panel of 48 port EX4300 switches except EX4300-48MP and
EX4300-48MP-S switches. Figure 6 on page 10 shows the front panel of EX4300-48MP and
EX4300-48MP-S switches.

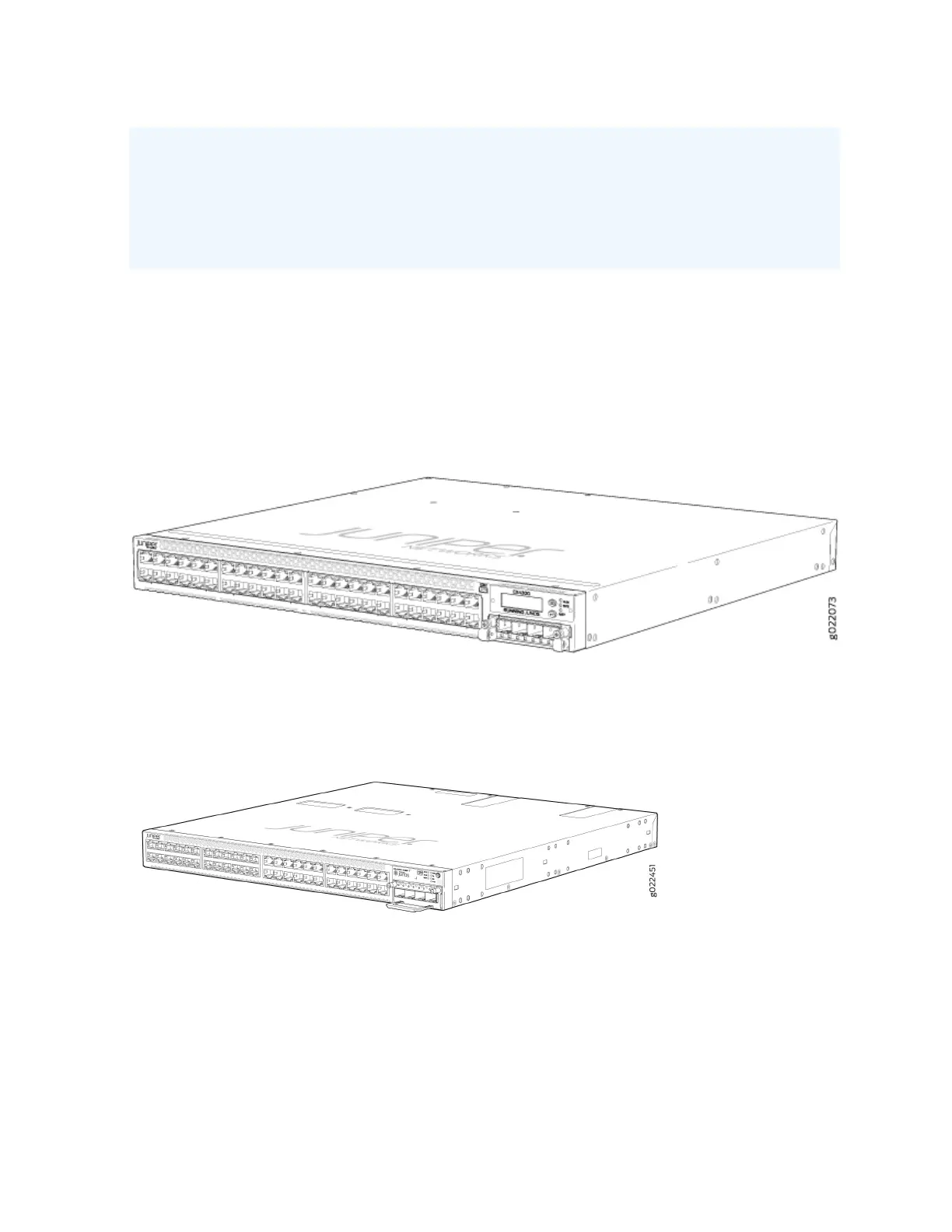

Figure 5: Front Panel of 48-Port EX4300 Switches Except EX4300-48MP and EX4300-48MP-S
Switches
Figure 6: Front Panel of EX4300-48MP and EX4300-48MP-S Switches
Figure 7 on page 11 shows the rear panel of 48-port EX4300 switches except EX4300-48MP and
EX4300-48MP-S switches, with power supplies and fan modules installed. Figure 8 on page 11 shows
10
