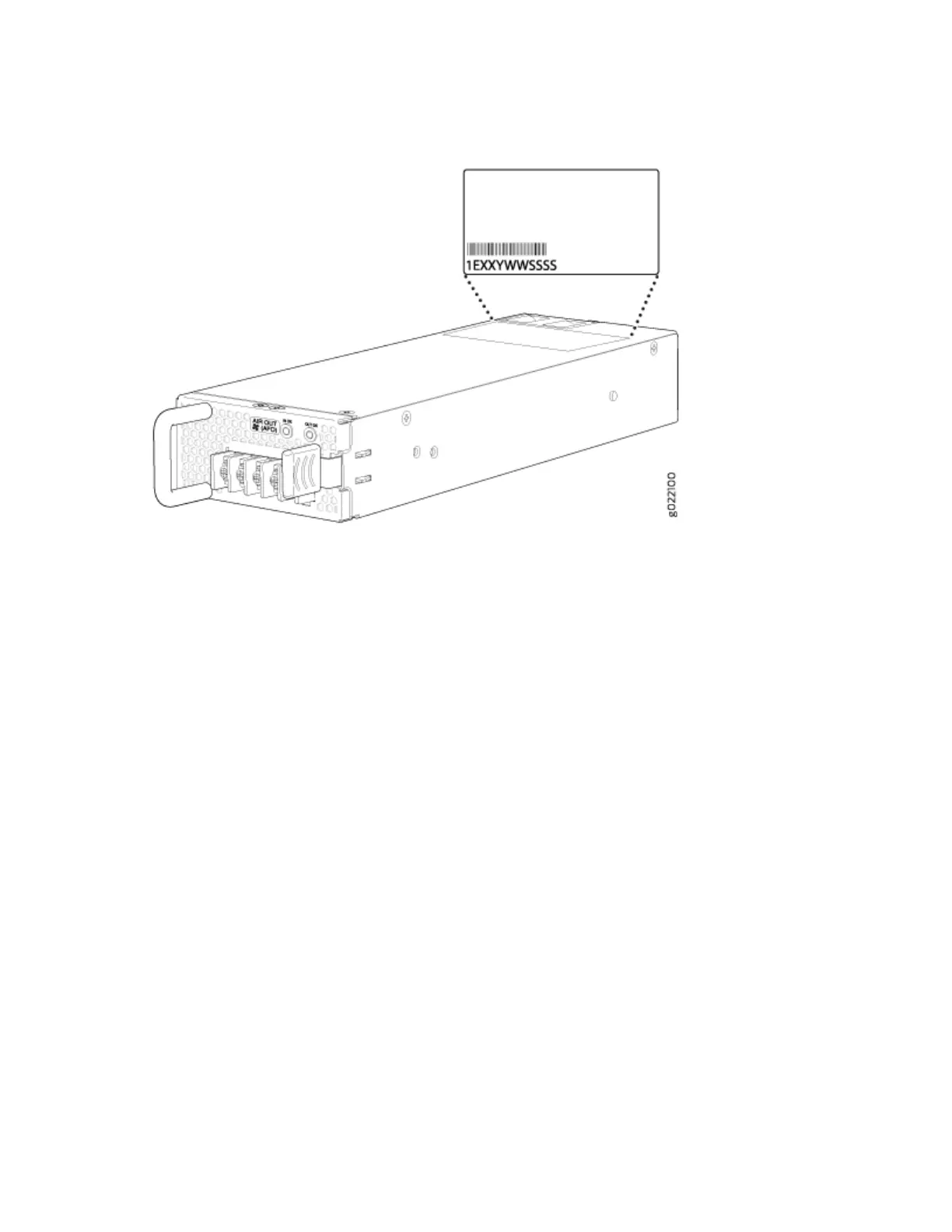

Figure 106: Locaon of the Serial Number ID Label on a DC Power Supply Used in EX4300 Switches

•

Fan module

—Figure 107 on page 349 shows the locaon of the serial number ID label on the fan

module for EX4300 switches except EX4300-48MP and EX4300-48MP-S switches. Figure 108 on

348
