Juniper EX4300 Series

page 349 shows the locaon of the serial number ID label on the fan module for EX4300-48MP and
EX4300-48MP-S switches. See "Removing a Fan Module from an EX4300 Switch" on page 292.

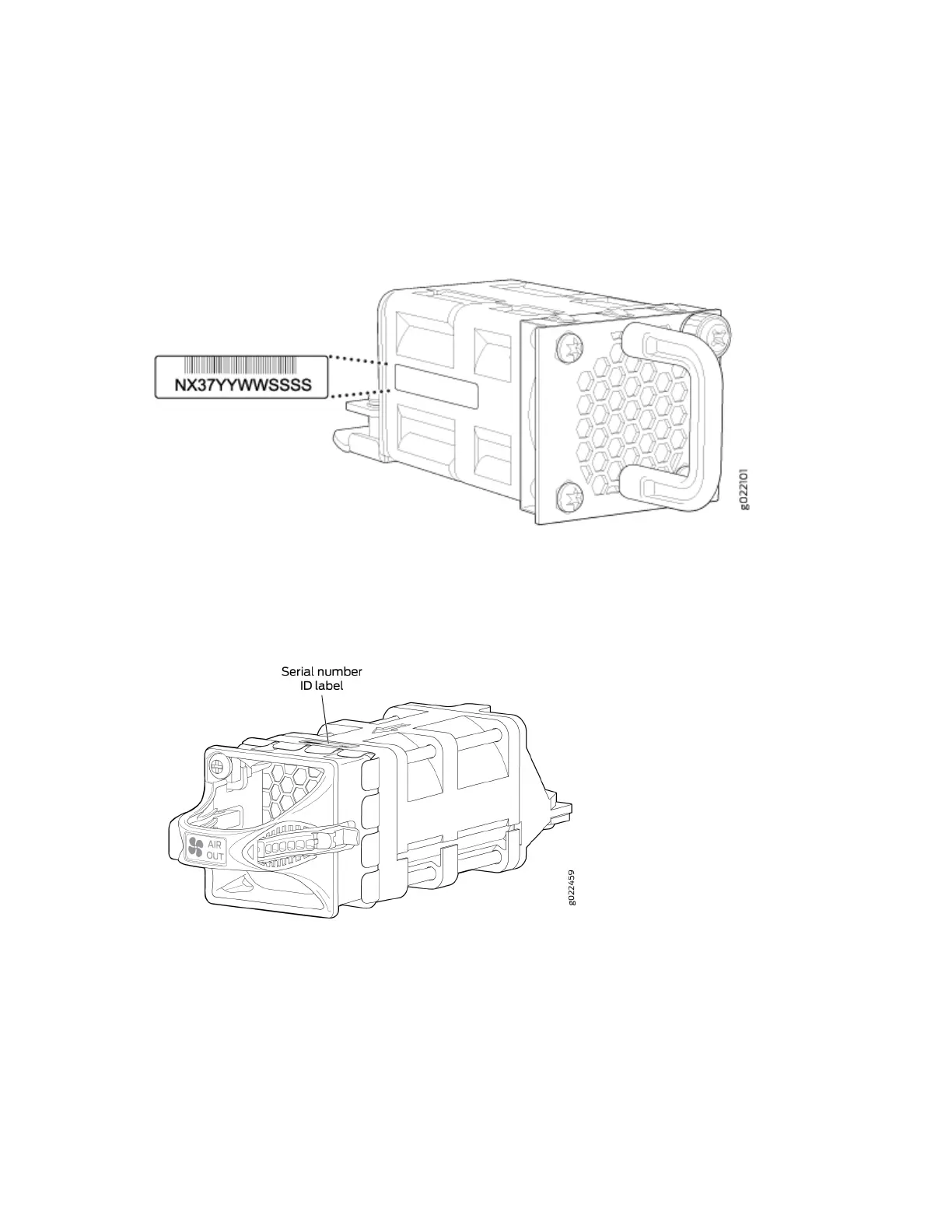

Figure 107: Locaon of the Serial Number ID Label on the Fan Module Used in an EX4300 Switches
Except EX4300-48MP and EX4300-48MP-S Switches
Figure 108: Locaon of the Serial Number ID Label on the Fan Module Used in an EX4300-48MP
and EX4300-48MP-S Switches
• Uplink modules
• EX4300 switches except EX4300-48MP and EX4300-48MP-S switches—Figure 109 on page 351
shows the locaon of the serial number ID label on the QSFP+ uplink module, Figure 111 on page
352 shows the locaon of the serial number ID label on the 4-port SFP+ uplink module, and
Figure 112 on page 352 shows the locaon of the serial number ID label on the 8-port SFP+
uplink module.
349
