Juniper EX4300 Series

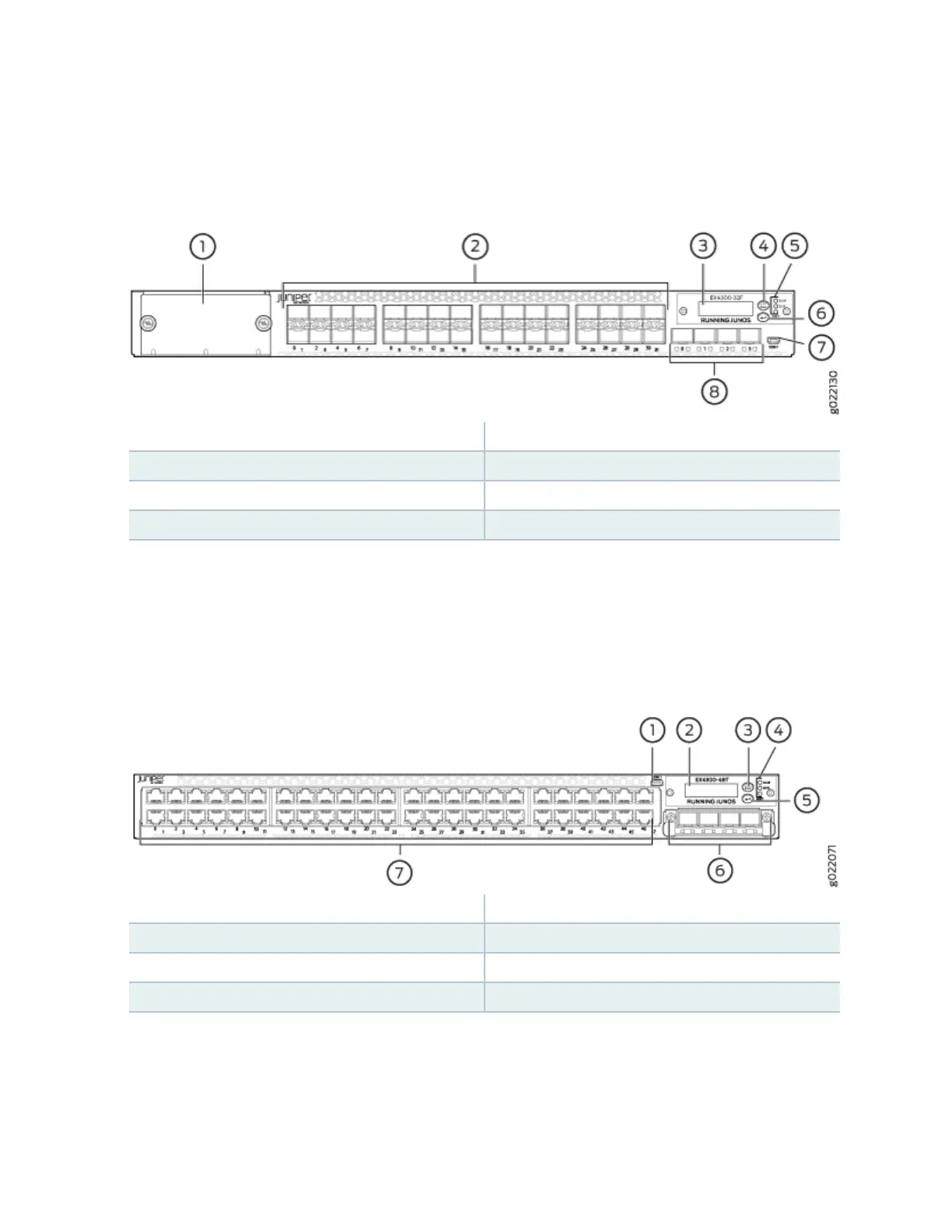

Figure 10 on page 26 shows the components on the front panel of a 32-port EX4300 switch.
Figure 10: Components on the Front Panel of a 32-Port EX4300 Switch
1—
Cover panel for uplink module slot
5—
Chassis status LEDs
2—
SFP network ports
6—
LCD panel Enter buon
3—
LCD panel
7—
Mini-USB console port
4—
LCD panel Menu buon
8—
SFP+ uplink ports
Figure 11 on page 26 shows the components on the front panel of a 48-port EX4300 switches except
EX4300-48MP and EX4300-48MP-S switches (with an SFP+ uplink module installed).
Figure 11: Components on the Front Panel of 48-Port EX4300 Switches Except EX4300-48MP and
EX4300-48MP-S Switches
1—
Mini-USB console port
5—
LCD panel Enter buon
2—
LCD panel
6—
SFP+ uplink module (oponal)
3—
LCD panel Menu buon
7—
Network ports
4—
Chassis status LEDs
26
