Juniper EX4300 Series

• Figure 37 on page 78 shows the LEDs on the ports on the 4-port 1-Gigabit Ethernet SFP/10-
Gigabit Ethernet SFP+ uplink module for EX4300-48MP and EX4300-48MP-S switches.

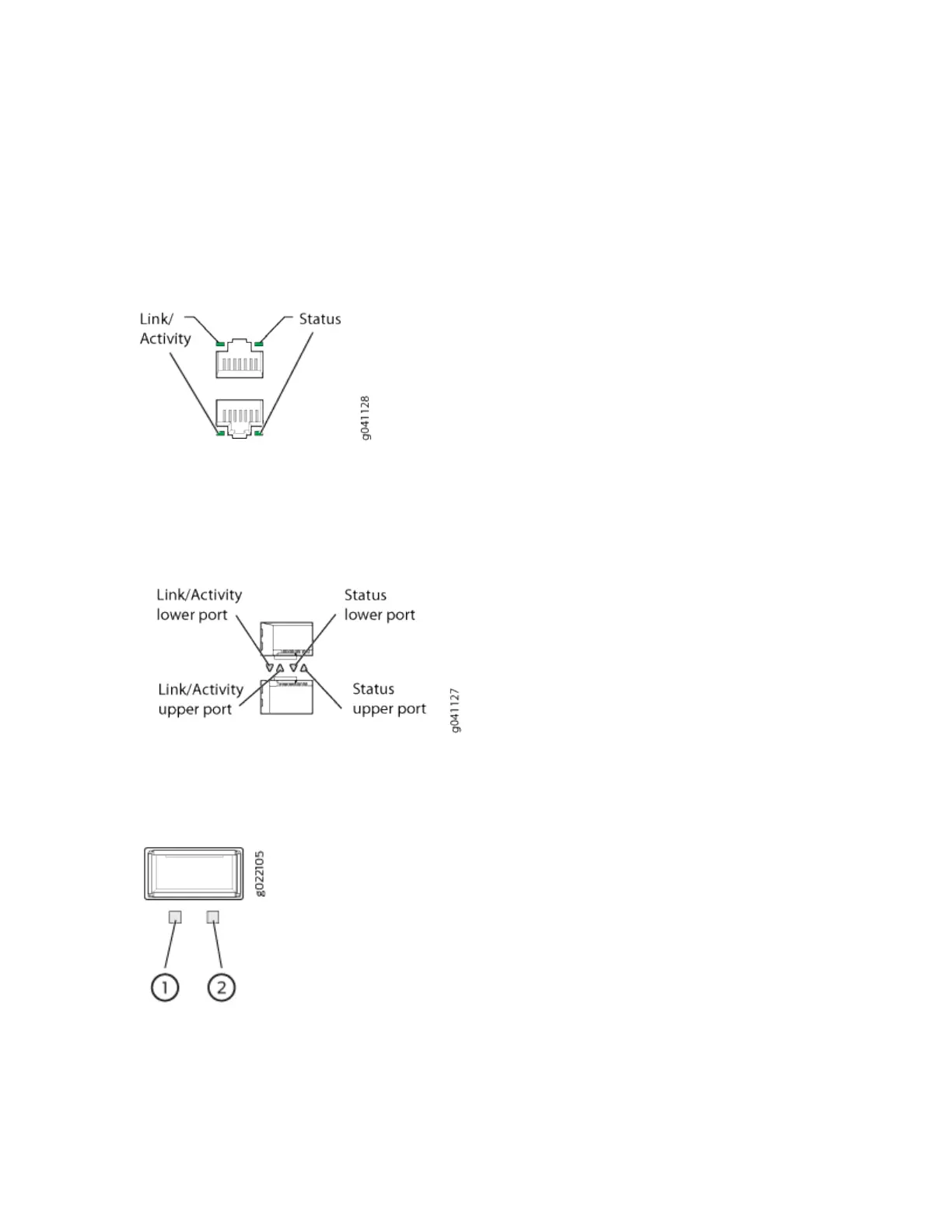

Figure 30: LEDs on 10/100/1000BASE-T Network Ports and 100/1000/2500/5000/10000BASE-T
Ethernet Network Ports
Figure 31: LEDs on the SFP Network Ports on EX4300-32F Switches
Figure 32: LEDs on the Built-In QSFP+ Ports
75
