Material Wrench
Cleaning cloth
Precondition The machine is shut down.
The machine is standing level.
The machine is fully vented, the pressure gauge reads 0 psig.
All compressed air consumers are disconnected and the air outlet valves are open.

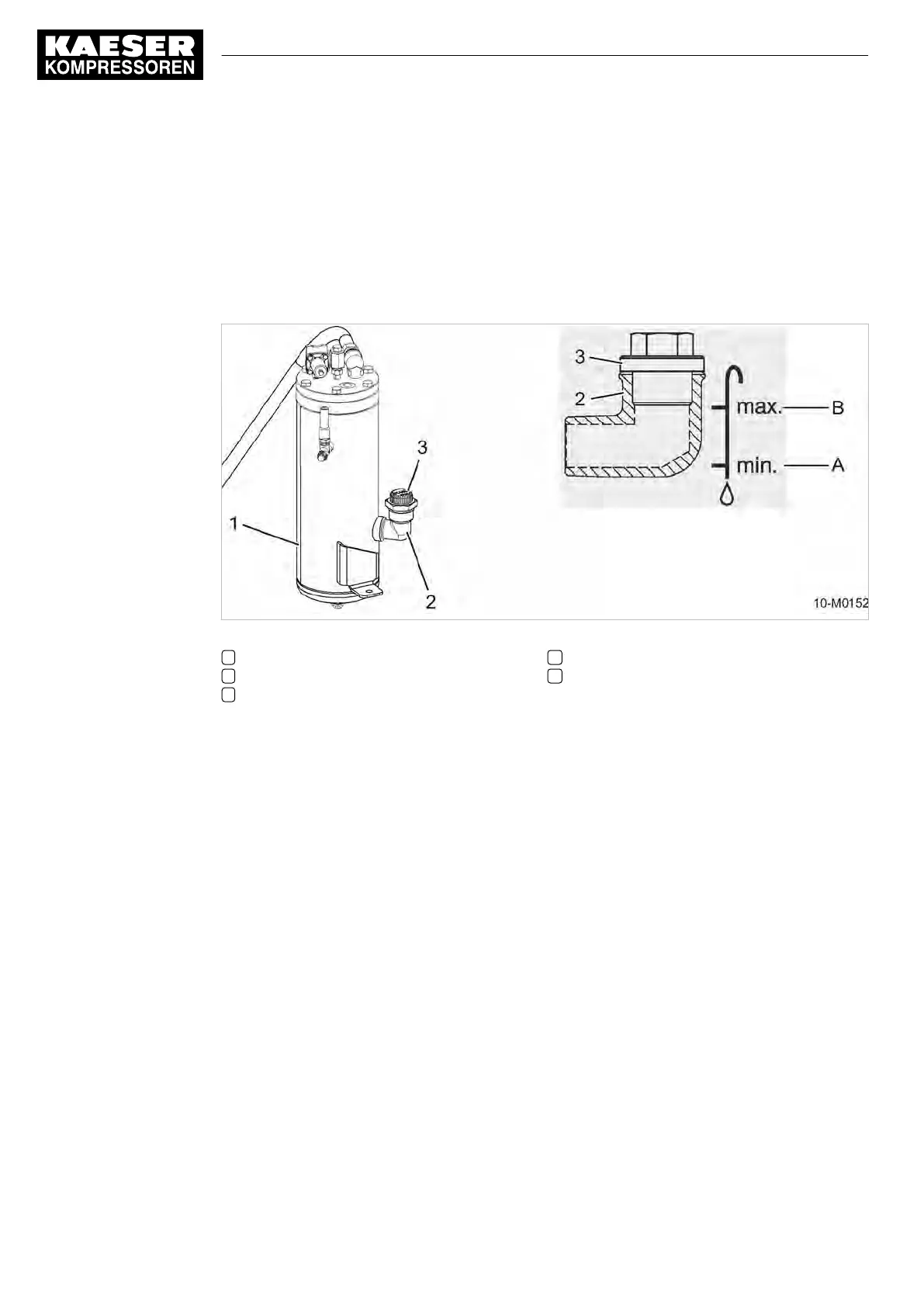

Fig. 50 Checking cooling oil level
1 Oil separator tank
2 Oil filler port
3 Filler plug
A Mark for minimum oil level
B Mark for maximum oil level
1. Open the canopy.
2.
Slowly unscrew and withdraw the plug from the oil filler port.
3. Check the cooling oil level.
Top up if no oil is visible.
4. Replace the plug in the filler port.
5. Close the canopy.
10.4.2 Filling or topping off the cooling oil
Material Cooling oil
Funnel
Cleaning cloth
Wrench
Precondition The machine is shut down.
The machine is standing level.
The machine is fully vented, the pressure gauge reads 0 psig.
Machine is cooled down.
All compressed air consumers are disconnected and the air outlet valves are open.
The negative cable to the battery is disconnected.
