Using the proper distance elements for the towbar
Depending on the use of either ball coupling or towing eye, different distance elements must be
installed to equalize the size difference between towbar and towing adapter:
Towing adapter Model (example) Distance element
Ball coupling AK160–B Distance bow
Towing eye D40–F Distance bush
Tab. 63 Distance elements

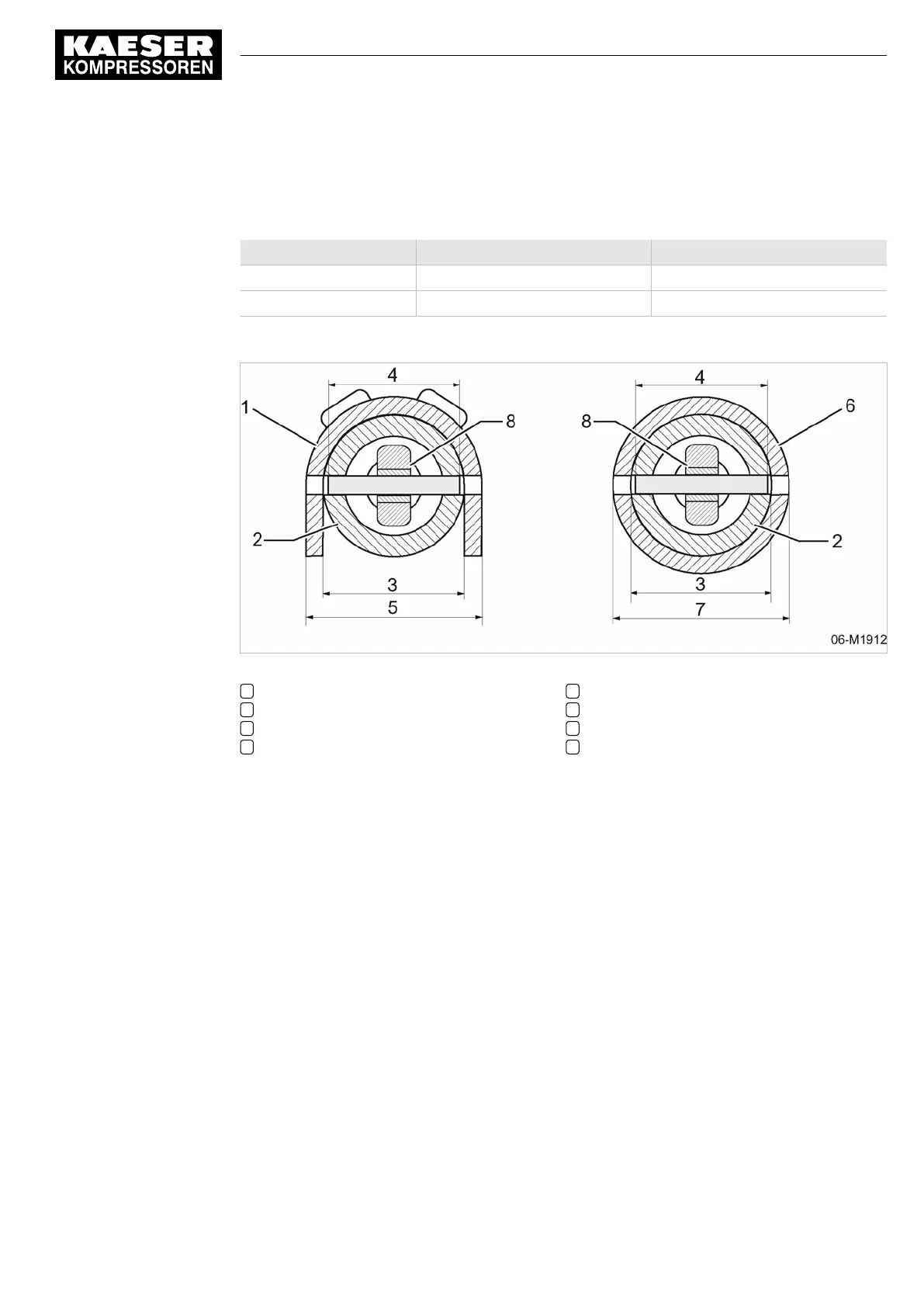

Fig. 22 Distance elements, towing adapter
1 Distance bow
2 Towbar tube
3 Diameter, towbar tube
4 Maximum length, mounting pin
5 External dimension, distance bow
6 Distance bushing
7 External dimension, distance bushing
8 Eye, shock absorber
➤ Determine which type of towing adapter is fitted with which accessories
6 Installation
6.4 Adjusting the chassis
No.: 9_9548 05 USE
Operator Manual Screw Compressor
M27
67
