KAESER M27 - Fitting the Fixed Height Towbar; Fig. 16 Fitting the Fixed Height Towbar

6.3.2 Fitting the fixed height towbar

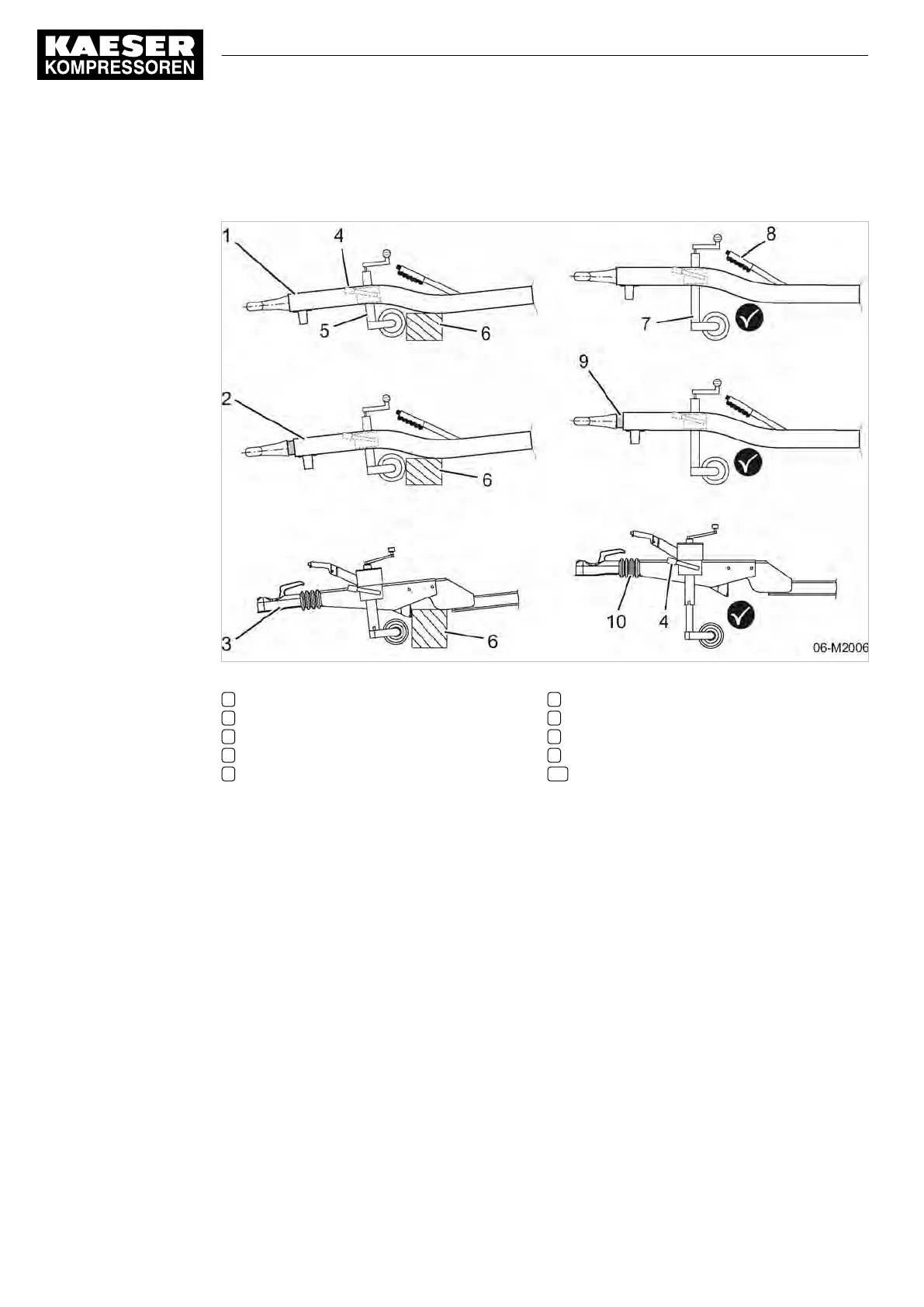

Fig. 16 Fitting the fixed height towbar
1 Delivery state, towing device rd/ro/rr
2 Delivery state, towing device rg/rp/rr
3 Delivery state, towing device rc/ro/rs
4 Clamping lever
5 Jockey wheel
6 Transport frame
7 Jockey wheel cranked down
8 Parking brake
9 Adapter, mounted rotatable
10 Overrun braking mechanism
1. Check whether the clamping levers are properly tightened.
2.
Crank down the jockey wheel.
3. Check whether the machine is in horizontal position.
4. If necessary, crank the jockey wheel further down.
Result Towing device is pre-assembled.
