Danger of pinching!
Severe injury to fingers is possible if they become trapped in the adjusting mechanism.
➤ Always wear protective gloves.
➤ Work carefully.
➤ Comply with the safety instructions in chapter 3.5.
6.4.1 Option rb/rm/rr
Adjusting the towbar height
The purpose of height adjustment is to bring the towing eye, or coupling, to the correct height for
the towing vehicle.
At the correct height, the towing eye or coupling should be parallel to the ground.
Height adjustment is by two serrated joints.
■ Serrated joint 1: Adjustable position of the center piece relative to the chassis.
─ Maximum adjustment upwards: 50°
─ Maximum adjustment downwards: 10°
■ Serrated joint 2: Adjustable position of the towing eye or ball coupling to the center piece.

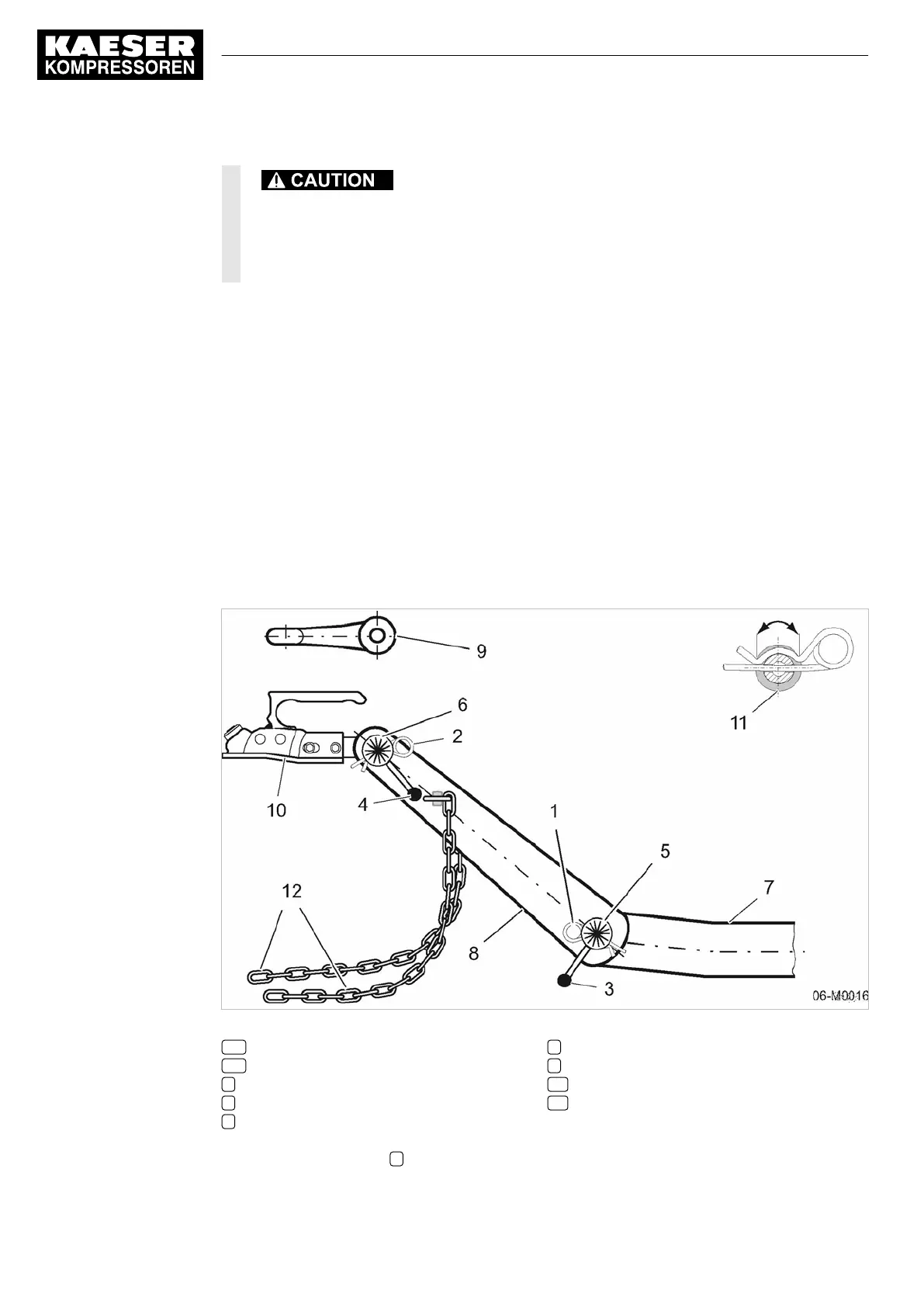

Fig. 18 Towbar height adjustment rb/rm/rr
1,2 Split pin
3,4 Locking lever
5 Serrated joint 1
6 Serrated joint 2
7 Towbar tube
8 Towbar adapter
9 Ball coupling
10 Towing eye
11 Split pin (securing principle)
1. Draw out the split pin 1 .
