4.2 Component identification

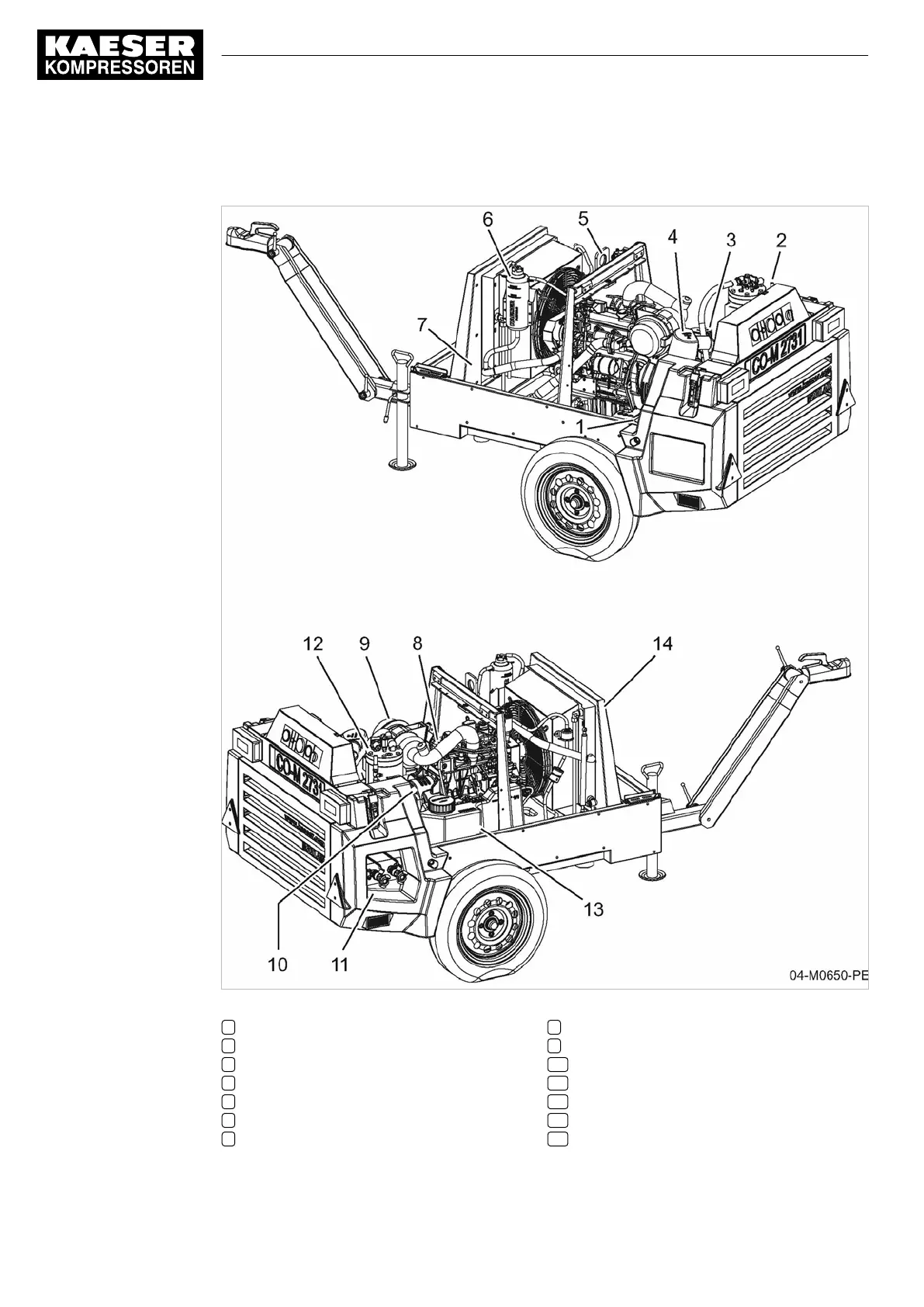

Fig. 4 Side view (canopy removed)
1 Battery
2 Safety (pressure) relief valve
3 Thermostatic valve
4 Compressor air filter
5 Lifting eye
6 Coolant expansion tank
7 Water cooler
8 Engine
9 Engine air filter
10 Airend
11 Compressed air outlet valve
12 Oil separator tank
13 Fuel tank
14 Oil cooler
