12.2.2.3 Ensure transport readiness of the coupled machine

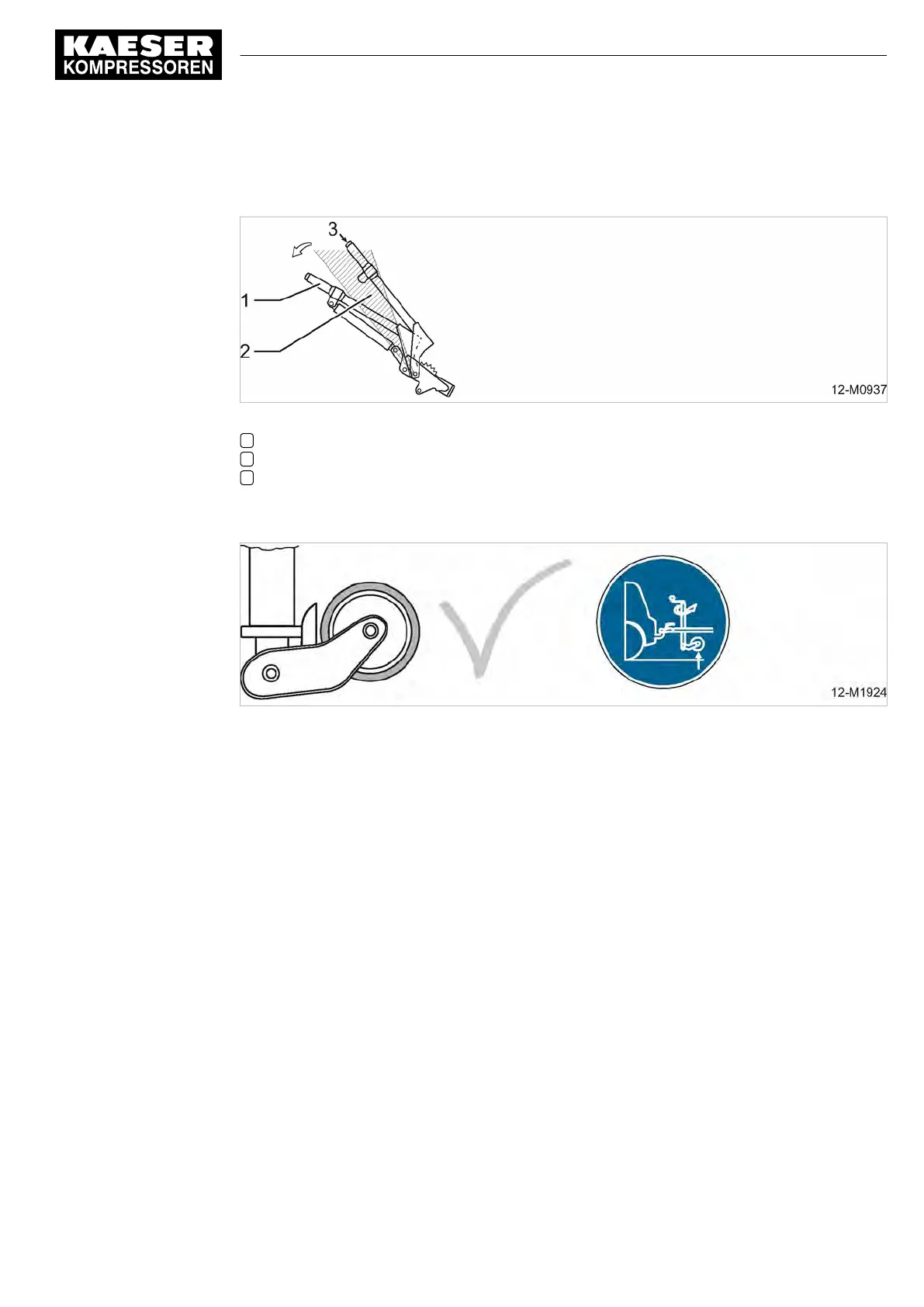

Fig. 76 Release the parking brake with gas spring assistance
1 Parking brake lever
2 Dead point zone
3 Brake lever release button
Preparing a machine with an adjustable chassis for transport
Fig. 77 Automatic jockey wheel in transport position
1. Check that the towbar is adjusted to the correct height. (see also chapter 6.4)
Check if:
■
The teeth in the towbar height adjusting joints are fully engaged.
■ The locking levers are tightened
■ The security pin is fully inserted.
2. Push the support upward or crank the automatic jockey wheel to the end stop.
The relieved automatic jockey wheel of the coupled machine swivels into transport position,
see illustration 77.
3. Check that the wheels are securely fitted and the tires are in good condition.
4. Check the tire pressures.
5. Connect the cable for the lighting and indicator systems and carry out a function check.
6. Release the parking brake:
(see Fig. 76).
■ Pull the brake lever a little further on and press the release button.
■ Hold the release button in and push the lever down past the dead point zone.
7. Install the safety chains and/or contact breaking cable at the towing vehicle, see illustration
79 and 80.
8. Remove the chocks.
