KAESER M27 - Fig. 20 Replacing the Ball Coupling (Height-Adjustable Towing System)

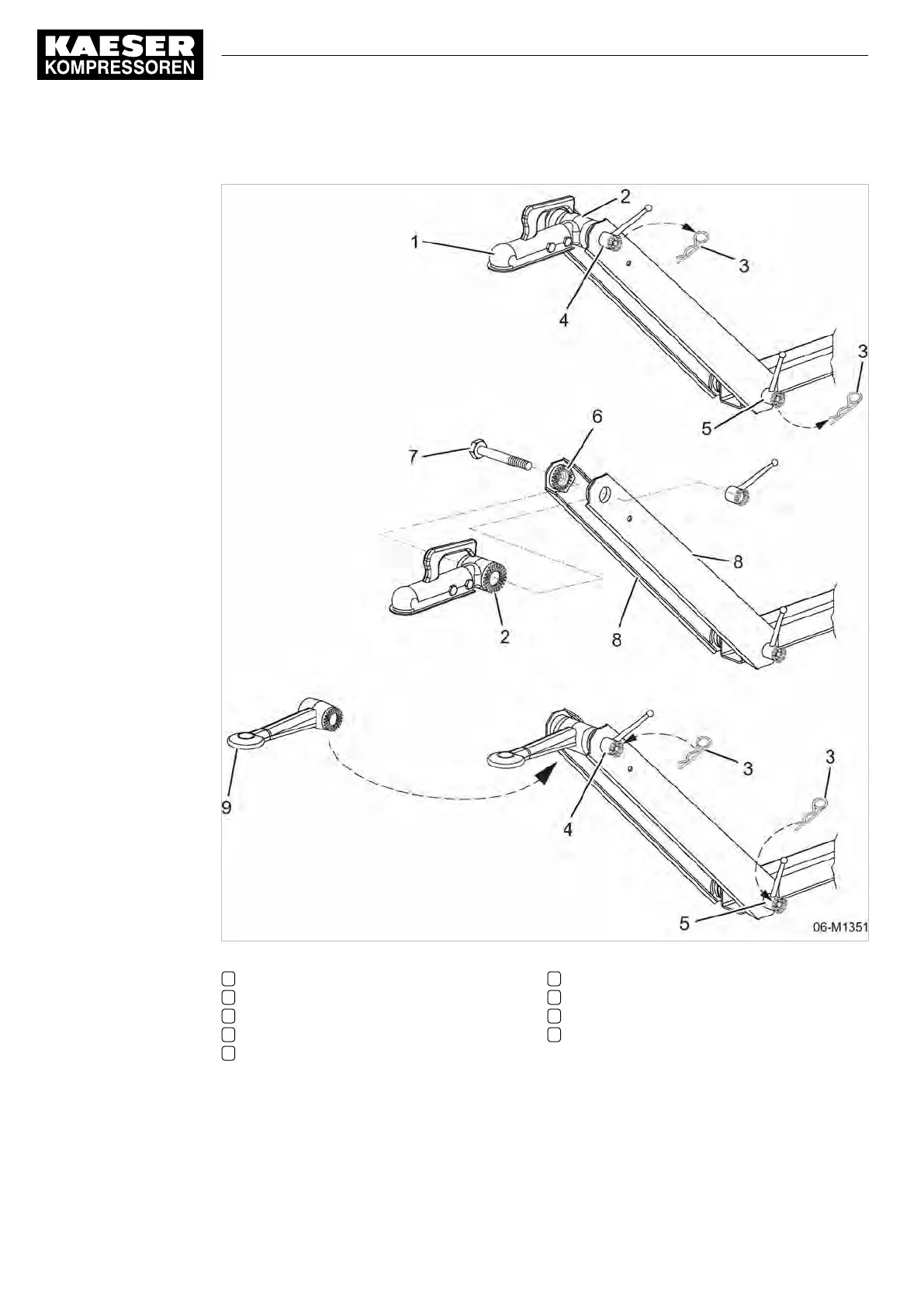

Fig. 20 Replacing the ball coupling (height-adjustable towing system)
1 Ball coupling
2 Adapter for ball coupling
3 Split pin
4 Locking lever
5 Locking lever
6 Serrated joint
7 Hex-head bolt
8 Side part
9 Towing eye
6 Installation
6.4 Adjusting the chassis
64
Operator Manual Screw Compressor
M27 No.: 9_9548 05 USE
Option rb/rm/rr
