KAESER M27 - Fitting the Height-Adjustable Towbar; Fig. 15 Fitting the Height-Adjustable Towbar

1. Loosen the transport safety means.
2.
Remove the securing strap and the foam from the towing device.
6.3.1 Fitting the height-adjustable towbar

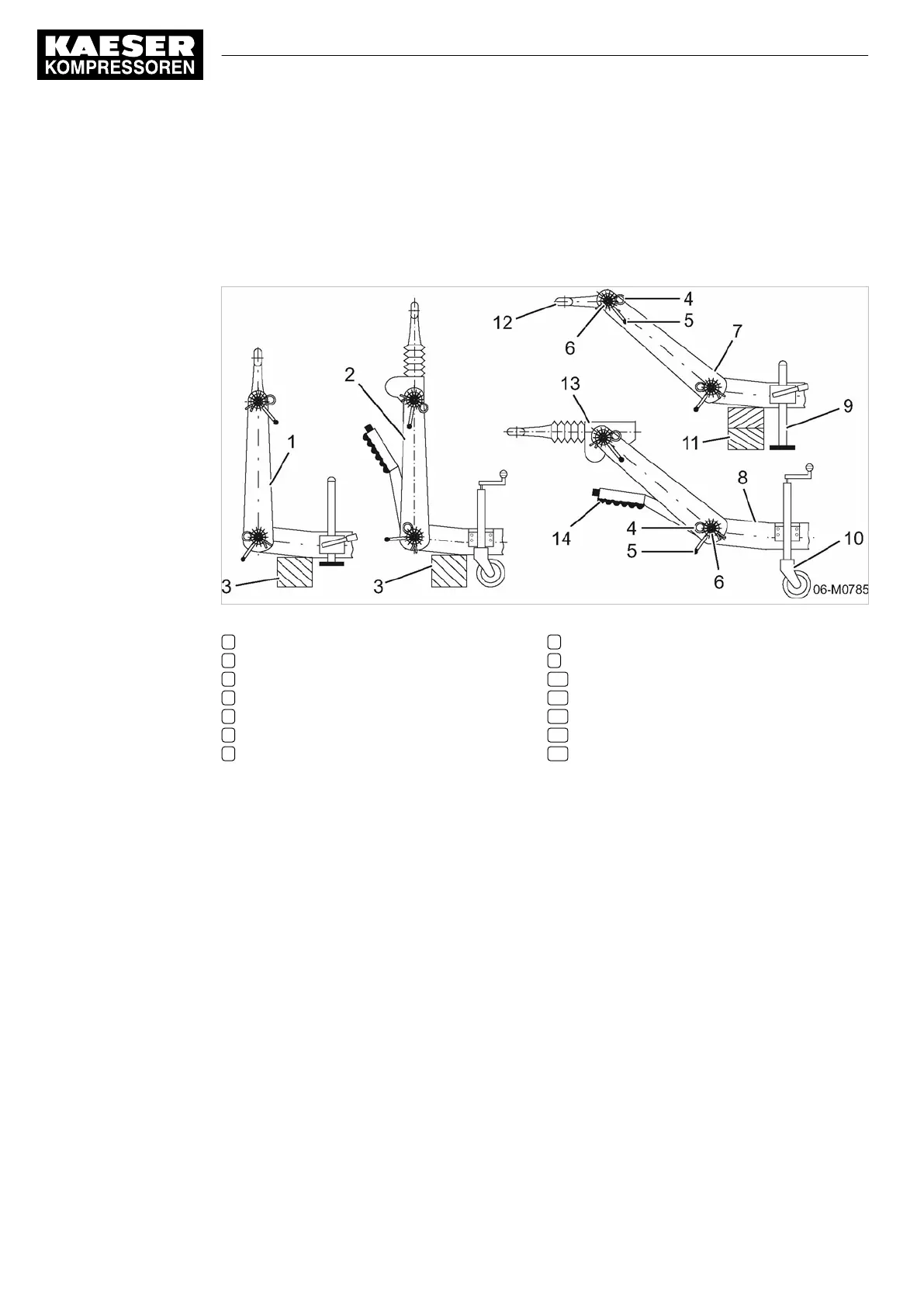

Fig. 15 Fitting the height-adjustable towbar
1 Delivery state, towing device rb/rm/rr
2 Delivery state, towing device rb/rm/rs
3 Transport frame
4 Split pin
5 Locking lever
6 Joint
7 Towbar adapter
8 Towbar tube
9 Prop stand
10 Jockey wheel
11 Support
12 Towing eye
13 Overrun braking mechanism
14 Parking brake
