6.4.3.3 Option rc/ro/rr
Replacing the ball coupling with a towing eye in fixed-height towing systems
The following alternative tasks must be carried out to change the towing eye or the ball coupling.

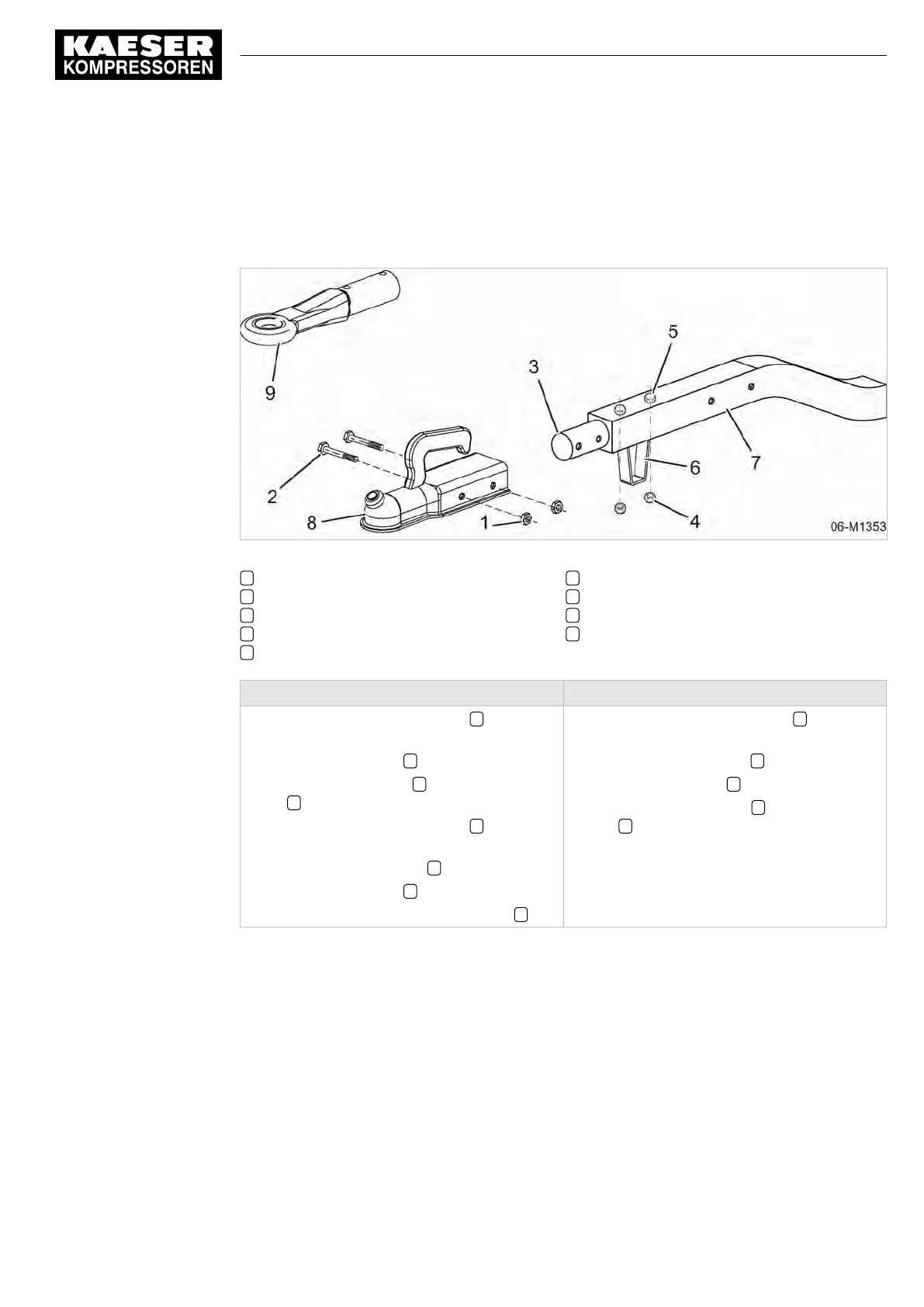

Fig. 23 Changing the towing eye
1 Self-locking nut
2 Screw (horizontal screw connection)
3 Adapter
4 Self-locking nut
5 Screw (vertical screw connection)
6 Prop stand
7 Towbar tube
8 Ball coupling
9 Towing eye
Removing the ball coupling Removing the towing eye
1. Unscrew and remove the nuts 1 of the hori‐
zontal screw connections.
2.
Remove the screws 2
.
3.
Remove the coupling 8
from the adapt‐
er 3 .
4.
Unscrew and remove the nuts 4
of the ver‐
tical screw connections.
5.
Remove the prop stand 6
.
6.
Remove the screws 5
.
7.
Remove the adapter from the towbar 7
.
1. Unscrew and remove the nuts 4 of the ver‐
tical screw connections.
2.
Remove the prop stand 6
.
3.
Remove the screws 5
.
4.
Remove the towing eye 9
from the tow‐
bar 7 .
