Filling and topping up with tool lubricator oil
1.
Slowly unscrew and withdraw the oil filler plug.
2. Use a funnel to pour in the oil to the maximum level (0.4 - 0.6 inches below the top of the tank).
3. Check the oil level.
4. Check the filler plug O-ring for external damage.
Change a damaged O-ring.
5. Insert the plug in the filler port.
6. Close the canopy.
Further information See chapter 2.7.1 for suitable oil grade and volume.
10.8.2 Option da
Compressed air water separator maintenance
If the amount of water in the compressed air is too high, the dirt trap of the compressed air water
separator requires cleaning. The compressed air water separator 2
is integrated in the com‐
pressed air aftercooler 1 .
Material Cleaning cloth
Wrench
Small screwdriver
Dirt trap maintenance kit
Petroleum ether or spirit
Precondition The machine is shut down.
The machine is cooled down.
The machine is fully vented, the pressure gauge reads 0 psig.
All compressed air consumers are disconnected and the air outlet valves are open.
The negative cable to the battery is disconnected.

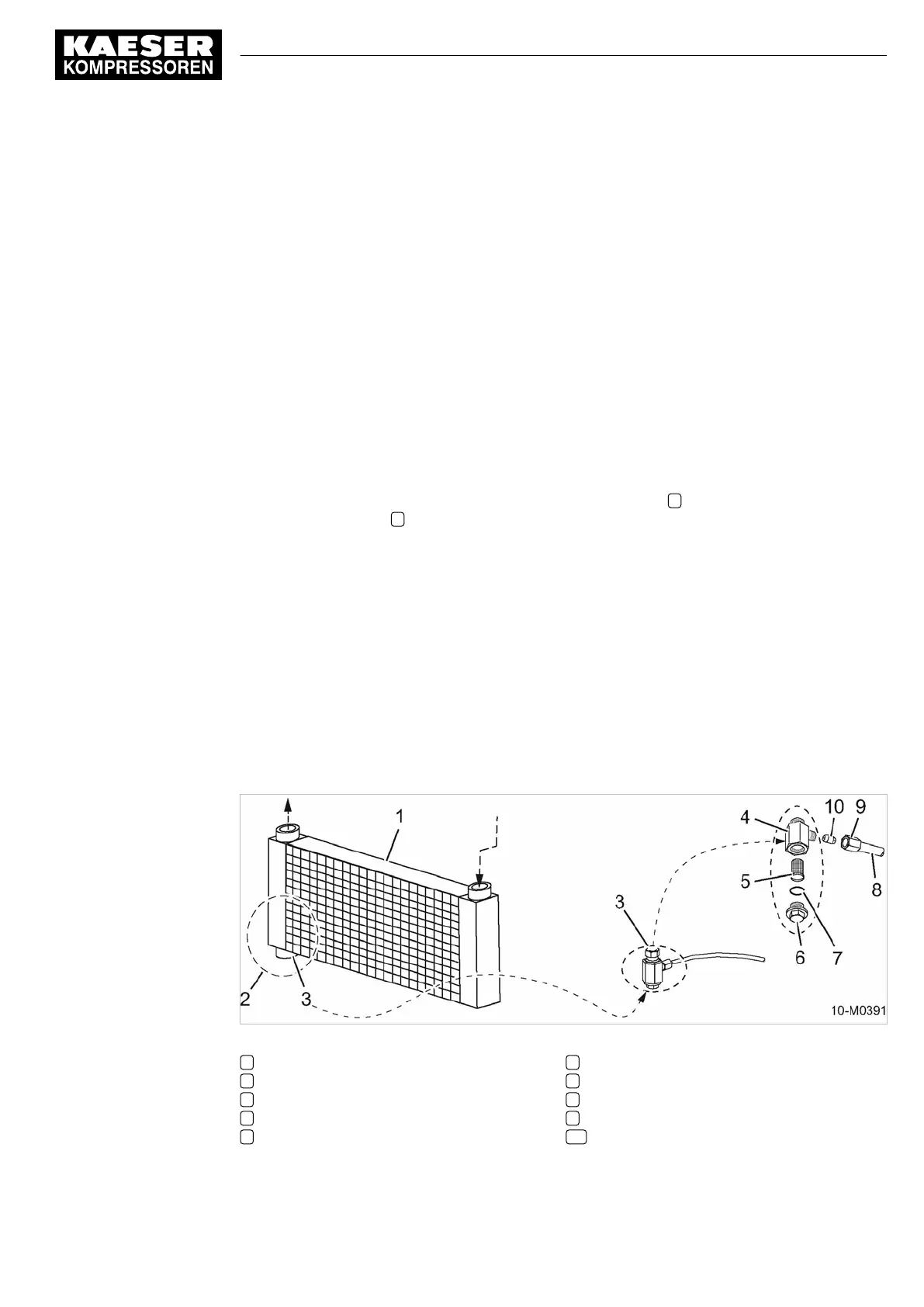

Fig. 68 Cleaning the dirt trap
1 Compressed air aftercooler
2 Compressed air water separator
3 Dirt trap
4 Dirt trap housing
5 Strainer
6 O-ring
7 Screw plug
8 Condensate drain hose
9 Condensate drain hose union nut
10 Nozzle
➤ Open the cover.
10 Maintenance
10.8 Maintenance for Optional Items
No.: 9_9548 05 USE
Operator Manual Screw Compressor
M27
157
