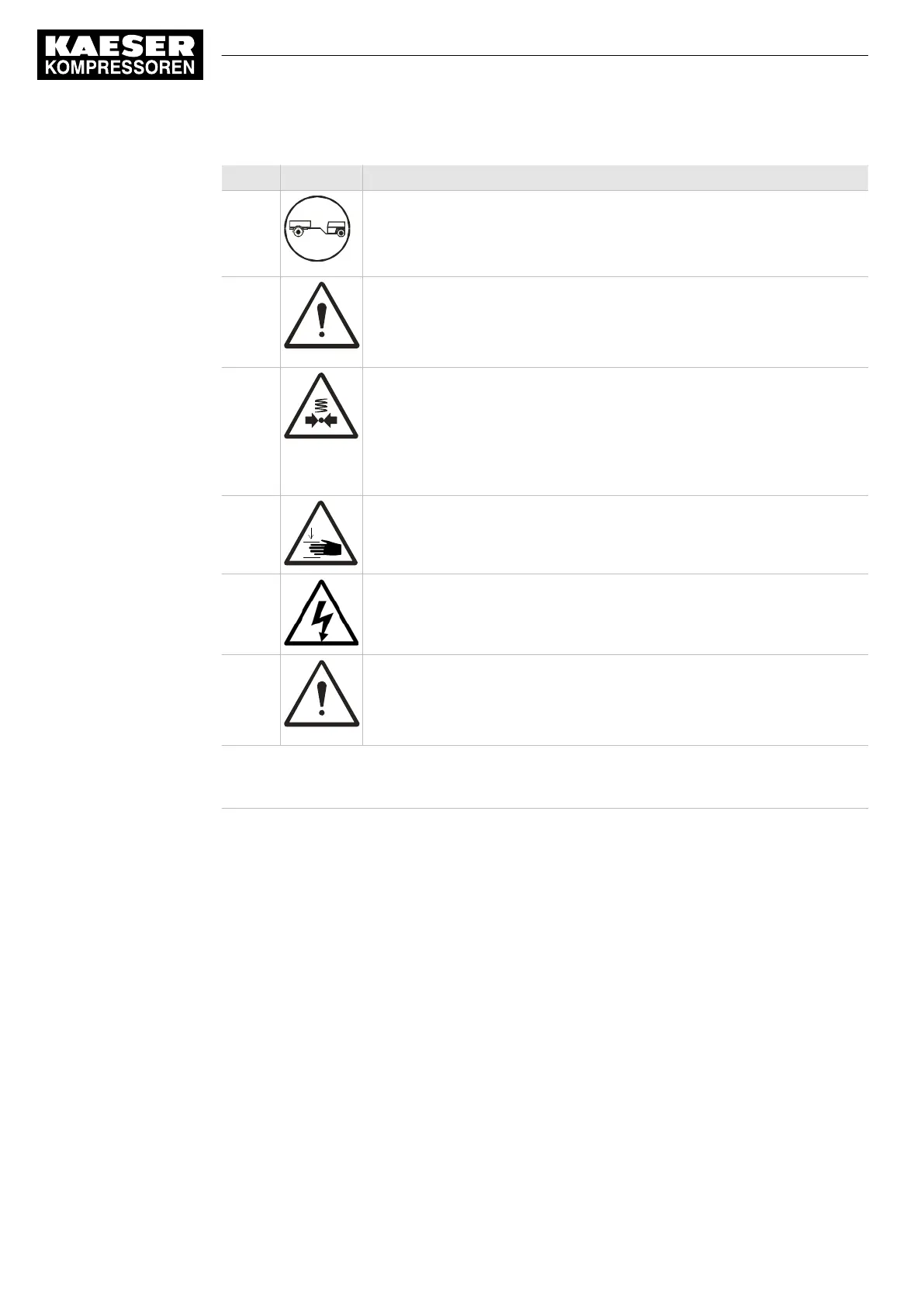

Position Symbol Meaning
500** Towbar load and ground clearance.
Danger of fishtailing, incorrect towing vehicle load, damage to the machine
caused by rollover or contact with the ground.
➤
Always line up the towbar so that the machine is level with the ground.
510**
Malfunction due to lack of maintenance.
Accidents and machine damage possible.
➤
Maintain the chassis regularly.
➤ Follow instructions in the service manual.
600*
Pressure and spring force!
Risk of fatal injury caused by loosening, opening, or dismantling valves or
other components that are under pressure or heavy spring loading.
➤
Do not open or dismantle valves.
➤ Contact an authorized KAESER service representative in the event of a
fault.
620
621
Pinch point hazard!
➤
Keep hands clear when opening the canopy.
850***
There is danger of fatal injury caused by contact with electrically live compo‐
nents!
➤
Take protective measures.
1650*
Machine damage if switched while the engine is running!
➤
Use the «Battery isolating switch» only with the engine stopped.
➤ Do not use the «Battery isolating switch» as a main or emergency
switch.
* Location within the machine
** Only towable machines
*** Only machines equipped with Option ga, gb
Tab. 58 Safety signs
3.8 Option ga
Generator operation
3.8.1 Comply with the protective measures against dangerous electric current
Protection against dangerous electric current is regulated by the "Low-voltage current generating
installations" directive
IEC 60364–5–551 (DIN VDE 0100–551).
The protective measures concerning "isolation, insulation monitoring and shut-down" are applied.
The generator is equipped with an automatic power supply cut-out with overcurrent release and in‐
sulation monitoring in accordance with this protective measure.
➤ Observe and follow the regulations concerning protection against dangerous electric current
when using the generator.
3 Safety and Responsibility
3.8 Generator operation
32
Operator Manual Screw Compressor
M27 No.: 9_9548 05 USE
