KAESER M27 - Fig. 33 Setting the Tool Lubricator

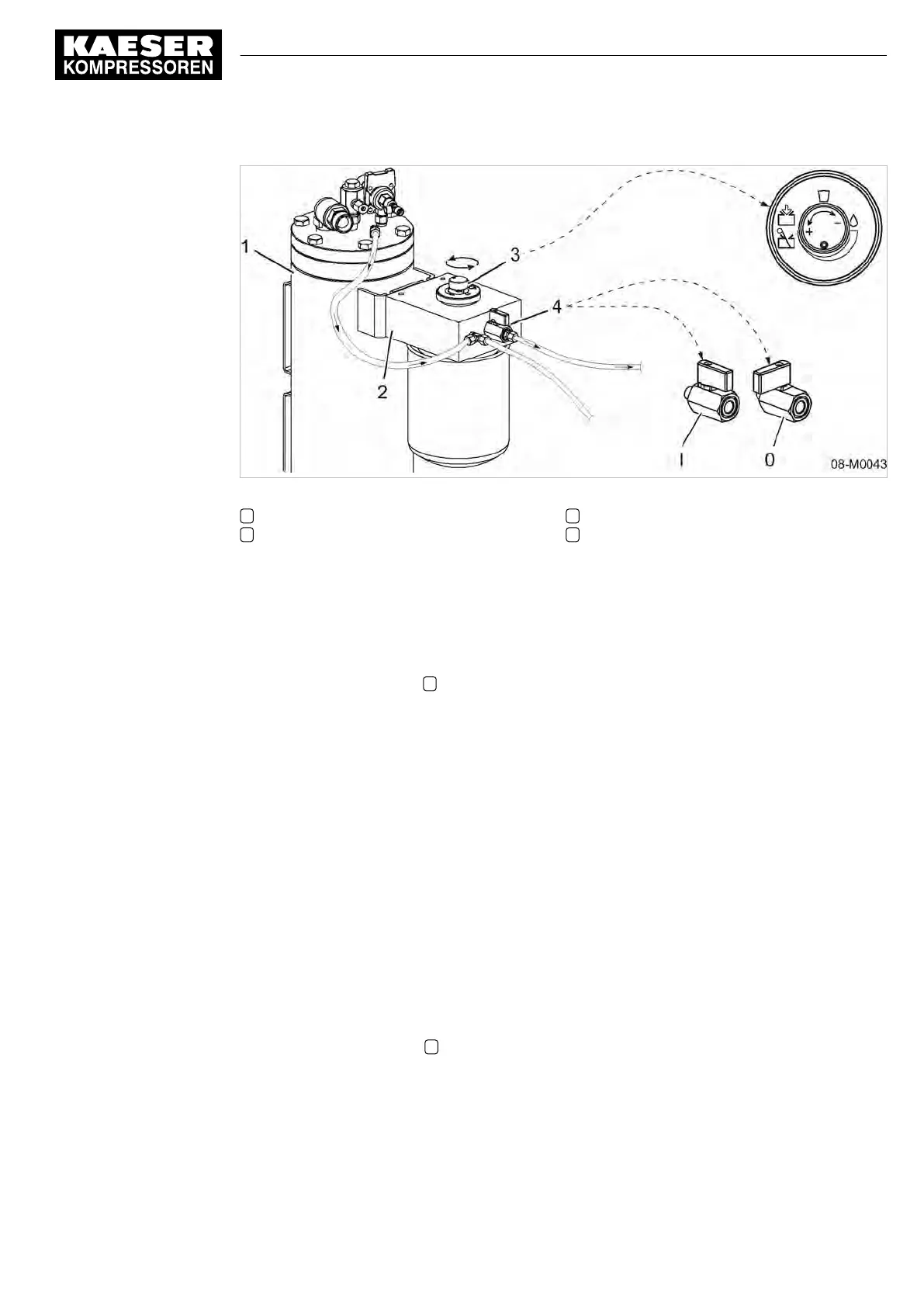

Fig. 33 Setting the tool lubricator
1 Oil separator tank
2 Tool lubricator
3 Metering knob
4 Shut-off valve
I – open
0 – closed
➤ Open the canopy.
Adding lubricating oil
1.
Open the shut-off valve 4
.
2.
Close the canopy.
Setting the oil flow
The amount of oil the compressed air should contain depends on the application and must be de‐
termined by the user. It depends on the nature of the air consumers and the supply hoses.
The metering valve controls the flow of oil into the air.
■ Turning clockwise: reduces the oil flow.
■ Turning counter-clockwise: increases the oil flow.
1. Set the required oil flow.
2. Close the canopy.
Further information Fill the tool lubricator with suitable oil (see chapter 10.8.1)
Shutting off lubricating oil
1. Close the shut-off valve 4
.
2.
Close the canopy.
8 Operation
8.3 Operating the tool lubricator
