4 Design and Function
4.1 Bodywork
Bodywork is understood to be the exterior of the machine mounted on the chassis.
The bodywork has several functions when it is closed:
■
Weather protection
■ Sound insulation
■ Guarding against touching
■ Cooling air flow
Safe and reliable operation is only ensured when the bodywork is closed.

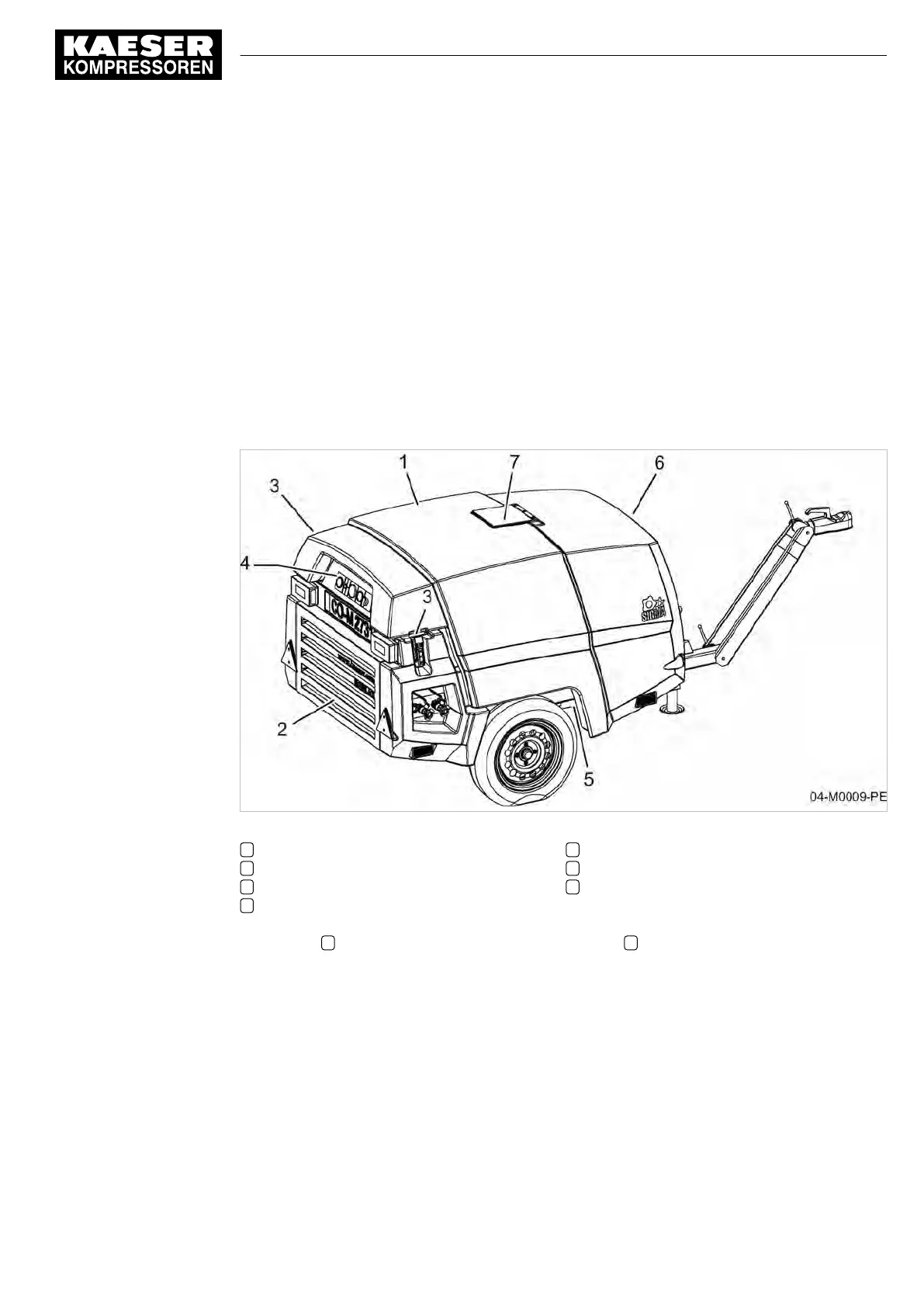

Fig. 3 Bodywork
1 Canopy
2 Cooling air inlet
3 Snap fastener
4 Instrument panel
5 Lower body
6 Cooling air outlet
7 Cover for lifting eye
The canopy 1 can be opened when all the snap fasteners 3 are released.
The canopy opens independently.
Two gas-filled springs maintain the opened position of the canopy.
The bodywork is not suitable for the following uses:
■
Walking on, standing, or sitting on.
■ As resting place or storage for any kind of load.
