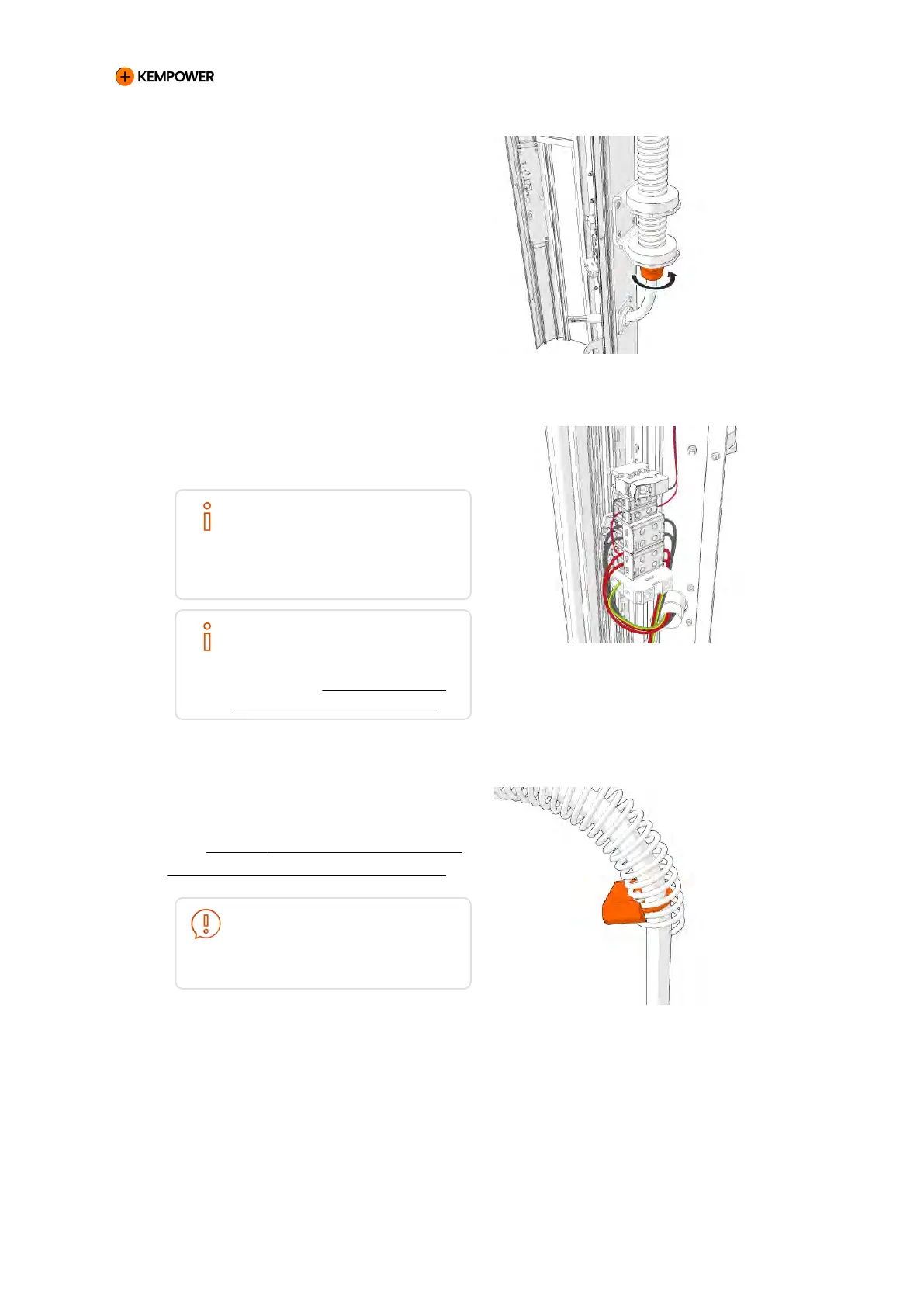

10. Tighten the cable bushing of the
charging cable below the spring
holder.
•
Depending on the charging
cable, the size of the cable
bushing is 55–68 mm
11. Connect the wires to the
terminals.
NOTE
Tighten each screw
terminal to the correct torque.
The tightening torque is
marked on the terminal block.
NOTE
For the control signal wire
colors of different charging
cables, see 12: Control signal
wires of the charging cable.
12. Lock the charging cable in
place inside its support spring.
See 5.1.13.1: Locking the charging
cable inside its support spring.
NOTICE
Do not overtighten the
cable clamp. Overtightening
damages the charging cable.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 81 REV 2.40 EN 04-2024
