3.10
Operations in a Single RF Deck/ Dual Control Head Structure
By connecting 2 Control Heads to 1 mobile transceiver (RF Deck), a Single RF Deck/ Dual Control Head system can be
structured.
“RF Deck” indicates NX-5700/ NX-5800/ NX-5900, and “Control Head” indicates Basic Panel (KCH-19), Featured Panel
(KCH-20R), and Handheld Control Head (KCH-21R).

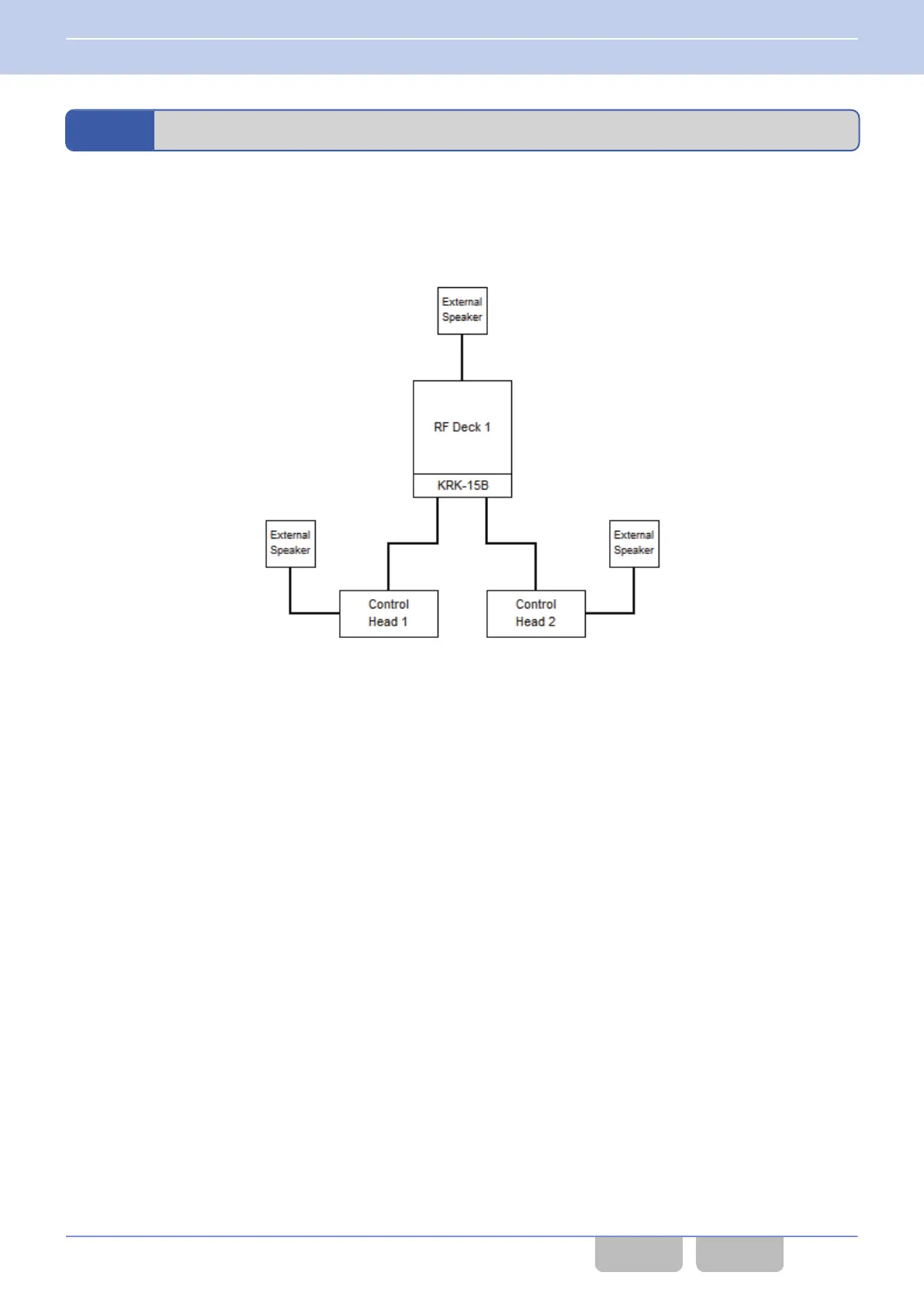

Figure 3-1 Diagram of the Single RF Deck/ Dual Control Head Structure
0
If the structure for Mobile is Dual Control Head, the same content appears on each display as the basic behavior, and
each
Control Head behaves together according to the operations of each Control Head. However, each display does not
display the same content depending on the functions such as Transmit Audio Monitor.
0
The PF keys are configured to each Control Head and behave.
0
Either Control Head operates the same RF Deck.
0
In the following states, each Control Head displays the same contents (display mirroring) according to the basic behavior
of Dual Control Head operations, and any Control Head can be operated.
0
Standby screen
0
Service mode (except Front Panel Programming Mode and Radio Mode Selection Mode)
0
Display while Zeroizing
0
When without password entry of Transceiver Password Mode (while displaying Input Password)
0
When without password entry of Front Panel Programming Mode (while displaying Input Password)
0
Mobile Relay Station Mode
0
The operation and display specifications in a Dual Control Head structure does not depend on the combination of Control
Heads. Even if the Control Heads to be used are the same type or different types, the specifications are the same.
3 BASIC OPERATIONS
3.10 Operations in a Single RF Deck/ Dual Control Head Structure
Common FUNC (K, F)/Ver 2.20 73
