16.6
Modulation Line
In a Multi RF Deck/ Multi Control Head structure, audio input by the Mic PTT, by the Ext PTT, and by Bluetooth are available
for the Modulation Line. (Refer to EXTERNAL PORTS.)

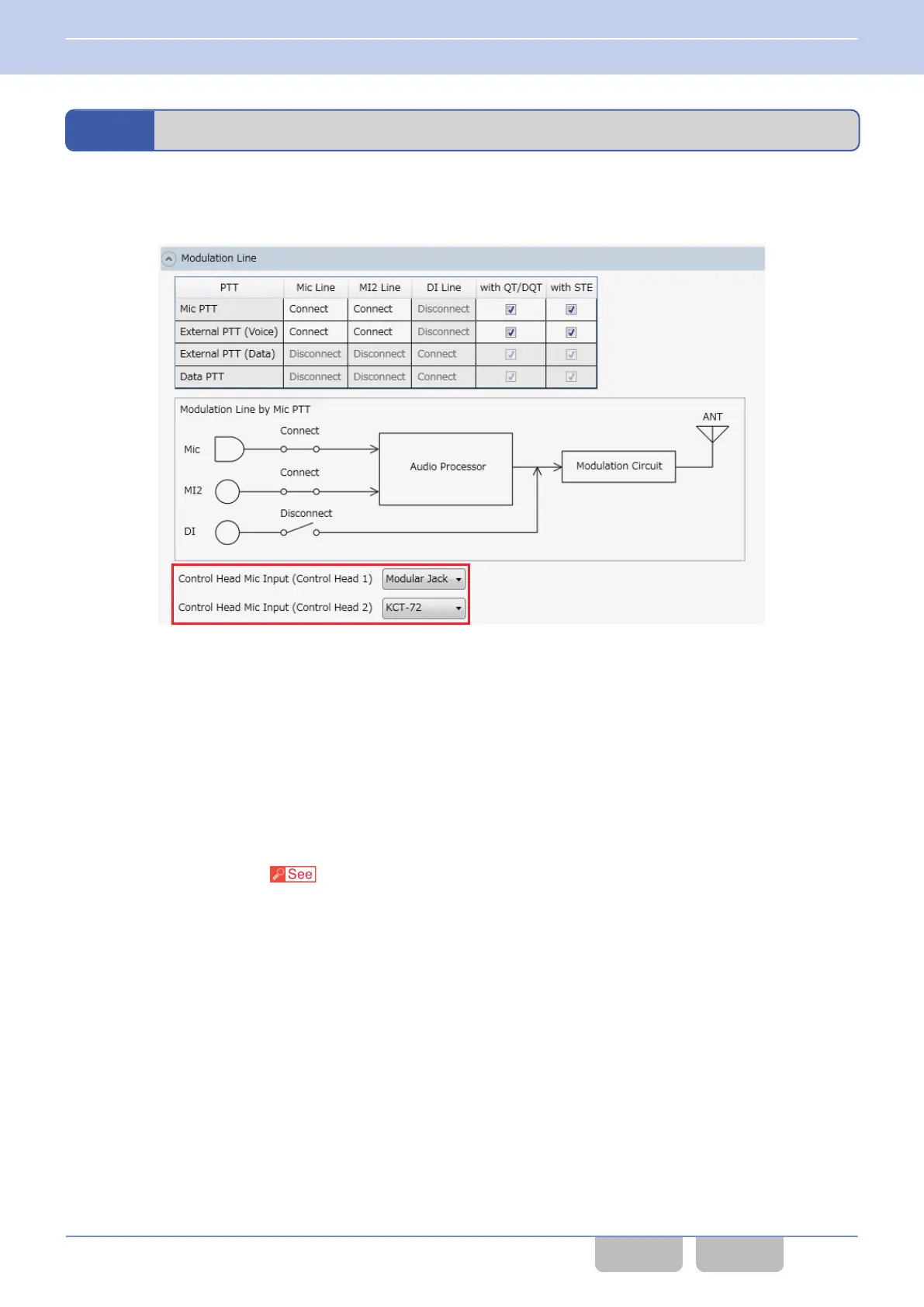

The following figure is the configuration screen of Modulation Line of KPG-D1/ D1N:
Figure 16-34 Modulation Line
Either “Modular Jack” or “KCT-72” is selected for the Mic Line of a Control Head. By using KCT-72, the connection of the
External
Mic (KCT-73MIC) becomes available. The Mic Input from the Modular Jack and the Mic Input from KCT-72 cannot
be used at the same time.
A Control Head is equipped with a Bluetooth module. Refer to “BLUETOOTH COMMUNICATION” for the details of
Bluetooth.
The following describes the Modulation Line (Mic Line) enabled when the Mic PTT, the External PTT, or the PTT of a
Bluetooth headset is operated.
Configuration using KPG-D1/ D1N
Configuring Modulation Line
(
Transceiver Settings > Extended Function > Mobile)
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.6 Modulation Line
