Kenwood NX-5200K3 Common Function Reference

Adjusting the Output Level of the External Speaker (Unselected Speaker Offset)
Unselected Speaker Offset is the function to lower the output level of the external speaker connected to the Unselected
RF Deck. This function is used to improve the audio of the Selected RF Deck.
Entering
Menu Mode by pressing the Menu key, and then executing “Unselected Speaker Offset” can switch the offset value
(0 dB, -3 dB, -9 dB) of the audio output level of the external speaker connected to the Unselected RF Deck.
0
0 dB is the same output level as the output level of the Selected RF Deck.
0
-3 dB is output level 3 dB lower than the output level of the Selected RF Deck.
0
-9 dB is output level 9 dB lower than the output level of the Selected RF Deck.
Ext.
SP
RF Deck 1
(Selected RF
Deck)
RF Deck 2
(Unselected
RF Deck)
Control Head
1
Control Head
2
Ext.
SP
Ext.
SP
RF Deck 1
(Selected RF
Deck)
RF Deck 2
(Unselected
RF Deck)
Control Head
1
Control Head
2
Ext.
SP
The received audio of the
Selected RF Deck
The received audio of the
Selected RF Deck
The received audio of the
Selected RF Deck
The received audio of the
Selected RF Deck
The received audio of the
Selected RF Deck
The received audio of the
Unselected RF Deck
The received audio of the
Selected RF Deck
The received audio of the
Unselected RF Deck
⇒
Level lowered by 9 dB
-9 dB
0 dB: Audio emitted from the Ext.SP of the
Unselected RF Deck at the same level as the output
level of the Selected RF Deck
-9 dB: Audio emitted from the Ext.SP of the
Unselected RF Deck at the level lowered by 9 dB from the
output level of the Selected RF Deck

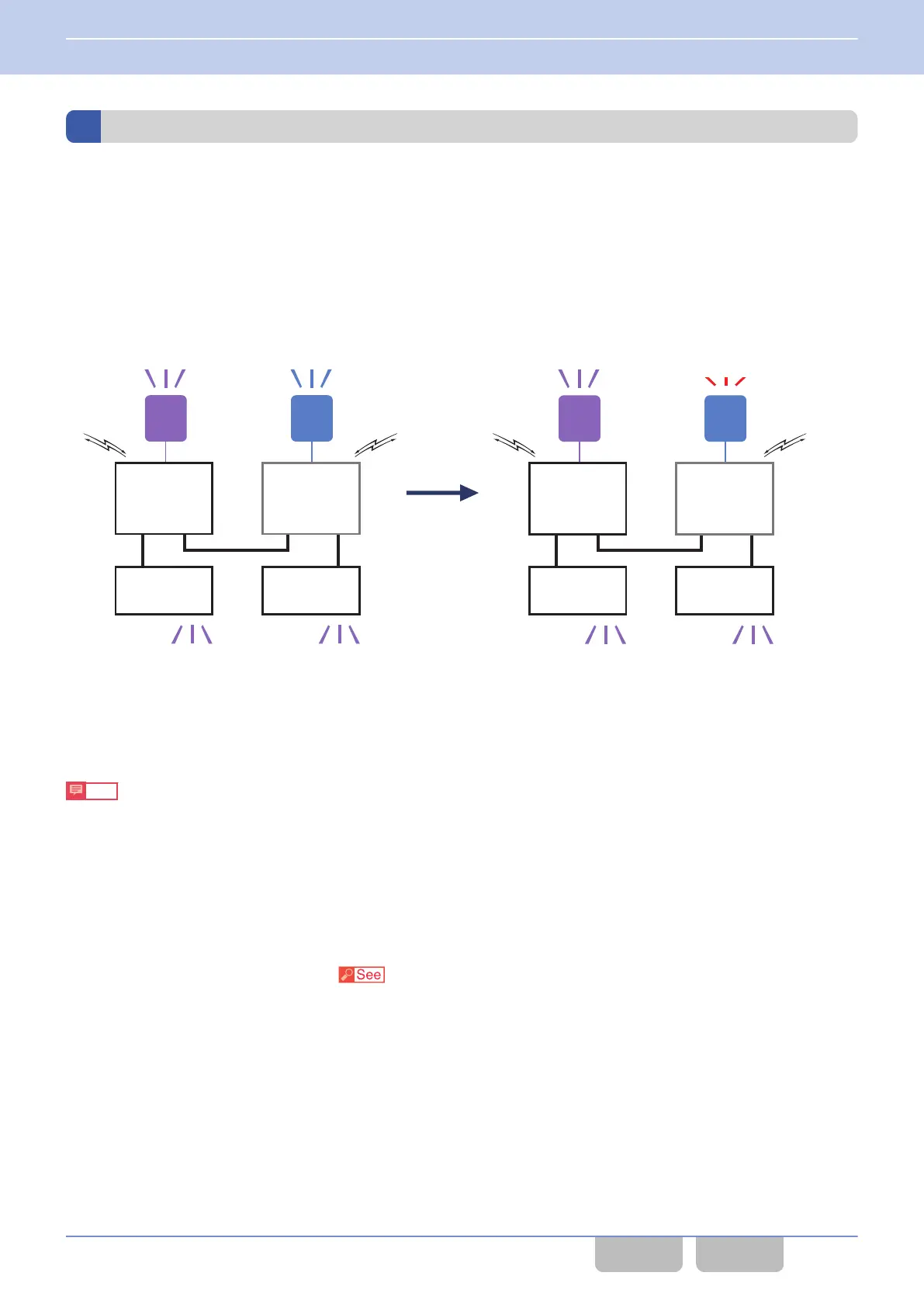

Figure 16-41 Unselected RF Deck Speaker Offset
Note
0
If
a PC command for changing the volume is received from a D-sub 25-pin connector, the volume of the RF Deck to which
the D-sub 25-pin connector is connected is changed regardless of whether the RF Deck is the Selected RF Deck or not,
but the offset configuration continues to be applied.
0
If a device is connected to the Unselected RF Deck by using a Bluetooth connection, the volume offset of the device with
the Bluetooth connection is not applied.
Configuration using KPG-D1/ D1N
Configuring Unselected
Speaker Offset (
Transceiver Settings > Optional Features > Optional Features 1 > Others)
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.7 Audio Function
Common FUNC (K, F)/Ver 2.20 281
