External
Speaker
AUX function executed

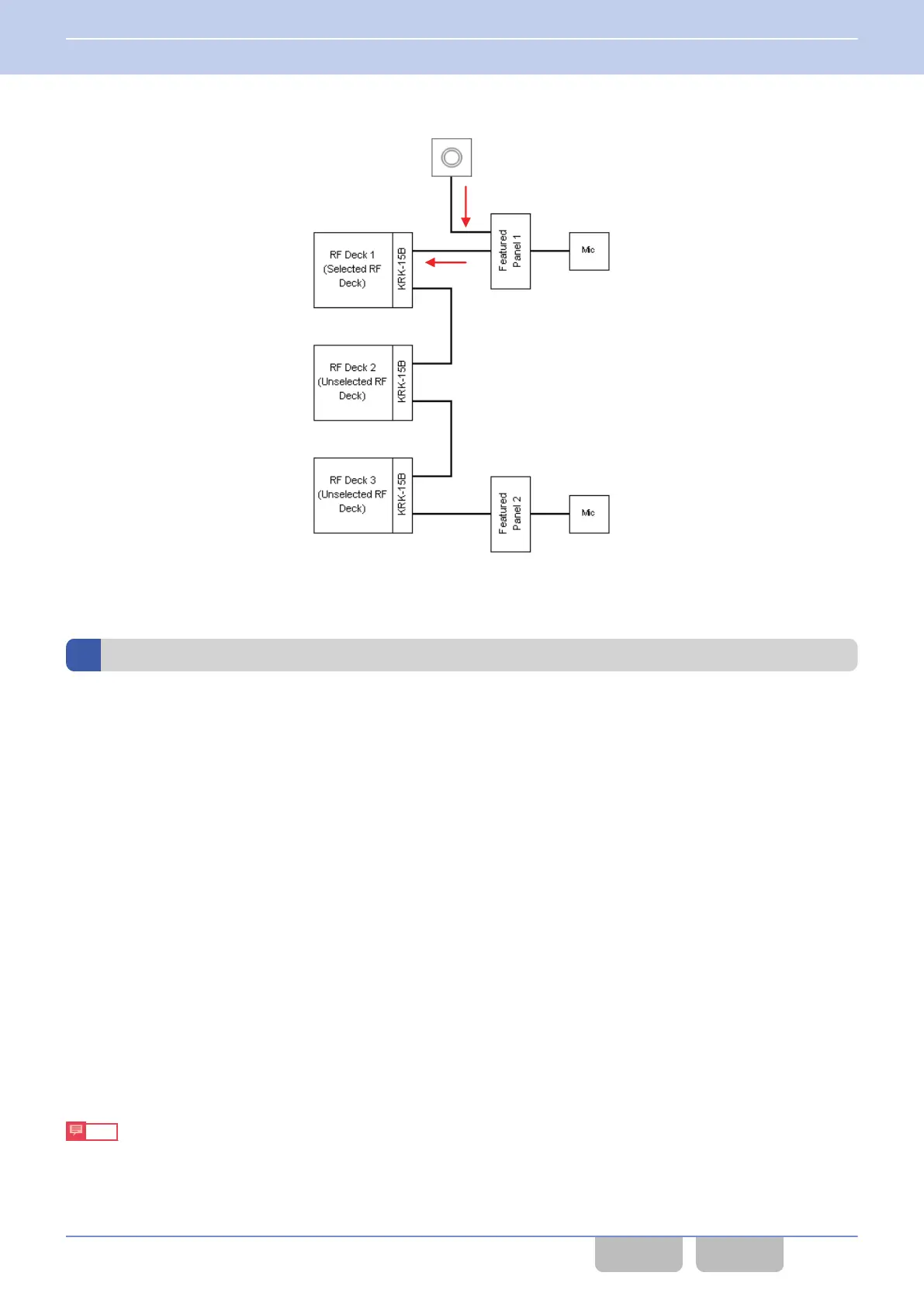

Figure 16-60 Example of When the AUX Input Is Configured for Control Heads
Restrictions When Configuring AUX Input/ Output
0
AUX Input configuration
0
In
a Dual Control Head structure, if a function is configured for one of the Control Heads, the same function cannot be
configured for the other Control Head.
0
In a Multi RF Deck system, the same function can be configured for the D-sub connector of each RF Deck.
0
The functions configured for Control Heads cannot be configured for RF Decks.
0
The functions configured for RF Decks cannot be configured for Control Heads.
0
The following functions can be configured only for one RF Deck or Control Head of all RF Decks and Control Heads:
0
Emergency
0
Mobile Relay Station
0
Light Sense
0
AUX Output configuration
0
In a Multi RF Deck system, no function can be configured for AUX Output of a Control Head.
0
In a Dual Control Head structure, if a function is configured for one of the Control Heads, the same function cannot be
configured for the other Control Head.
0
In a Multi RF Deck system, the same function can be configured for the D-sub connector of each RF Deck.
0
The functions configured for Control Heads cannot be configured for RF Decks.
0
The functions configured for RF Decks cannot be configured for Control Heads.
Note
In a Multi RF Deck system, if configuring the same AUX Input functions for the D-sub 25-pin connector of each RF Deck,
connect an external device to each RF Deck individually.
