Kenwood NX-5200K3 Common Function Reference

5.9
The Icons on the LCD
The following icons are displayed in the icon display area of the LCD:

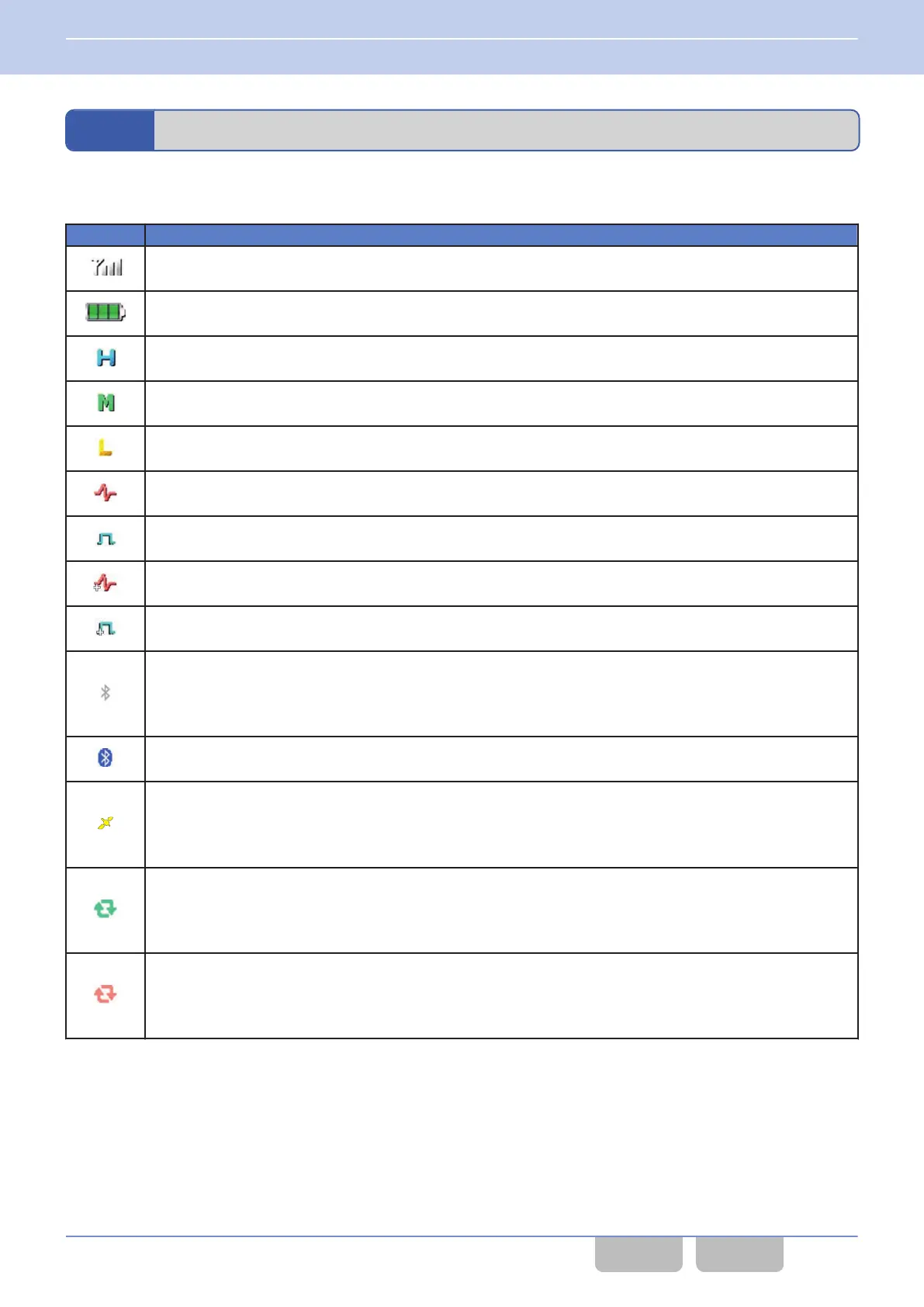

Table 5-2 Icon List
Icons Description
0
RSSI Icon
Indicates the signal strength level.
0
Battery Status Icon (Portable only)
Indicates the battery power level.
0
High Transmit Power Icon
Appears when the channel configured to high power transmission is selected.
0
Medium Transmit Power Icon
Appears when the channel configured to medium power transmission is selected.
0
Low Transmit Power Icon
Appears when the channel configured to low power transmission is selected.
0
Analog Icon
Appears when an analog channel is selected.
0
Digital Icon
Appears when a digital Conventional channel is selected.
0
Analog (Mixed Mode) Icon
Appears when a Mixed channel with “Analog” configured in Transmit Mode
is selected.
0
Digital (Mixed Mode) Icon
Appears when a Mixed channel with “Digital” configured in Transmit Mode
is selected.
0
Bluetooth Icon
Appears when the Bluetooth is enabled. There are 2 states as follows:
Lighted: Bluetooth is enabled
Blinking: Bluetooth is enabled (processing)
0
Bluetooth Connection Icon
Appears when connected to a Bluetooth device.
0
GPS Icon
Appears when the GPS is enabled. There are 2 states as follows:
Lighted: GPS is enabled (positioning state)
Blinking: GPS is enabled (non-positioning state)
0
Scan Icon
The scan status appears. There are 2 states as follows:
Lighted: Scanning
Blinking: Scan is paused
0
Priority Scan Icon
The priority scan status appears. There are 2 states as follows:
Lighted: Priority scan is scanning
Blinking: Priority scan is paused
5 INDICATION AND DISPLAY
5.9 The Icons on the LCD
Common FUNC (K, F)/Ver 2.20 96
