Kenwood NX-5200K3 Common Function Reference

17.4
Removing an RF Deck/ Control Head
The system structure can be changed by removing the Control Heads and RF Decks in a system that is operating.
Removing a Control Head
This section describes the procedure to change a system to a Triple RF Deck/ Single Control Head structure by removing
a Control Head from the system of a Triple RF Deck/ Dual Control Head structure.
Note
A Control Head can be removed with the same procedure when removing the Control Head in a system of the following
RF Deck/ Control Head structures:
0
Dual RF Deck/ Dual Control Head
0
Single RF Deck/ Dual Control Head
1
Turn OFF all RF Decks and Control Heads.
If either Control Head is turned OFF, all RF Decks and Control Heads are turned OFF.
2
Control Head
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B
Power OFF

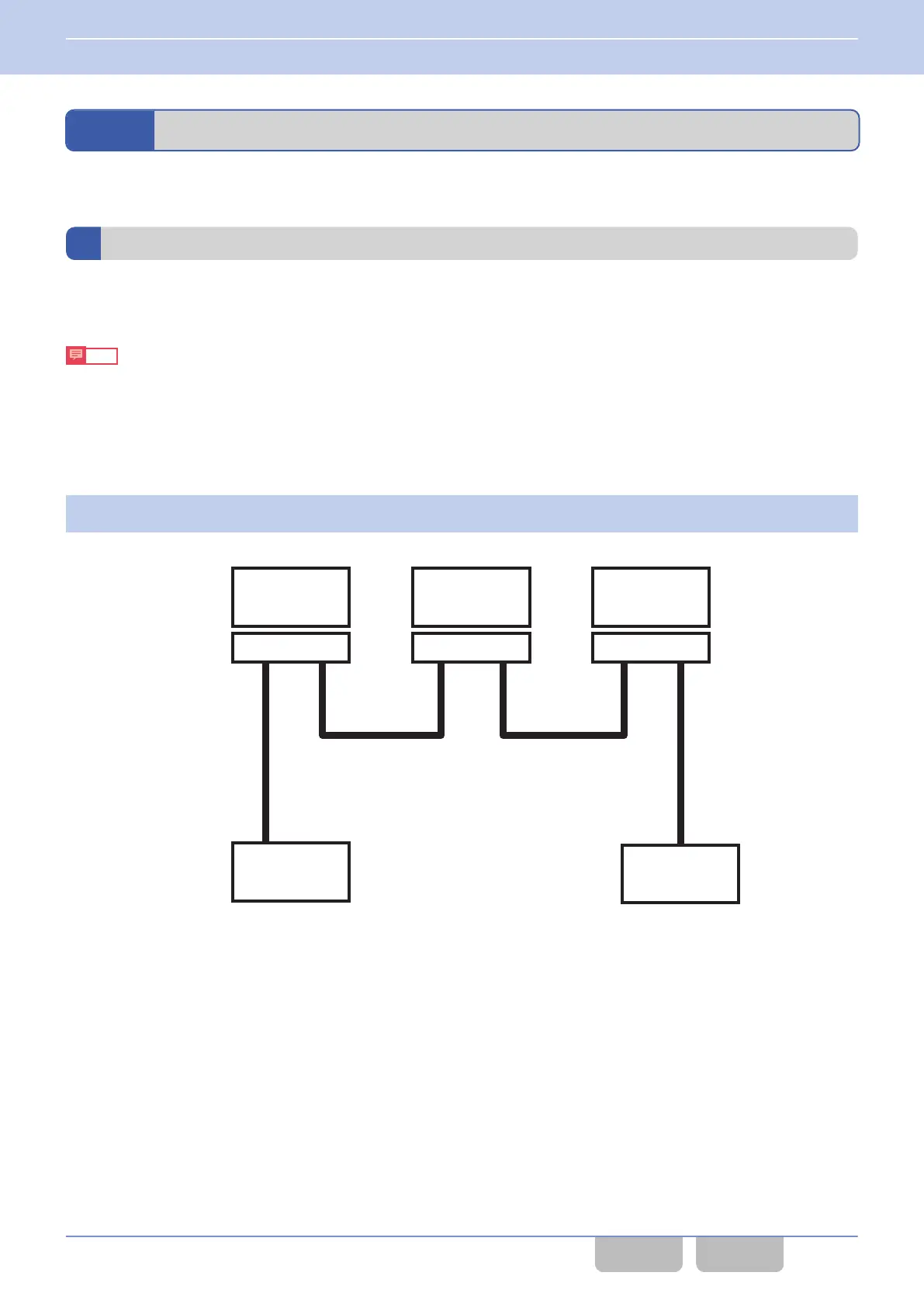

Figure 17-45 Triple RF Deck/ Dual Control Head (Power OFF)
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.4 Removing an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 360
