Receiving
If operating in a Multi RF Deck system, all RF Decks can receive simultaneously. The received audio of the Selected RF
Deck is emitted from the speaker of a Control Head. Similarly, if operating in a Dual Control Head structure, the received
audio of the Selected RF Deck is emitted from the speakers of both Control Heads. Additionally, if an external speaker is
used, the received audio of Unselected RF Decks can be emitted. To emit the received audio from the external speaker
(KES-3
or KES-5) and the speakers of the Control Heads at the same time, “Internal + External” needs to be configured in
External Speaker.
The conditions of the received audio to be emitted when connecting the external speaker to each RF Deck in a Dual RF
Deck/ Dual Control Head structure are as follows:
Case 1: Received by the Selected RF Deck
The audio received by the Selected RF Deck is emitted from Control Head 1, Control Head 2, and the external speaker
connected to the Selected RF Deck. Also, the LED lights green.
Ext.
SP
RF Deck 1
(Selected RF
Deck)
RF Deck 2
(Unselected
RF Deck)
Control Head
1
Control Head
2
Ext.
SP
KCH-20R KCH-19
The received audio of the
Selected RF Deck
The received audio of the
Selected RF Deck
The received audio of the
Selected RF Deck
LED lit green
(Selected RF Deck)
LED lit green
(Selected RF Deck)

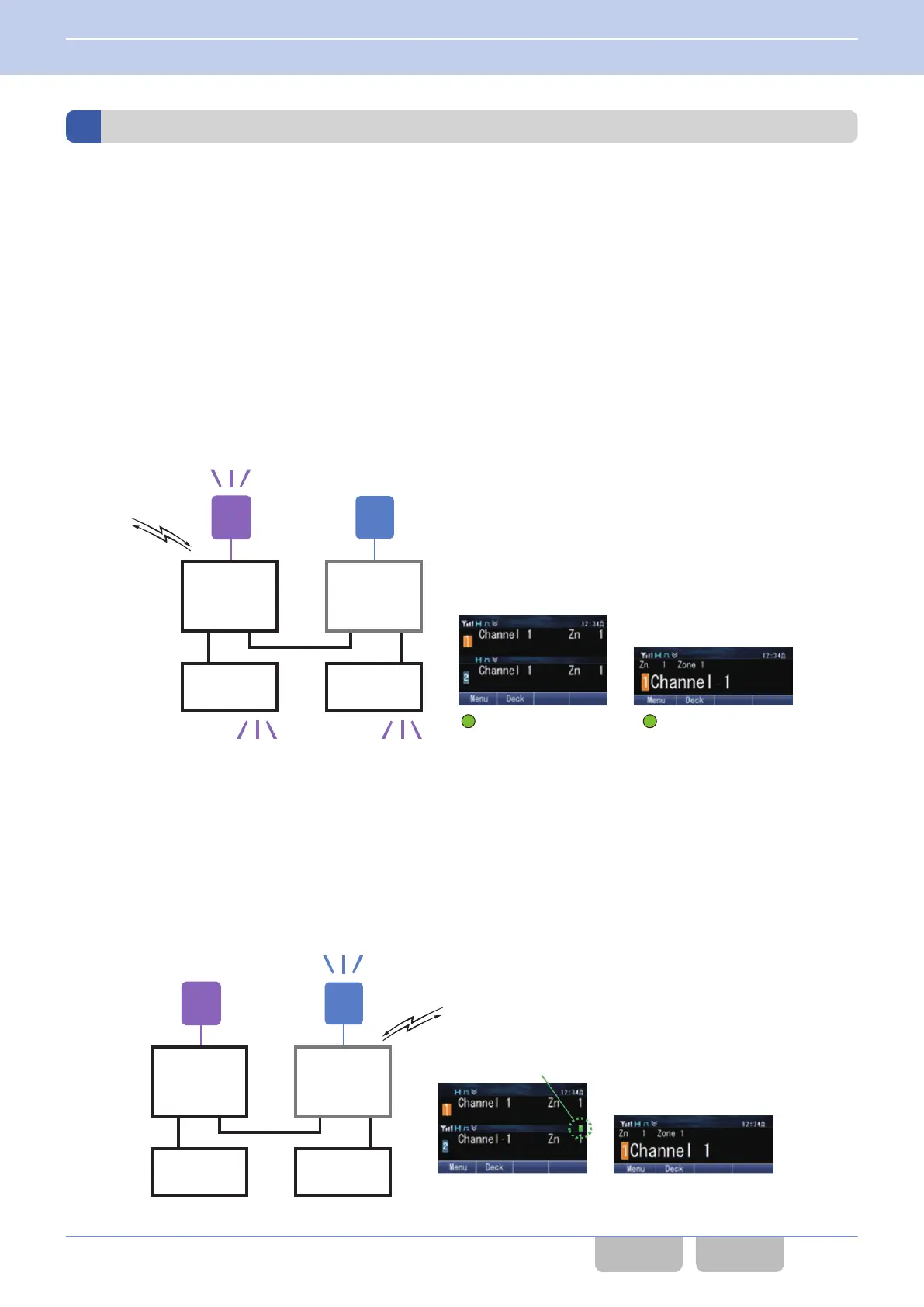

Figure 16-29 Case 1: Received by the Selected RF Deck
Case 2: Received by the Unselected RF Deck
The audio received by the Unselected RF Deck is emitted from the external speaker connected to the Unselected RF Deck.
Also, if KCH-20R is used, the “BusyLED” icon appears alongside of the receiving Unselected RF Deck on the display.
KCH-20R KCH-19
Ext.
SP
RF Deck 1
(Selected RF
Deck)
RF Deck 2
(Unselected
RF Deck)
Control Head
1
Control Head
2
Ext.
SP
The received audio of the
Unselected RF Deck
Busy LED icon: Indicates
that Unselected RF Deck 2 is
receiving
Figure 16-30 Case 2: Received by the Unselected RF Deck
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.5 Basic Operations
Common FUNC (K, F)/Ver 2.20 267
