17.8
Changing Configuration Data of 1 RF Deck While a System in
a Multi RF Deck/ Multi Control Head Structure Is Operating
The configuration data of an RF Deck can be changed while a system in a Multi RF Deck/ Multi Control Head structure is
operating. This section describes the procedure for changing the configuration data of RF Deck 2.
Note
0
The
configuration data of RF Deck 1 and RF Deck 3 can be changed with the same procedure while a system in a Multi
RF Deck/ Multi Control Head structure is operating.
0
If even one piece of the configuration data is changed, the configuration data of all RF Decks and Control Heads needs
to be overwritten.
0
The configuration data of an RF Deck can be changed with the same procedure even if in a system of the following RF
Deck/ Control Head structures:
0
Triple RF Deck/ Single Control Head
0
Dual RF Deck/ Dual Control Head
0
Dual RF Deck/ Single Control Head
1
Edit the configuration data of RF Deck 2 by using KPG-D1/ D1N.
To create new configuration data of RF Deck 2, confirm that the following are configured in Product Information:
0
Multi RF Deck of Feature Selection is enabled.
0
The configuration of Control Head Configuration
matches the actual system structure.
2
Turn ON all RF Decks and Dual Control Heads in a Triple RF Deck/ Dual Control Head structure.
Configuration data can be written to all RF Decks and Control Heads.
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
1
Control Head
2
Control Head
RF Deck 1
KRK-15B
KPG-D1/ D1N

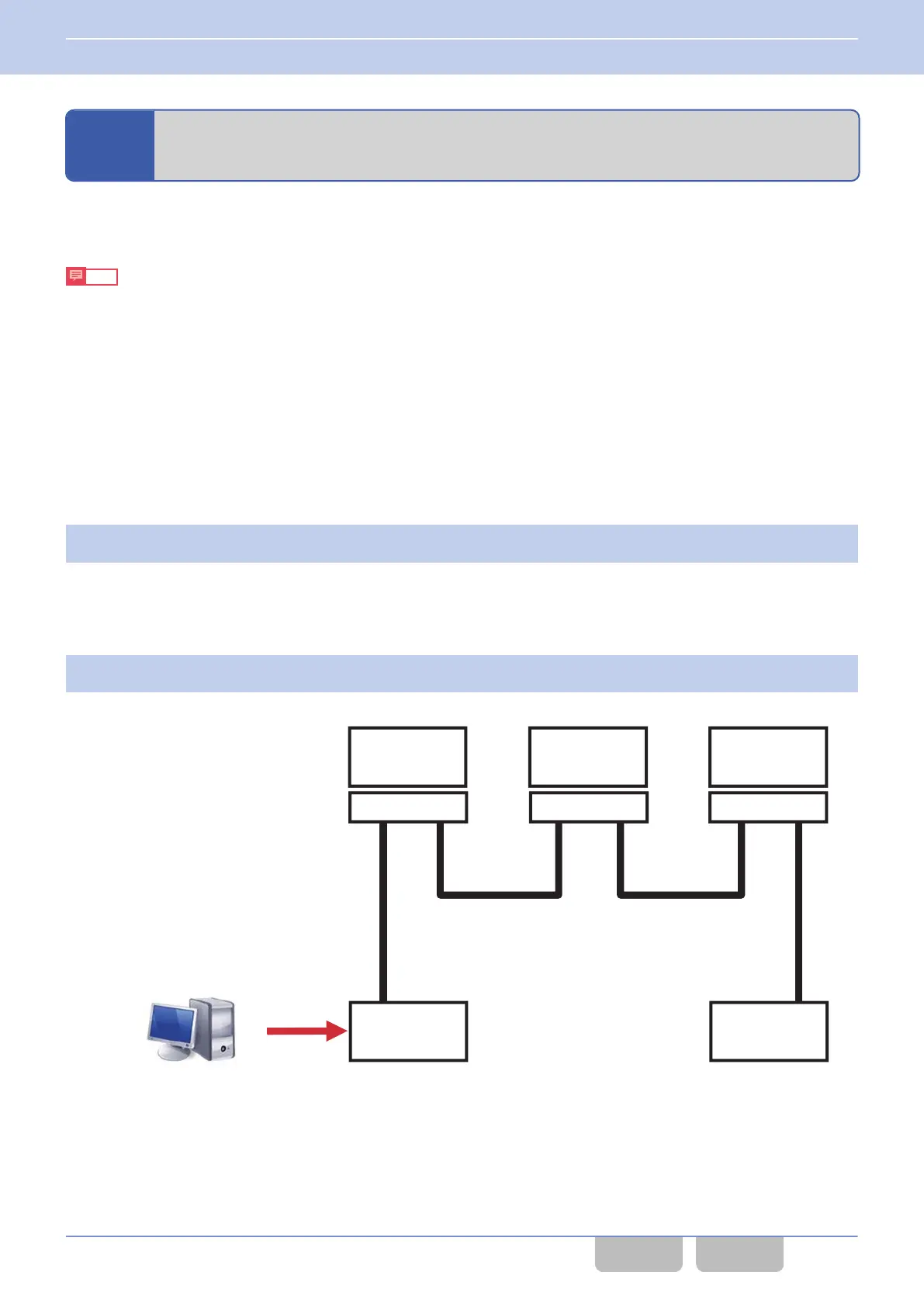

Figure 17-64 Triple RF Deck/ Dual Control Head (FPU Setting)
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.8 Changing Configuration Data of 1 RF Deck While a System in a Multi RF Deck/ Multi Control Head Structure Is Operating
Common FUNC (K, F)/Ver 2.20 372
