Kenwood NX-5200K3 Common Function Reference

Data Dwell Time
Data Dwell Time is the delay time to return to the voice channel when the state of the DTC port or Data PTT port on the
AUX Input port changes from active to inactive. This function can be used when an external device waits to receive an
acknowledgment from the receiving transceiver.
Configuration using KPG-D1/ D1N
Configuring Data Dwell Time ( Transceiver Settings > Extended Function > AUX > AUX Input)
Avoiding Noise and Chattering on the AUX Input Port (Debounce Time)
Debounce Time
is the amount of time to avoid the influence of noise and chattering that occurs on the AUX Input port.
If noise or chattering does not occur while the amount of time configured in Debounce Time elapses, the AUX Input Port
where Debounce is enabled is activated. Using this function prevents the state of the AUX Input port from being erroneously
changed by noise and chattering.
Chattering
Noise
High
Low
Inactive
Debounce
Time
Active

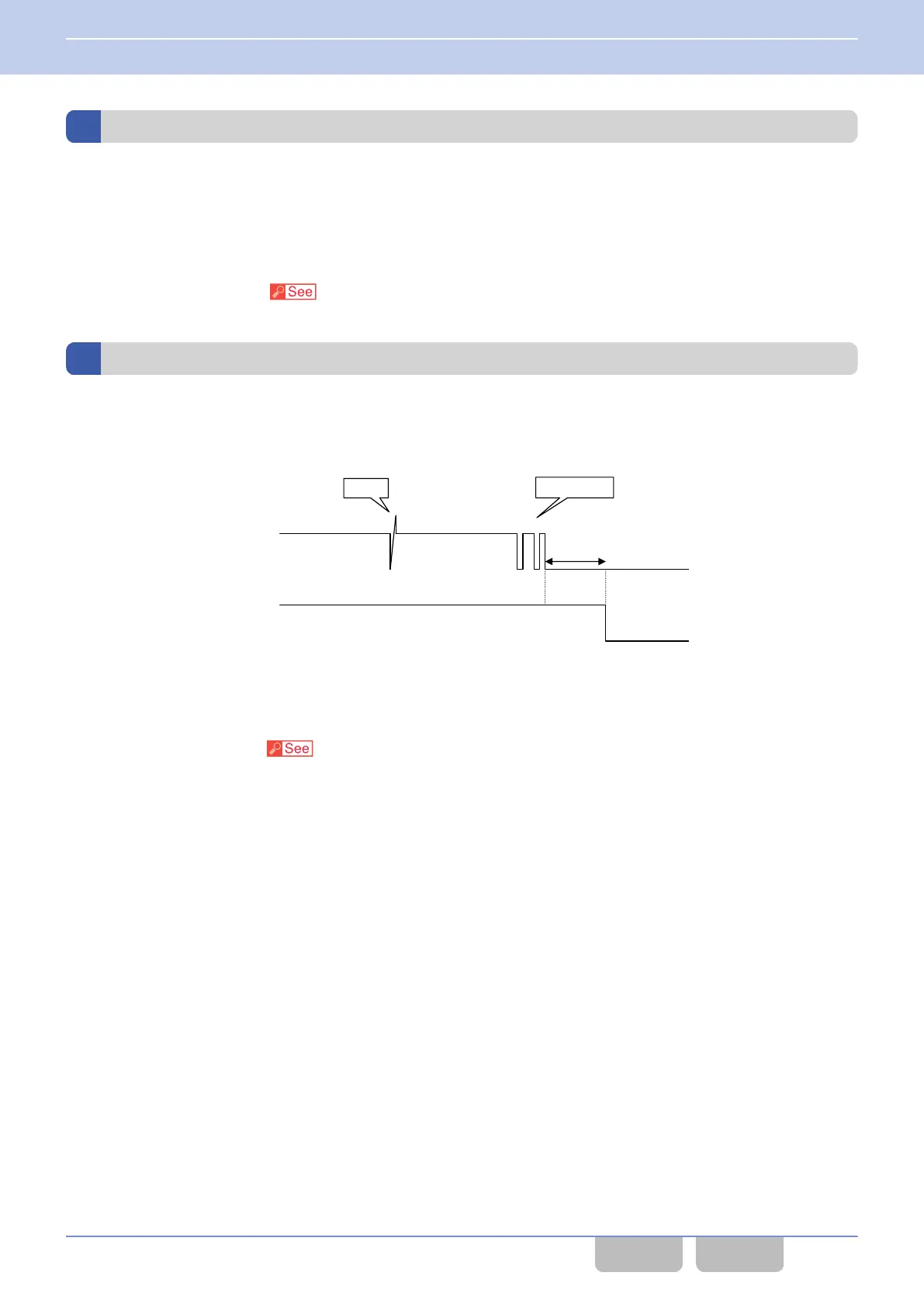

Figure 11-1 Debounce Time
Configuration using KPG-D1/ D1N
Configuring Debounce Time (
Extended Function > AUX > AUX Input)
11 EXTERNAL PORTS
11.2 D-sub 25-pin Connector
Common FUNC (K, F)/Ver 2.20 221
