Supported Models: Mobile
By
connecting 1 or 2 Control Heads to multiple mobile transceivers (RF Decks), 1 Multi RF Deck system can be structured.

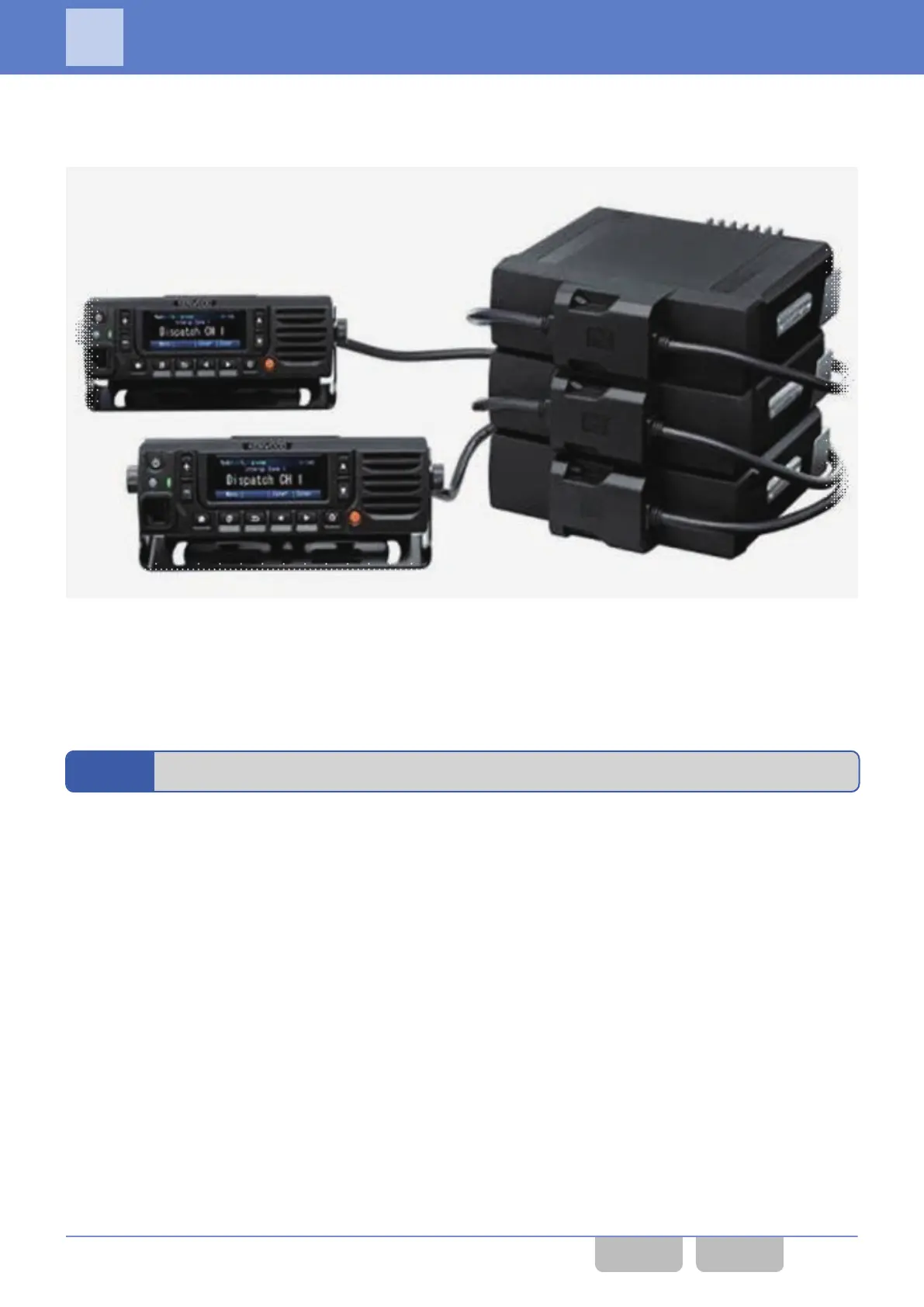

Figure 16-1 Multi RF Deck/Multi Control Head
“RF Deck” indicates NX-5700/ NX-5800/ NX-5900, and “Control Head” indicates Basic Panel (KCH-19), Featured Panel
(KCH-20R), and Handheld Control Head (KCH-21R).
This chapter describes the basic operations when structuring Multi RF Deck/ Multi Control Head and the behavior of each
function.
16.1
Description
In Multi RF Deck/ Multi Control Head, the following functions can be achieved:
0
Transceivers can be operated with a combination of different frequencies such as VHF/ UHF/ 700-800 MHz.
0
Transceivers can be operated with a combination of different protocols (NXDN, P25, etc.).
0
The transceiver can be operated with a combination of different system types, such as Conventional and Trunking.
0
Even
if a failure occurs, such as the deterioration of the sensitivity of the main transceiver, or the lessening of the transmit
power, the other transceivers can be operated continuously as substitute transceivers.
0
Multiple transceivers can receive audio simultaneously and each transceiver can emit the audio individually by connecting
an external speaker.
0
If a Dual Control Head is used, an operator at a remote location can operate the transceiver individually.
0
By using Remote Kit for Head (KRK-14H), Remote Kit for RF Deck (KRK-15B), and Remote Control Cable (KCT-71), a
system can be structured with a maximum of 2 Control Heads and a maximum of 3 RF Decks.
0
In a Multi RF Deck system, a Control Head can operate each RF Deck.
0
If KCH-20R or KCH-21R is used, the channel information of multiple connected RF Decks can be displayed on the
transceiver display.
16 MULTI RF DECK/ MULTI CONTROL HEAD
16
MULTI RF DECK/ MULTI CONTROL HEAD
Common FUNC (K, F)/Ver 2.20 247
