Configuring the FPU Data and Writing the FPU Data to Each RF Deck
FPU data that supports Multi RF Deck/ Multi Control Head can be created by using KPG-D1/ D1N having firmware version
1.60 or later.
For example, this section describes the procedure to create FPU data for Triple RF Deck/ Dual Control Head.
The frequency configuration is UHF for RF Deck 2 and 700/ 800 MHz for RF Deck 3. Create FPU data for each RF Deck
(frequency).
Note
The procedure to write FPU data for Single RF Deck/ Dual Control Head differs from the procedure to write FPU data for
Multi RF Deck/Multi Control Head.
1
Make
the system in a Single RF Deck/ Single Control Head structure, and write FPU data to each RF Deck.
RF Deck 1
(N X-5*00)
Control Head1 Control Head2
KRK-15B
RF Deck 2
(N X-5*00)
KRK-15B
RF Deck 3
(N X-5*00)
KRK-15B
KRK-14H
Basic Panel
(KCH-19)
KRK-14H
Basic Panel
(KCH-19)
(KCH-20R)
Basic Panel
KRK-15B
Dip SW
KRK-14H or KCH-20R
Dip SW
KCT-71
KPG-D1/D1N

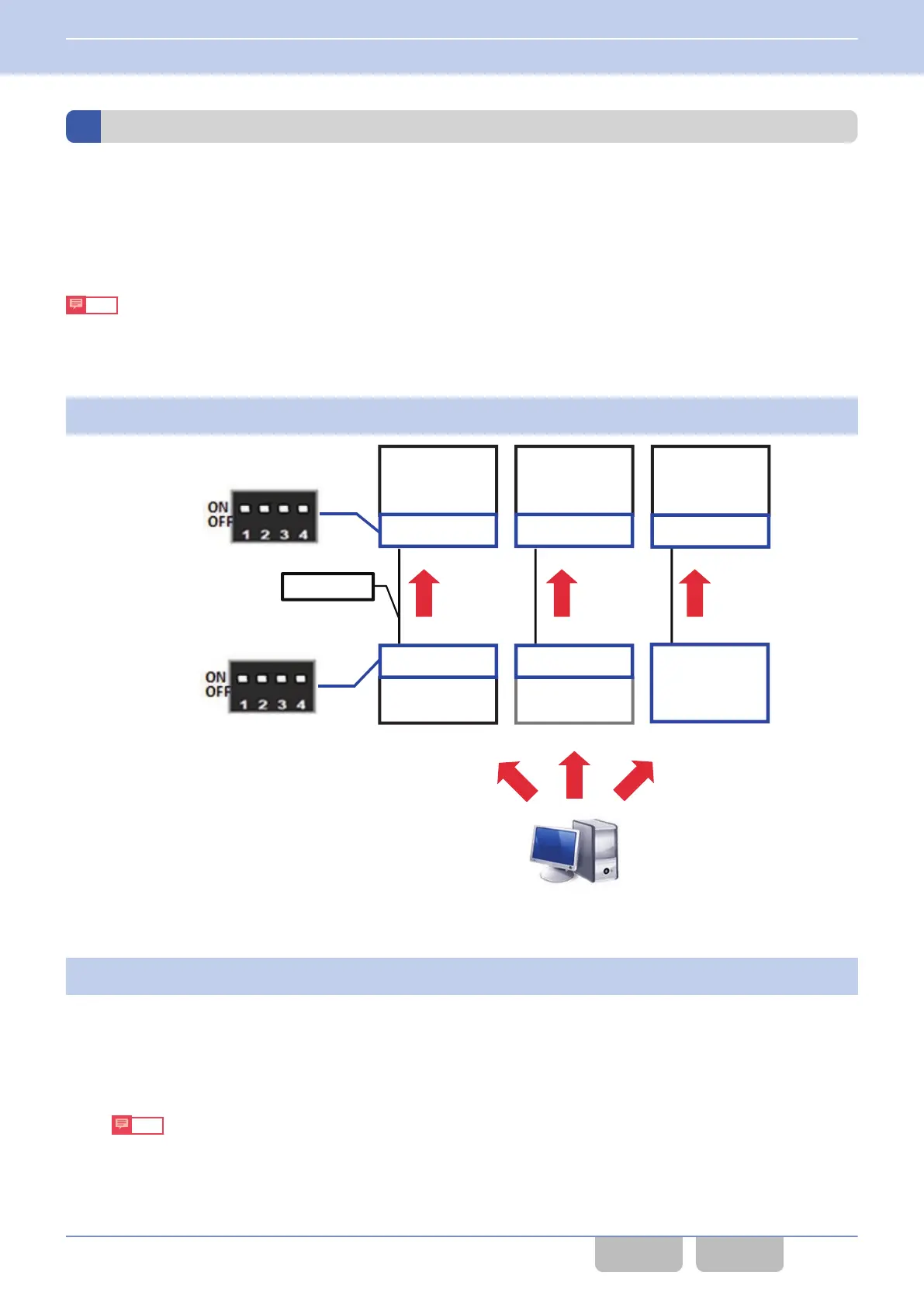

Figure 16-6 Single RF Deck/ Single Control Head
2
Create FPU data by using KPG-D1/ D1N.
For example, create FPU data for VHF.
0
Specify Model Name and enable Multi RF Deck in Product Information.
0
Select the Control Head to be connected to RF Deck 1 from Control Head 1.
0
Select the Control Head to be connected to RF Deck 2 from Control Head 3.
Note
To write FPU data even when connecting a Featured Panel to Control Head 2, a Basic Panel needs to be connected
to
write the FPU data. If Basic Panel is configured for Control Head 1 in the FPU data configuration, the FPU data
cannot be written with a Featured Panel connected.
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.4 Configuring the Initial Configuration
Common FUNC (K, F)/Ver 2.20 252
