Kenwood NX-5200K3 Common Function Reference

2
Remove the Control Head.
Remove the Control Head and KCT-71 from a Multi RF Deck system.
Control Head
2
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
Control Head
2
Removal

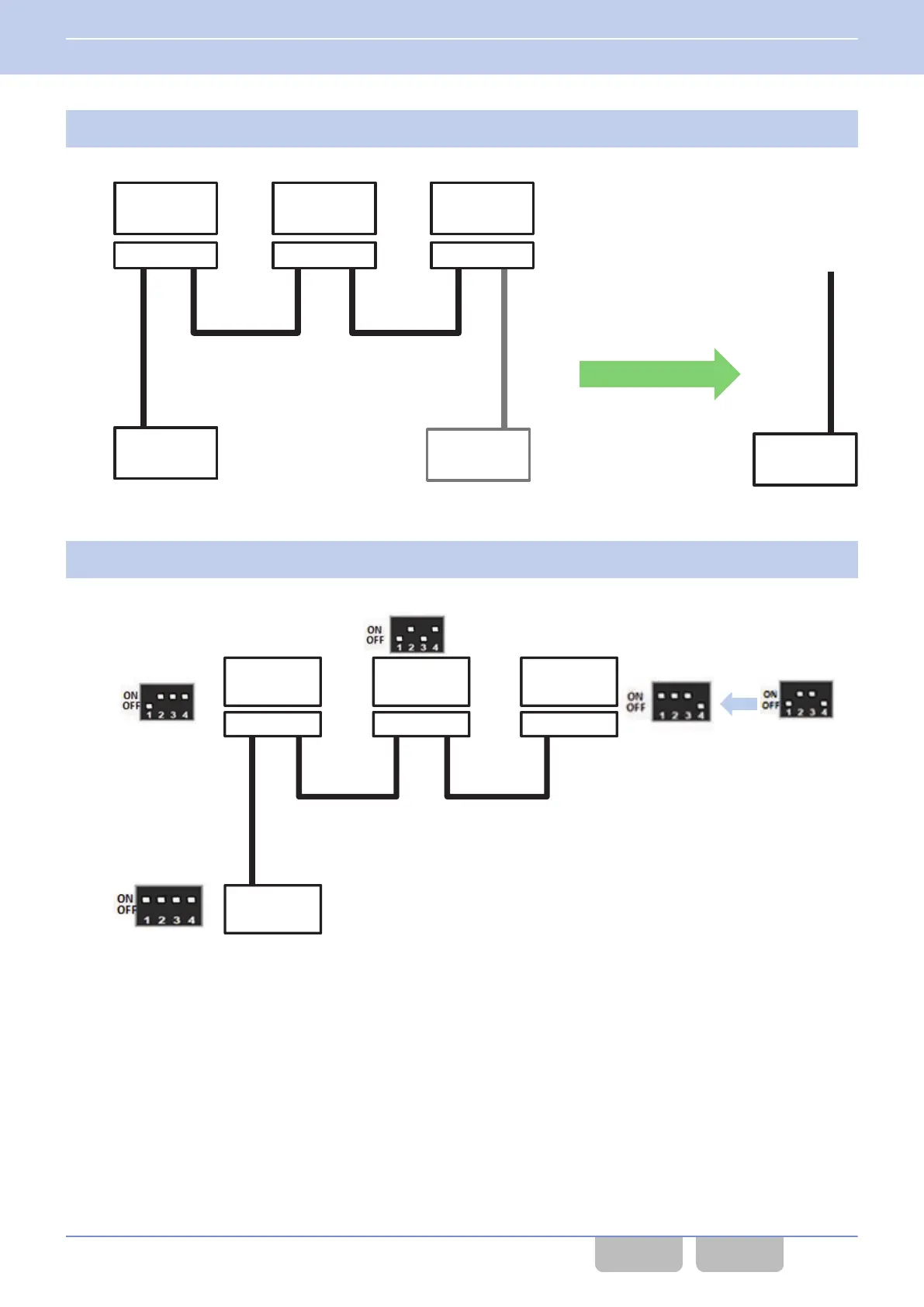

Figure 17-46 Removal of Control Head 2/ KCT-71
3
Change the DIP switch.
Change the DIP switch to the Triple RF Deck/ Single Control Head configuration.
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
After Change Before Change
Figure 17-47 DIP Switch Configuration Triple RF Deck/ Single Control Head
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.4 Removing an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 361
