Kenwood NX-5200K3 Common Function Reference

4
Turn ON all RF Decks and Control Heads.
If a Control Head is turned ON, all RF Decks are also turned ON.
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B

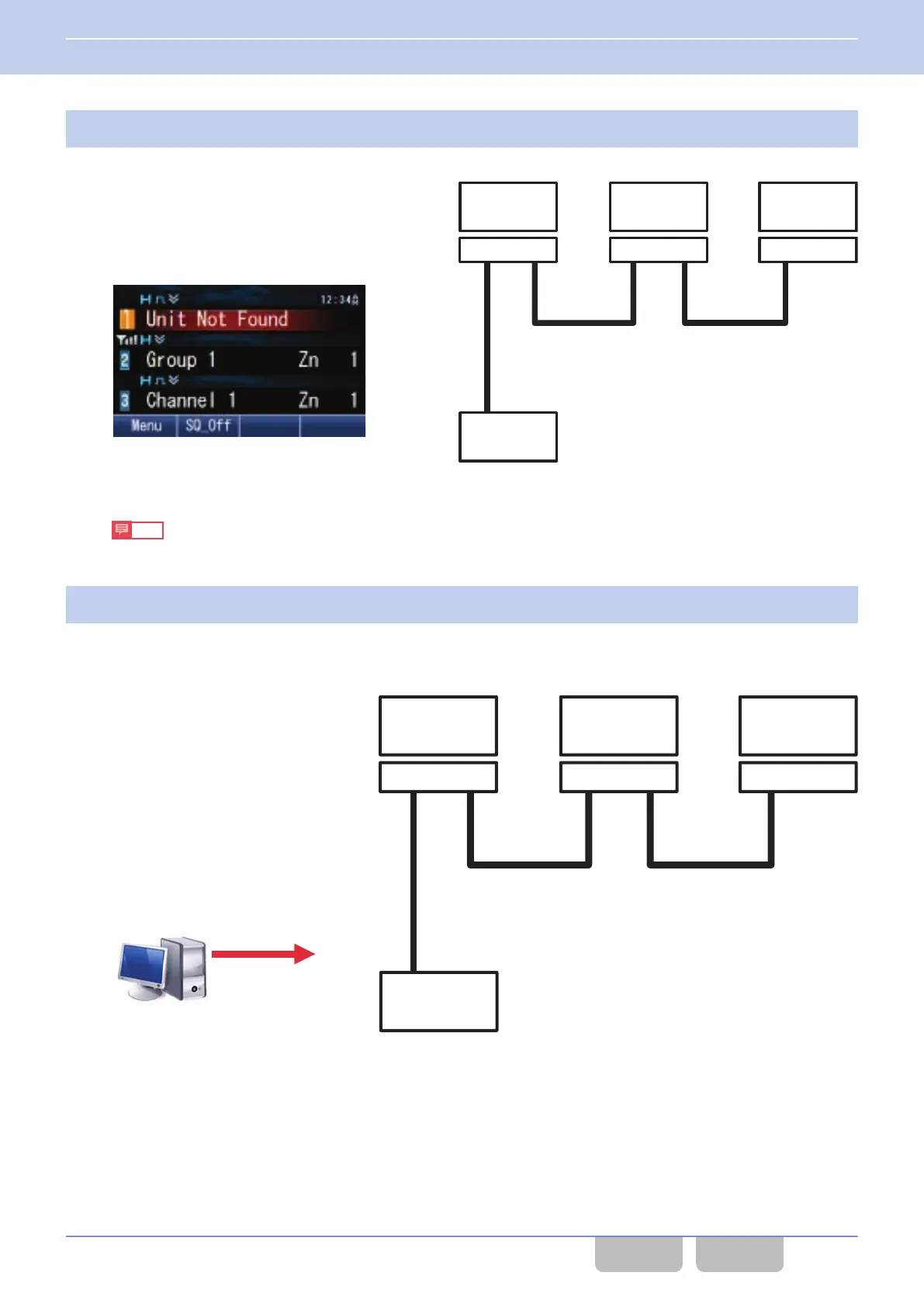

Figure 17-48 Triple RF Deck/ Single Control Head (Power ON)
Note
“Unit Not Found” appears on the screen of Control Head 1 by the removal of Control Head 2.
5
Write the FPU data.
The FPU data for Triple RF Deck/ Single Control Head is written in a Multi RF Deck system. Always write the FPU
data
in a Multi RF Deck system. Refer to “Configuration in KPG-D1/ D1N If Control Heads Are Switched” for writing
configuration data.
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
KPG-D1/ D1N
Figure 17-49 Triple RF Deck/ Single Control Head (FPU Setting)
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.4 Removing an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 362
