Kenwood NX-5200K3 Common Function Reference

Case 2: Transmitting by the External PTT connected to a D-sub connector
If the External PTT is connected to all RF Decks, each RF Deck transmits individually.
If the External PTT connected to the D-sub connector of the Selected RF Deck is operated, the behavior is the same as
that of Case 1.
If the External PTT connected to the D-sub connector of an Unselected RF Deck is operated, the Unselected RF Deck
transmits, and the “TX LED” icon appears alongside of the transmitting Unselected RF Deck on the display of KCH-20R.
Ext.
PTT
Ext.
PTT
Ext.
PTT
KCH-20R KCH-19
Mic
RF Deck 1
(Selected RF
Deck)
RF Deck 2
(Unselected
RF Deck)
Control Head
1
RF Deck 3
(Unselected
RF Deck)
Control Head
2
Mic
ON
TX LED icon: Indicates
that Unselected RF Deck 3 is
transmitting

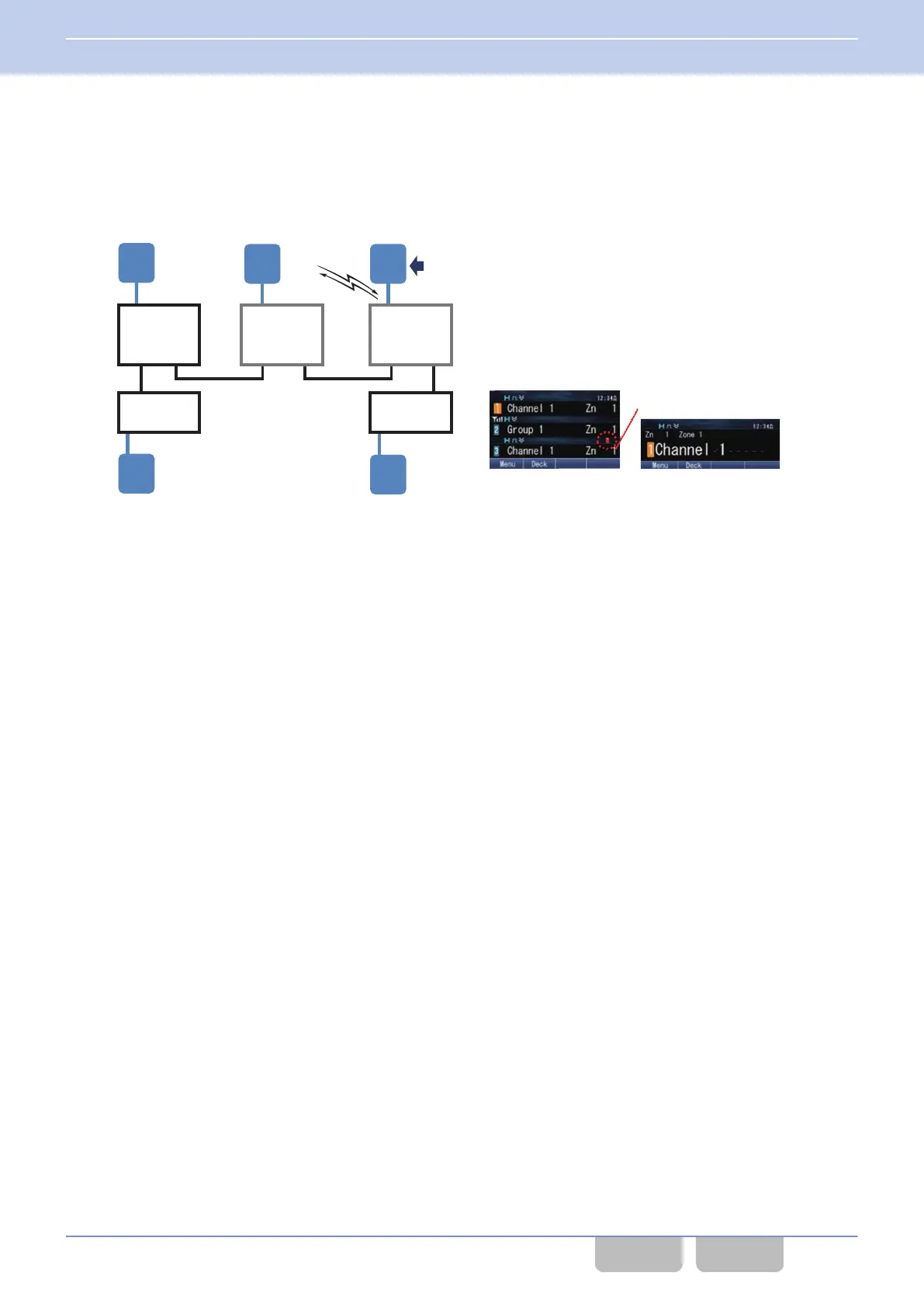

Figure 16-33 Case 2: Transmitting by the External PTT connected to a D-sub connector
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.5 Basic Operations
Common FUNC (K, F)/Ver 2.20 269
