Case 1: Without Bluetooth

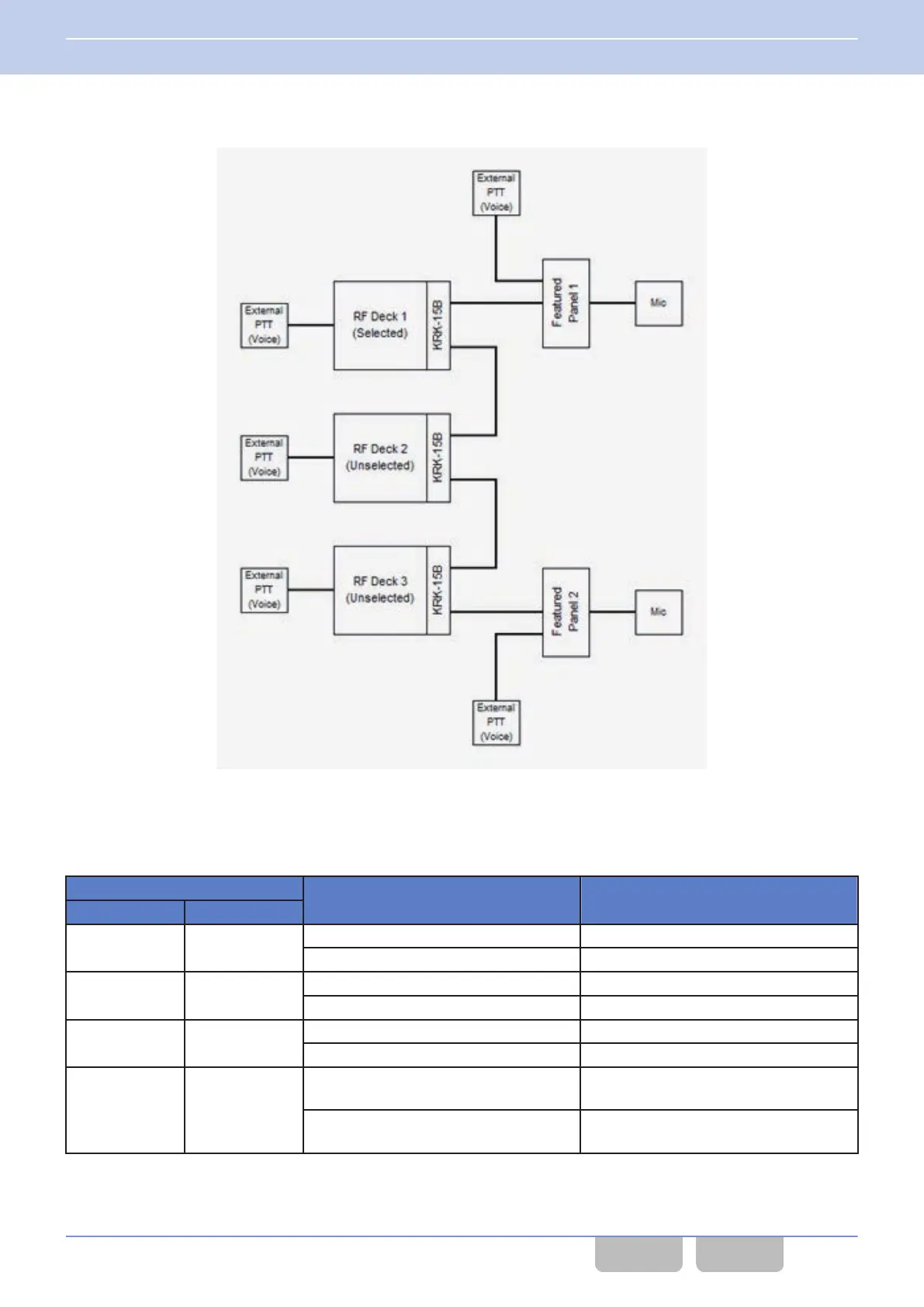

Figure 16-35 Case 1: Without Bluetooth
The
Modulation Line configuration of the Mic PTT of KPG-D1/ D1N and the Mic Lines enabled when the PTT (microphone)
switch of Control Head 1 or Control Head 2 is pressed are as follows:
Table 16-2 Mic Line (Mic PTT) (Without Bluetooth)
Modulation Line Setting
Operation Mic Input
Mic Line MI2 Line
Disconnect Disconnect
Control Head 1 - [PTT] None
Control Head 2 - [PTT] None
Connect Disconnect
Control Head 1 - [PTT] Control Head 1 - Mic Line
Control Head 2 - [PTT] Control Head 2 - Mic Line
Disconnect Connect
Control Head 1 - [PTT] Selected RF Deck - MI2 Line
Control Head 2 - [PTT] Selected RF Deck - MI2 Line
Connect Connect
Control Head 1 - [PTT]
Control Head 1 - Mic Line
Selected RF Deck - MI2 Line
Control Head 2 - [PTT]
Control Head 2 - Mic Line
Selected RF Deck - MI2 Line
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.6 Modulation Line
