Horn Alert Logic Signal
Horn Alert Logic Signal is the function to activate the Horn Alert port depending on the configuration when Horn Alert
functions.
The
manner in which the Horn Alert port is activated when the Horn Alert functions can be configured using KPG-D1/ D1N.

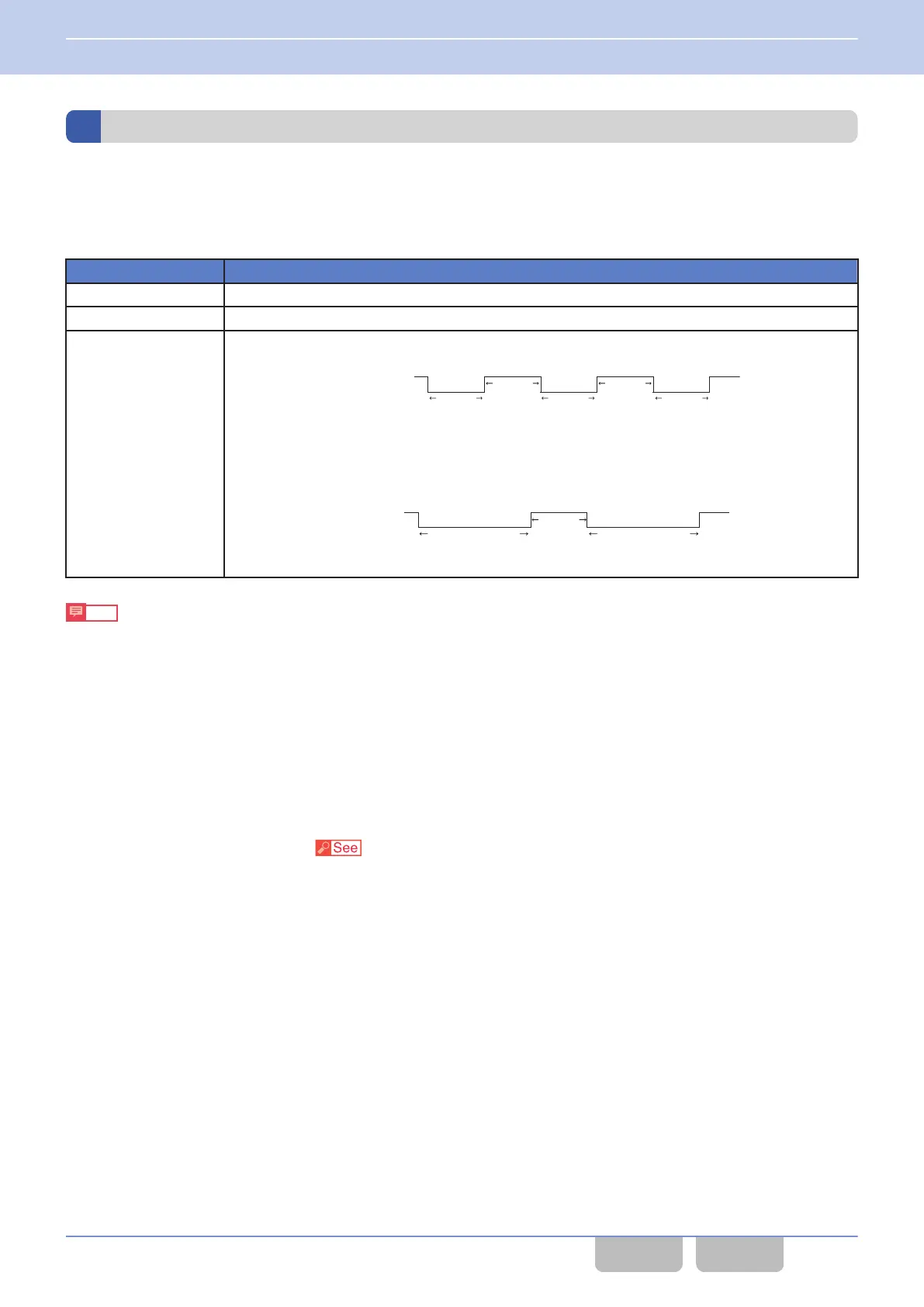

Table 12-2 Horn Alert Logic Signal
Configuration Description
Until Reset The Horn Alert port remains active until the matching status of Optional Signaling is reset.
1 sec to 30 sec The Horn Alert port remains active for configured amount of time.
Pulse
The Horn Alert port is activated 3 times at 500 ms intervals.
500 ms
500 ms
500 ms
500 ms
500 ms
Inactive
Active
Figure 12-1 Pulse
Only when a Fix ID is received, the Horn Alert port becomes active for 1 sec, subsequently
becomes inactive for 500 ms, and then becomes active for 1 sec again.
500 ms
1 sec 1 sec
Inactive
Active
Figure 12-2 Pulse (Fix ID)
Note
0
The Horn Alert port is not deactivated even if the amount of time configured in Horn Alert Logic Signal is longer than
the
amount of time configured in Auto Reset Timer. The Horn Alert port is deactivated when the amount of time configured
in Horn Alert Logic Signal elapses.
0
Operating one of the following while Horn Alert is functioning deactivates Horn Alert:
0
When the Horn Alert key is pressed (the Horn Alert is disabled)
0
When the state of the microphone hook is changed
0
When a key is pressed
Configuration using KPG-D1/ D1N
Configuring Horn
Alert Logic Signal (
Transceiver Settings > Optional Features > Optional Features 1 > Horn Alert)
12 FUNCTIONS LINKED TO A VEHICLE
12.2 Controlling Vehicle Operation According to the State of the Horn Alert Port (Horn Alert)
Common FUNC (K, F)/Ver 2.20 232
