Kenwood NX-5200K3 Common Function Reference

The following is the procedure to write the firmware if 3 RF Decks are used:
1
Make the system in a Single RF Deck/ Single Control Head structure.
Combination of Remote Kits varies depending on the type of Control Head.
RF Deck
(N X-5*00)
RF Deck
(N X-5*00)
KRK-15B KRK-15B
KRK-14H
Basic Panel
(KCH-19)
Featured
Panel
(KCH-20R)
Remote Kit for RF
KCT-71
Remote Kit for Head
Remote Kit for RF
Basic Panel (KCH-19) Featured Panel (KCH-20R)
KCT-71

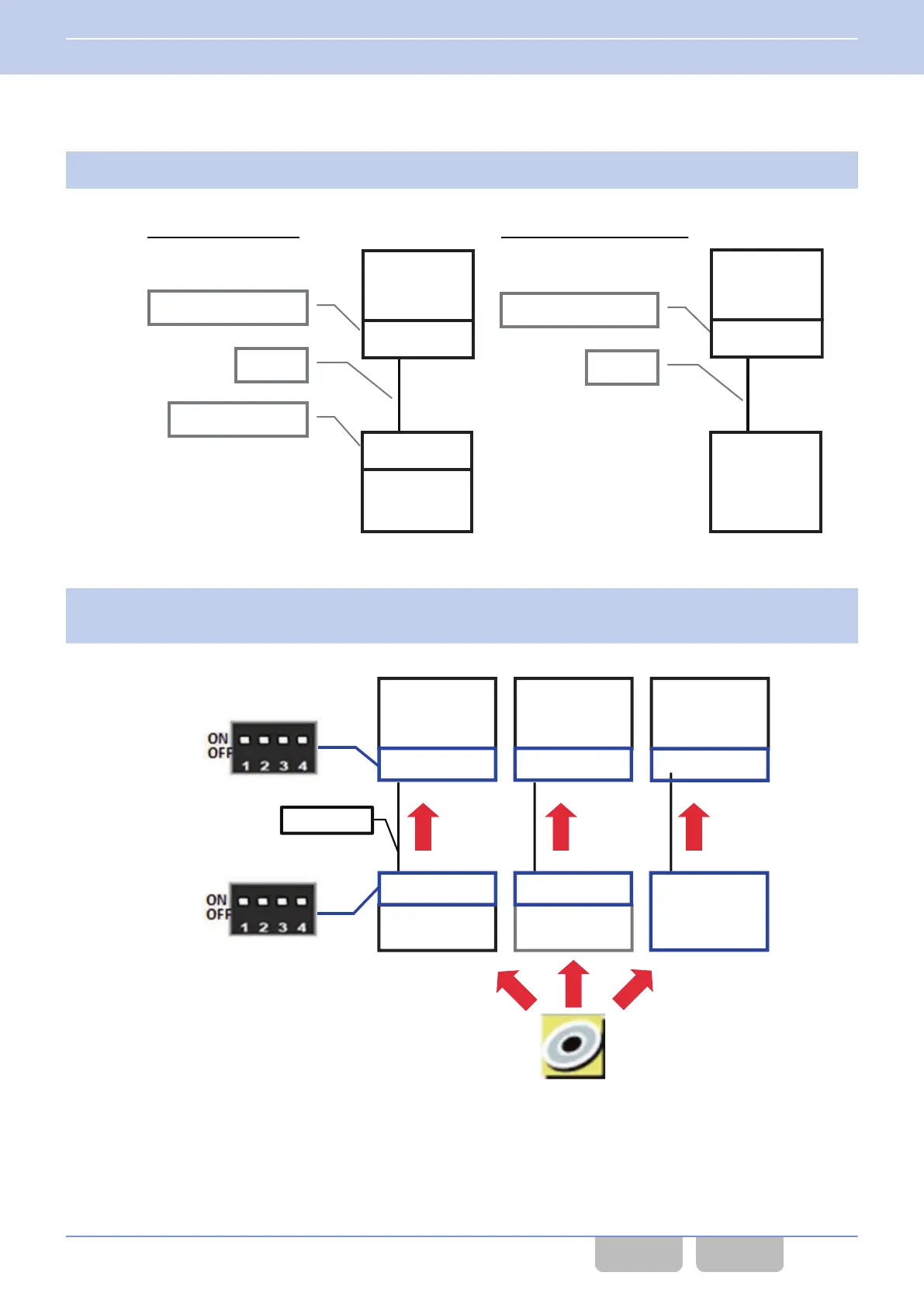

Figure 16-3 Single RF Deck/ Single Control Head
2
Write the firmware of version 1.60.00 or later to each RF Deck with the Control Heads and RF Decks
connected.
The firmware is written to the Control Heads and RF Decks.
RF Deck
(N X-5*00)
KCT-71
KRK-15B
Basic Panel
(KCH-19)
Featured
Panel
(KCH-20R)
KRK-14H
KRK-15B
Dip SW
KRK-14H or KCH-20R
Dip SW
RF Deck
(N X-5*00)
RF Deck
(N X-5*00)
KRK-15B KRK-15B
Basic Panel
(KCH-19)
KRK-14H
KFL
Figure 16-4 Writing the Firmware
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.4 Configuring the Initial Configuration
Common FUNC (K, F)/Ver 2.20 250
CONTENTS INDEX
