The switch status configured in each hardware structure
The following is the switch status configured in each hardware structure:

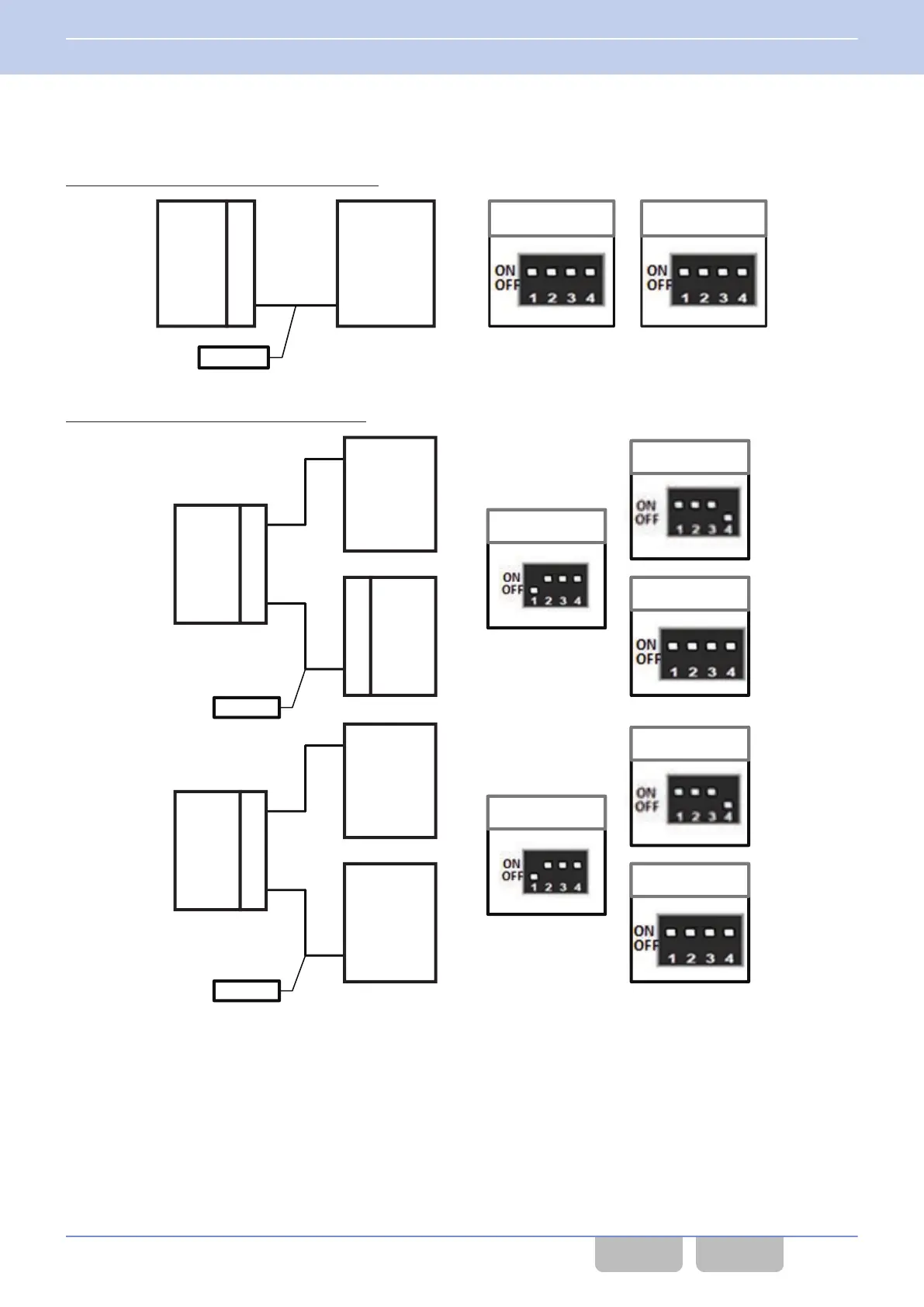

Case 1: Single RF Deck/ Single Control Head
KRK-15B
Control Head 1
(KCH-20R)
(RF Deck 1) (Control Head 1)
KCT-71
KRK-15B KCH-20R
RF Deck 1
(NX-5*00)
Figure 16-18 Case 1: Single RF Deck/ Single Control Head
Case 2: Single RF Deck/ Dual Control Head
RF Deck 1
(NX-5*00)
KRK-15B
RF Deck 1
(NX-5*00)
KRK-15B
KRK-14H
Control Head 2
Control Head 1
(KCH-20R)
Control Head 2
(KCH-20R)
(KCH-19)
Control Head 1
(KCH-20R)
KCT-71
KCT-71
(RF Deck 1)
KRK-15B
(RF Deck 1)
KRK-15B
(Control Head 2)
KCH-20R
(Control Head 2)
KCH-20R
(Control Head 1)
K
CH
-20R
(Control Head 1)
KRK-14H
Figure 16-19 Case 2: Single RF Deck/ Dual Control Head
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.4 Configuring the Initial Configuration
Common FUNC (K, F)/Ver 2.20 260
