Case 3: Unselected RF Deck with Bluetooth
If a Bluetooth headset is connected to an Unselected RF Deck, pressing the PTT switch of the Bluetooth headset enables
the Mic Line of the Bluetooth headset regardless of the Modulation Line configuration.

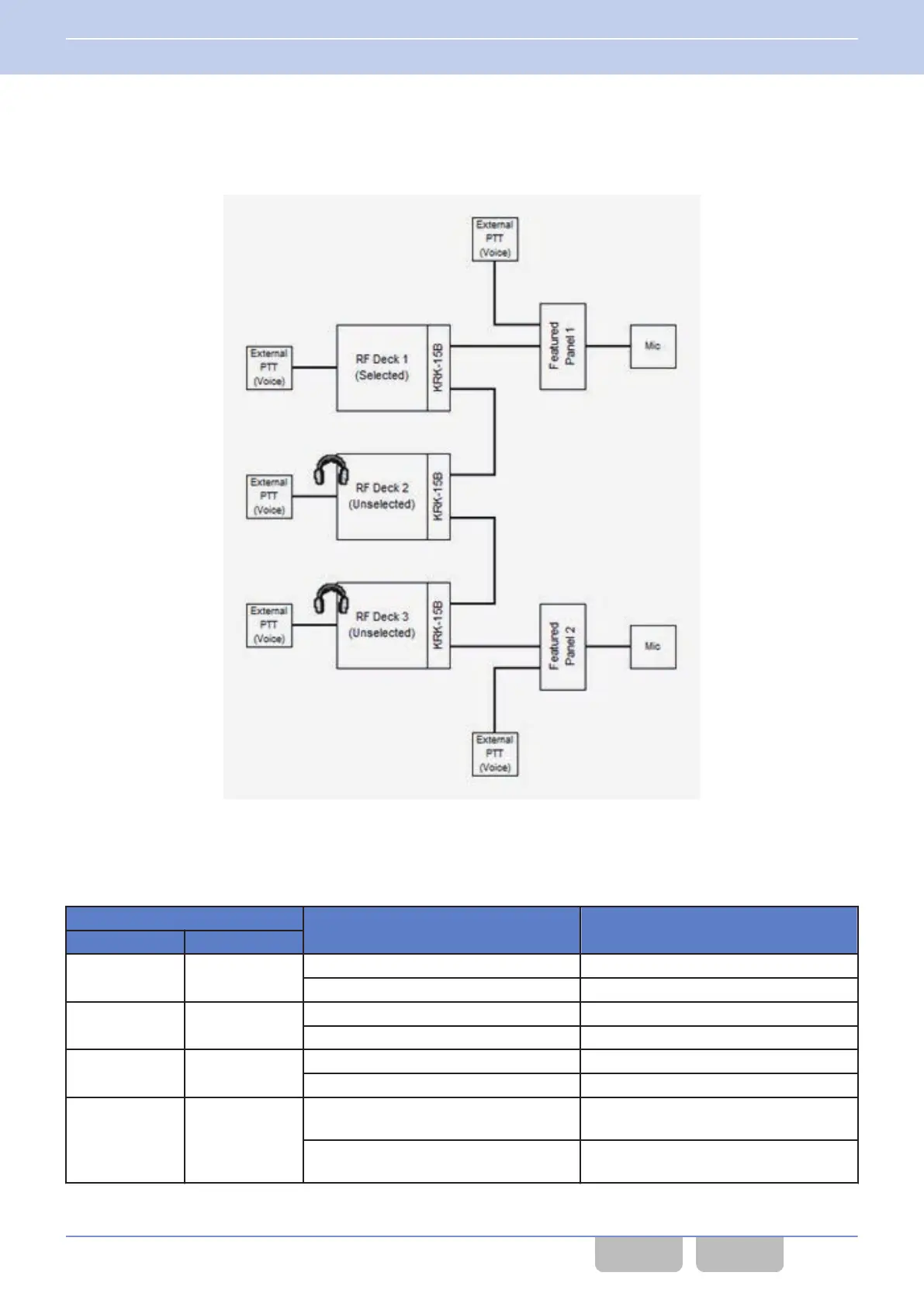

Figure 16-37 Case 3: Unselected RF Deck with Bluetooth
The
Modulation Line configuration of the Mic PTT of KPG-D1/ D1N and the Mic Lines enabled when the PTT (microphone)
switch of Control Head 1 or Control Head 2 is pressed are as follows:
Table 16-6 Mic Line (Mic PTT) (Unselected RF Deck with Bluetooth)
Modulation Line Setting
Operation Mic Input
Mic Line MI2 Line
Disconnect Disconnect
Control Head 1 - [PTT] None
Control Head 2 - [PTT] None
Connect Disconnect
Control Head 1 - [PTT] Control Head 1 - Mic Line
Control Head 2 - [PTT] Control Head 2 - Mic Line
Disconnect Connect
Control Head 1 - [PTT] Selected RF Deck - MI2 Line
Control Head 2 - [PTT] Selected RF Deck - MI2 Line
Connect Connect
Control Head 1 - [PTT]
Control Head 1 - Mic Line
Selected RF Deck - MI2 Line
Control Head 2 - [PTT]
Control Head 2 - Mic Line
Selected RF Deck - MI2 Line
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.6 Modulation Line
Common FUNC (K, F)/Ver 2.20 275
