Case 4: Featured Panel with Bluetooth
If
a Bluetooth headset is connected to Featured Panel 1, pressing the PTT switch of the Bluetooth headset enables the Mic
Line of the Bluetooth headset regardless of the Modulation Line configuration.

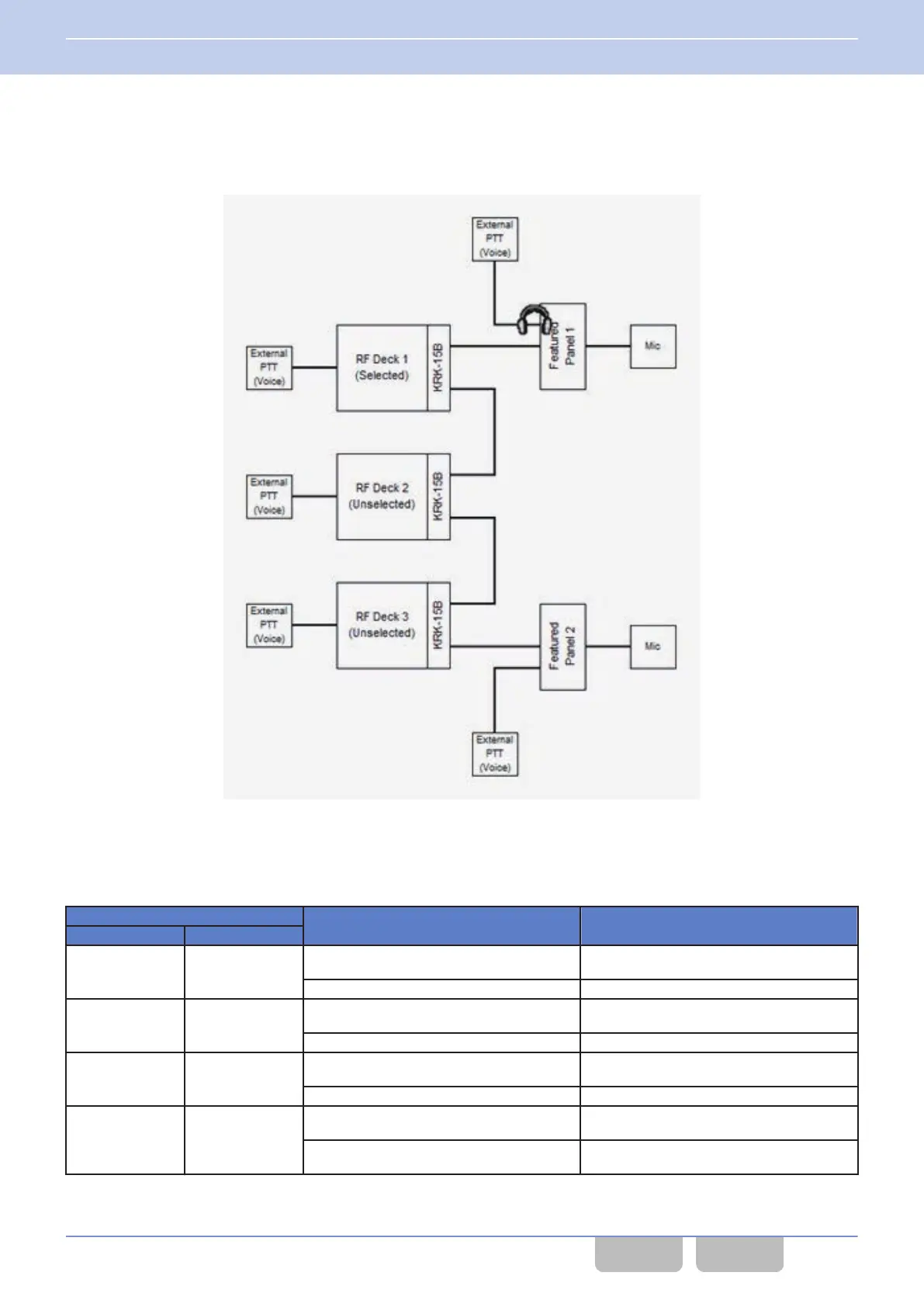

Figure 16-38 Case 4: Featured Panel with Bluetooth
The
Modulation Line configuration of the Mic PTT of KPG-D1/ D1N and the Mic Lines enabled when the PTT (microphone)
switch of Control Head 1 or Control Head 2 is pressed are as follows:
Table 16-8 Mic Line (Mic PTT) (Featured Panel with Bluetooth)
Modulation Line Setting
Operation Mic Input
Mic Line MI2 Line
Disconnect Disconnect
Control Head 1 - [PTT]
The Mic Line of the Bluetooth-compatible
device
Control Head 2 - [PTT] None
Connect Disconnect
Control Head 1 - [PTT]
The Mic Line of the Bluetooth-compatible
device
Control Head 2 - [PTT] Control Head 2 - Mic Line
Disconnect Connect
Control Head 1 - [PTT]
The Mic Line of the Bluetooth-compatible
device
Control Head 2 - [PTT] Selected RF Deck - MI2 Line
Connect Connect
Control Head 1 - [PTT]
The Mic Line of the Bluetooth-compatible
device
Control Head 2 - [PTT]
Control Head 2 - Mic Line
Selected RF Deck - MI2 Line
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.6 Modulation Line
Common FUNC (K, F)/Ver 2.20 277
