Kenwood NX-5200K3 Common Function Reference

Muting the Speaker of a Control Head (Speaker 1-2 Mute)
Speaker 1-2 Mute is
the function to forcibly mute the output of the speaker of the other Control Head by key operations on
the connected Control Head 1 and Control Head 2. The function is for Dual Control Head. This function limits Control Heads
that can emit the received audio of the Selected RF Deck and enhances the private communications of the other Control
Head.
Speaker 1 indicates the speaker of Control Head 1. Speaker 2 indicates the speaker of Control Head 2.
Speaker 1-2 Mute can be toggled between on and off by any of the following key operations:
1. Pressing the Speaker 1-2 Mute key toggles Speaker 1-2 Mute between on and off.
2. Entering Menu Mode by pressing the Menu key, and then executing “Speaker 1-2 Mute” can toggle Speaker 1-2
Mute between on and off.
Audio Reception
is pressed. Mute
Audio ReceptionAudio ReceptionAudio Reception
Received Audio OutputReceived Audio Output
External
Speaker
RF Deck 1
(Selected RF
Deck)
KRK-15B
KRK-14H
Basic Panel
Mic Mic
KRK-14H
Basic Panel
KRK-15B KRK-15B
RF Deck 2
(Unselected RF
Deck)
RF Deck 3
(Unselected RF
Deck)
External
Speaker
External
Speaker
Received Audio Output

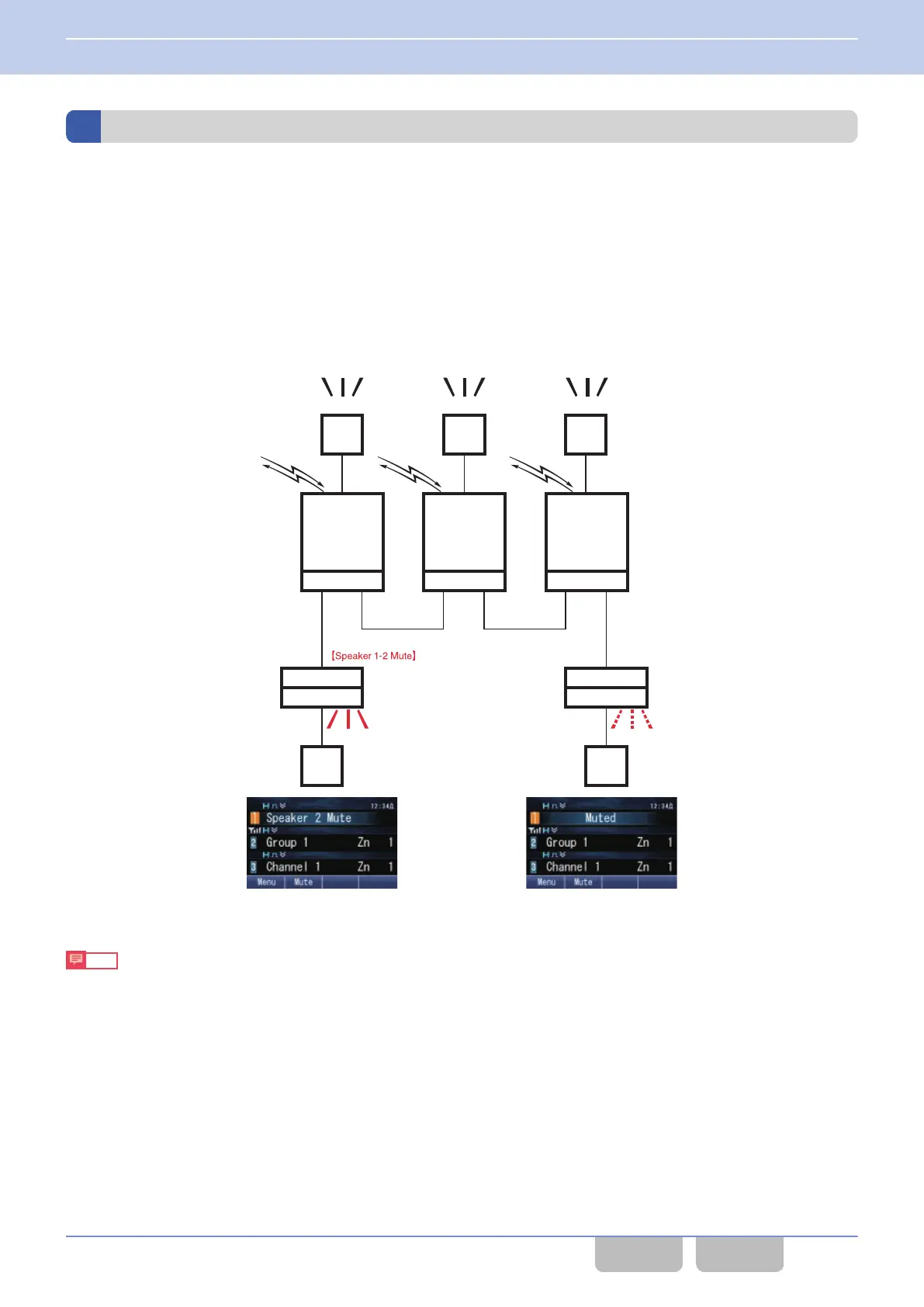

Figure 16-45 Speaker 1-2 Mute
Note
0
If Transmit Audio Monitor
is enabled, audio is not emitted from the monitoring Control Head when Speaker 1-2 Mute
is toggled on.
0
Even if a Control Head is muted, transmitting by the other Control Head or receiving by an RF Deck can be confirmed
with the lighting of the Transmit/ Busy LED.
0
When Speaker 1-2 Mute is on, by operating a key other than the PTT switch or Hook on the Control Head with the function
toggled on, or by operating any key (including Volume Control) on the other Control Head, Speaker 1-2 Mute is toggled
off.
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.7 Audio Function
Common FUNC (K, F)/Ver 2.20 286
