Kenwood NX-5200K3 Common Function Reference

1.1
NX-5200/ NX-5300/ NX-5400
1
2
3
6
7
8
10
13
17 18
11
12
14
15
16
5
4
9
19
 Full Key Model  Standard Key Model
1
2
3
6
7
8
10
13
17
18
11
12
14
15
16
5
4
20
9

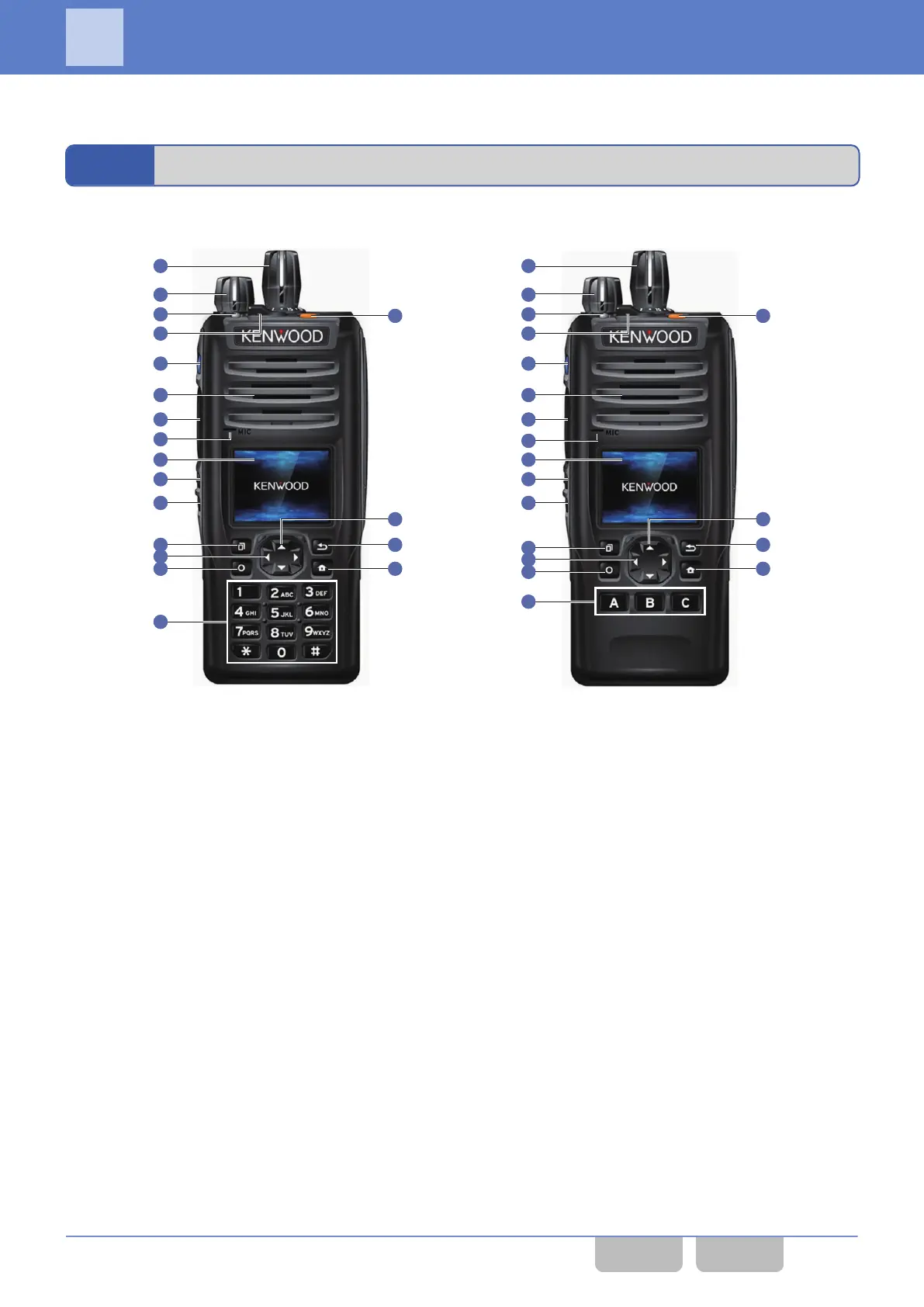

Figure 1-1 NX-5200/ NX-5300/ NX-5400 Front View
A
Selector
The preassigned function will be activated or will be
changed
to the active state. It is normally used to change
the zone or channel.
B
Power Switch/ Volume Control
The transceiver can be turned ON by rotating the Power
switch. The volume level of the speaker sound can be
adjusted.
C
Transmit LED/ Busy LED
These LEDs light when the transceiver transmits or
receives a signal.
D
AUX Key
The preassigned function will be activated or will be
changed to the active state.
E
Lever Switch
The preassigned function will be activated or will be
changed to the active state.
F
Side 1 Key
The preassigned function will be activated or will be
changed to the active state.
G
Speaker
The received audio and the Alert Tone sound from the
speaker.
H
PTT Switch
Pressing the PTT switch allows transmitting.
I
Built-in Microphone
J
LCD
The
channel number and the transceiver’s status appear
on this display.
K
Side 2 Key
The preassigned function will be activated or will be
changed to the active state.
L
Side 3 Key
The preassigned function will be activated or will be
changed to the active state.
M
[G]/ [H] Key
The preassigned function will be activated or will be
changed to the active state. It is normally used to change
the zone or channel.
N
[Q] (Menu) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [Q]
(Menu) key is described as the Menu ([Q]) key.
1 FUNCTIONS AND PANEL LAYOUT
1
FUNCTIONS AND PANEL LAYOUT
Common FUNC (K, F)/Ver 2.20 1
