Kenwood NX-5200K3 Common Function Reference

Example of received audio output
The
transceiver emits the received audio as follows according to the combination of configurations in Multi RF Deck Audio
Output Type and External Speaker:
b If “Off” is configured in External Speaker:
0
When Single Audio Output is configured
The audio received by RF Deck 1 (Selected RF Deck) sounds from the speaker of the Control Head.
External
Speaker
RF Deck 1
(Selected RF
Deck)
KRK-15B
KRK-14H
Basic Panel
Mic Mic
KRK-14H
Basic Panel
KRK-15B KRK-15B
RF Deck 2
(Unselected RF
Deck)
RF Deck 3
(Priority: 1)
(Priority: 2)
(Priority: 3)
(Unselected RF
Deck)
A
udio Reception
Received Audio Output
Received Audio Output
Audio Reception Audio Reception

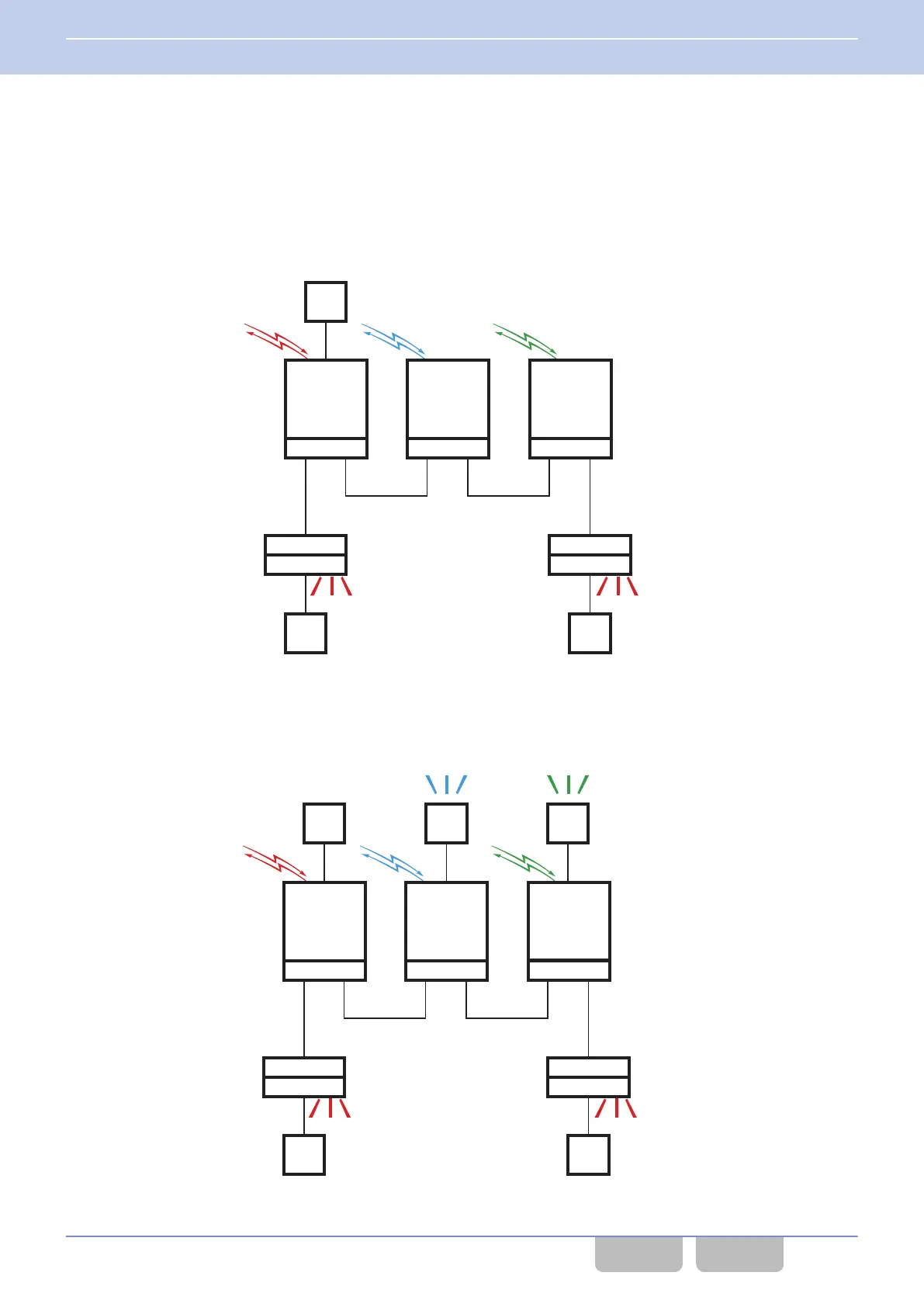

Figure 16-47 Single Audio Output (External Speaker = Off)
0
When Multi Audio Output is configured
The audio received by RF Deck 1 (Selected RF Deck) sounds from the speaker of the Control Head.
External
Speaker
RF Deck 1
(Selected RF
Deck)
KRK-15B
KRK-14H
Basic Panel
Mic Mic
KRK-14H
Basic Panel
KRK-15B KRK-15B
RF Deck 2
(Unselected RF
Deck)
RF Deck 3
(Unselected RF
Deck)
External
Speaker
External
Speaker
A
udio Reception
Received Audio Output
Received Audio Output Received Audio Output
Received Audio Output
Audio Reception Audio Reception
Figure 16-48 Multi Audio Output (External Speaker = Off)
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.7 Audio Function
Common FUNC (K, F)/Ver 2.20 289
